Oracle Database Appliance Version 1 Front and Back Panels
Chapter2 • Overview of Oracle Database Appliance 47
Oracle Database Appliance Version 1 Back Panel

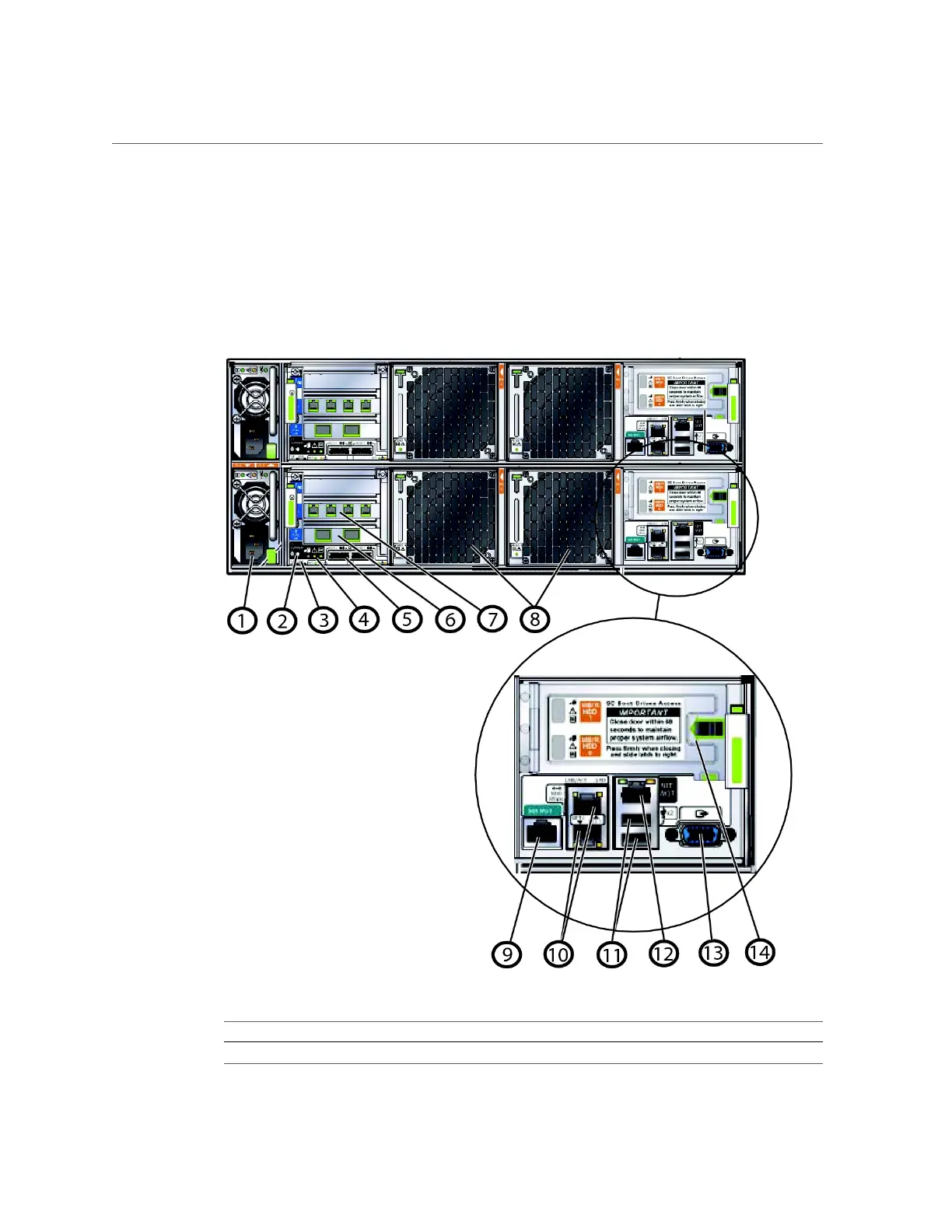

The following figure shows Oracle Database Appliance Version 1 back panel and identifies
the components on SN0. The components on SN1 are identical.
Callout Description Callout Description
1 Power Supply Unit (PSU) 8 Fans
