Oracle Database Appliance X6-2S/X6-2M/X6-2L Front and Back Panels
22 Oracle Database Appliance Owner's Guide • March 2017

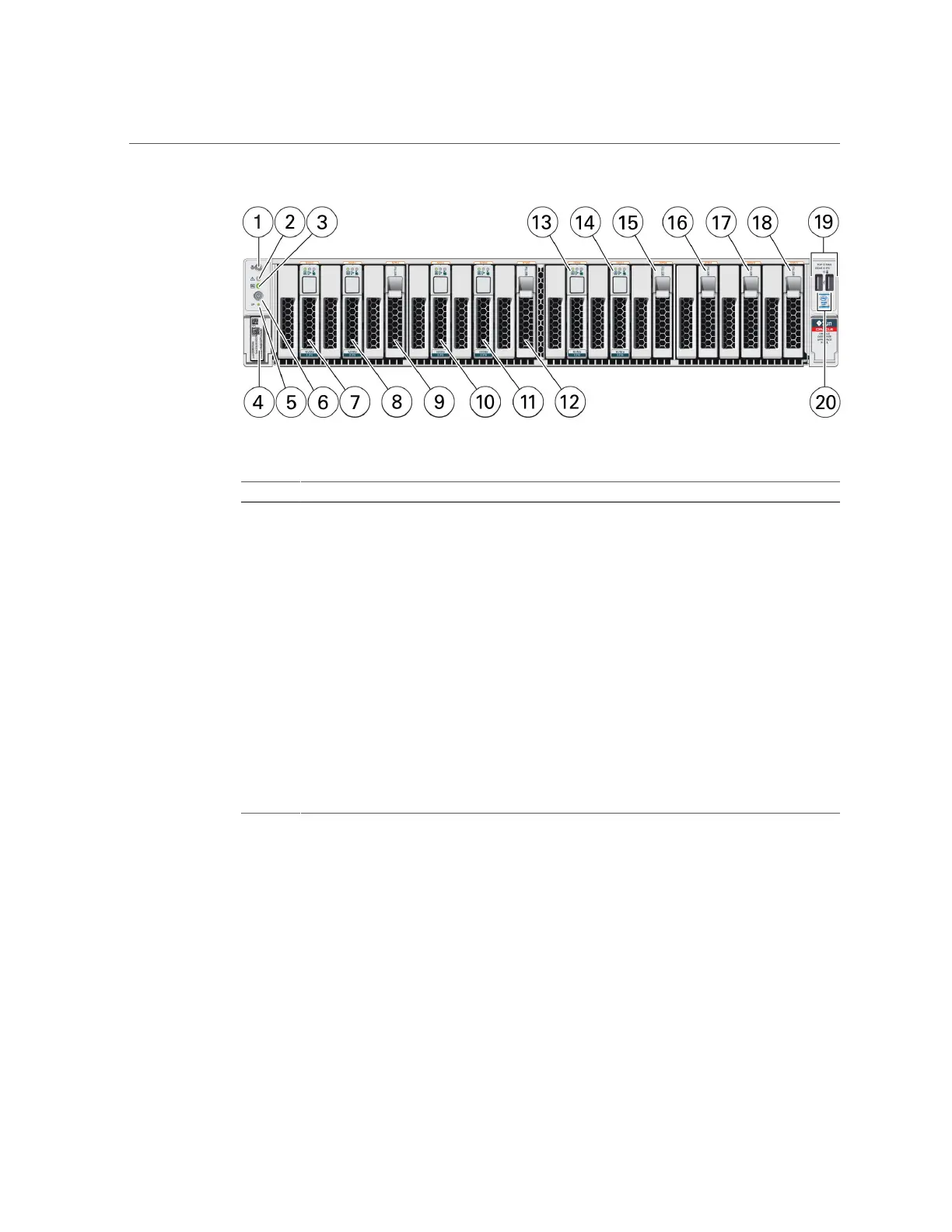

Callout Description Callout Description
1 Locate LED/button: white 6 Power button
2 Service Required LED: amber 7 - 15 NVMe0, NVMe1, NVMe2 (or HDD filler),
NVMe3, NVMe4, NVMe5 (or HDD filler),
NVMe6, NVMe7, NVMe8 (or HDD filler)
Note - Slots NVMe2 (callout 9), NVMe5
(callout 12) and NVMe8 (callout 15) are
available for storage expansion on base
configuration models. See “Optional
Component Installation” on page 58.
3 Power/OK LED: green 16 - 18 Slots NVMe9 - NVMe11
Note - These NVMe slots are not supported
for use with this product.
4 Product Serial Number (PSN) label and
Radio Frequency Identification (RFID) tag
19 Top Fan Fault LED: amber
Power Supply (PS) Fault LED: amber
System Over Temperature Warning LED:
amber
5 SP OK LED: green 20 USB 2.0 connectors (2)
Oracle Database Appliance X6-2L Back Panel
The following figure shows the components on the Oracle Database Appliance X6-2L back
panel.
