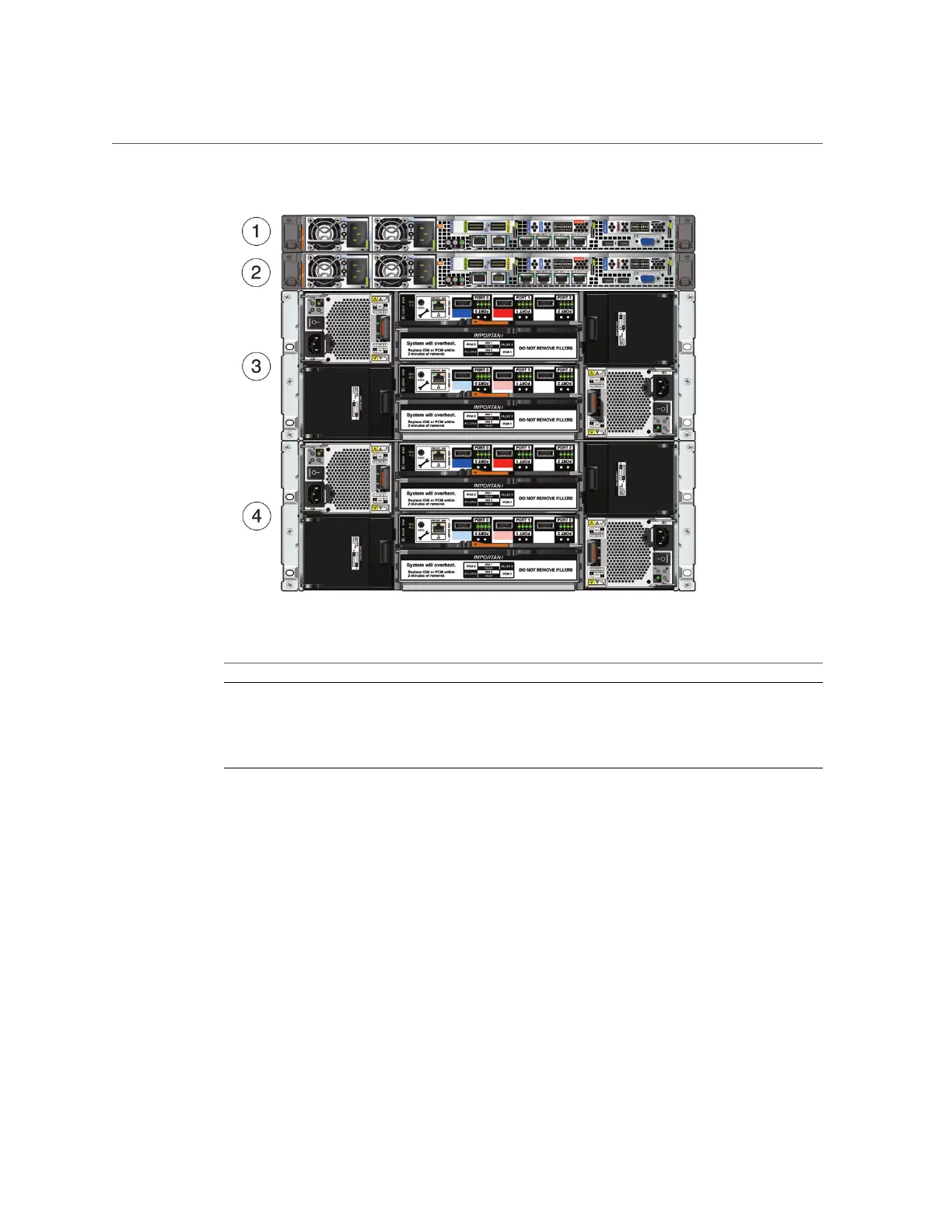

Oracle Database Appliance X5-2 Front and Back Panels
Chapter2 • Overview of Oracle Database Appliance 35
Callout Description
1 Server node 1
2 Server node 0
3 Storage shelf (DE2-24C)
4 Optional storage expansion shelf (DE2-24C)
Server Node Back Panel Features
The following figure shows the components on the Oracle Database Appliance X5-2 server
node back panel.
