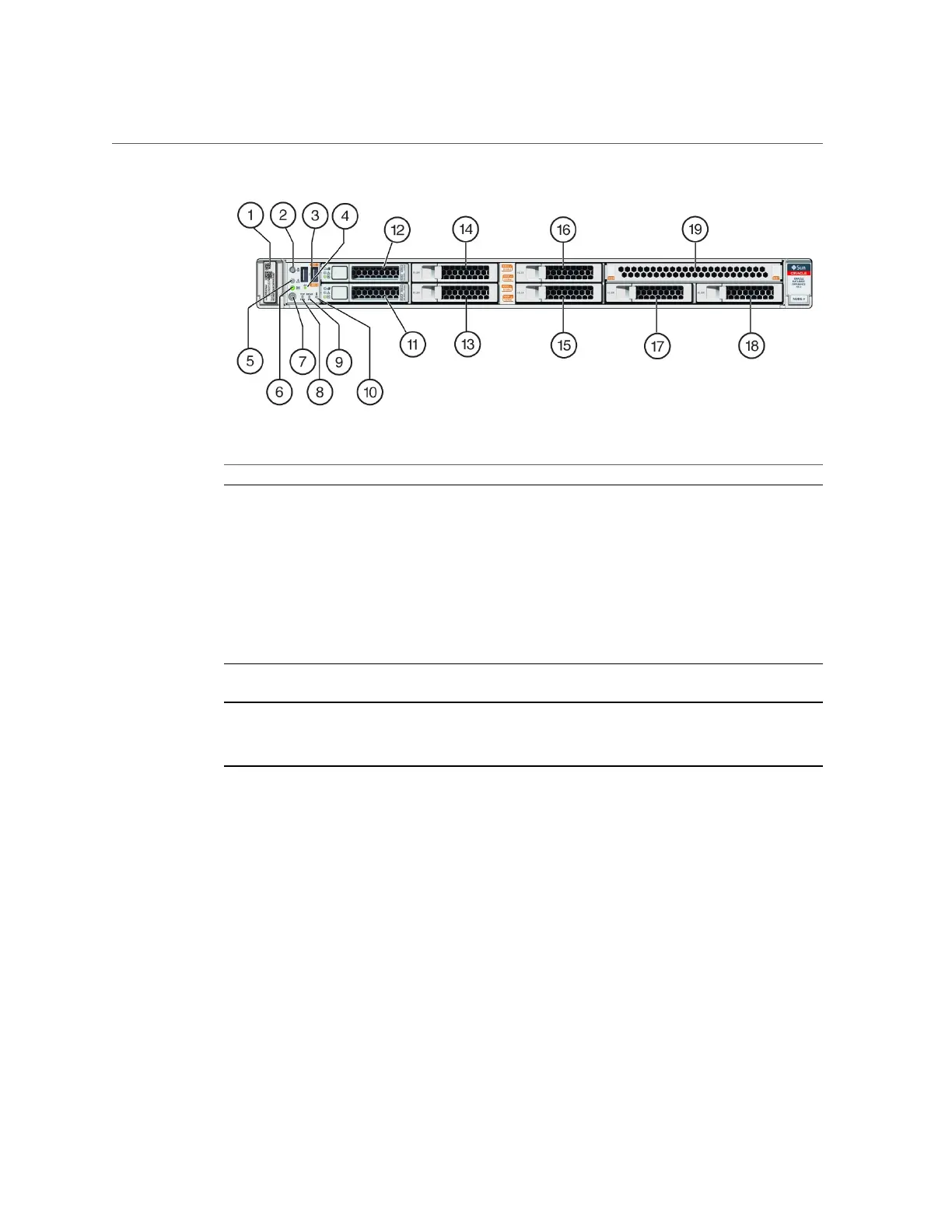

Oracle Database Appliance X5-2 Front and Back Panels
Chapter2 • Overview of Oracle Database Appliance 33
Callout Description Callout Description
1 Product Serial Number (PSN) label and
Radio Frequency Identification (RFID) tag
8 Fan Fault LED: amber
2 Locate LED/button: white 9 Power Supply (PS) Fault LED: amber
3 USB 2.0 connectors (2) 10 System Over Temperature Warning LED:
amber
4 SP OK LED: green 11 HDD 0 (boot drive)
5 Service Required LED: amber 12 HDD 1 (boot drive)
6 Power/OK LED: green 13 - 18 HDD filler
7 Power button 19 DVD filler
Note - When contacting Oracle Support Services, use the Top Level Identifier (TLI) instead of
the serial number. You can find the TLI by looking at the top of either server node or on the top
of the storage shelf. For details, see “Technical Support” on page 53.
Storage Shelf Front Panel Features
The following figure shows the Oracle Database Appliance X5-2 storage shelf front panel
features.
