Oracle Database Appliance X6-2-HA

Oracle Database Appliance X5-2 Front and Back Panels
32 Oracle Database Appliance Owner's Guide • March 2017

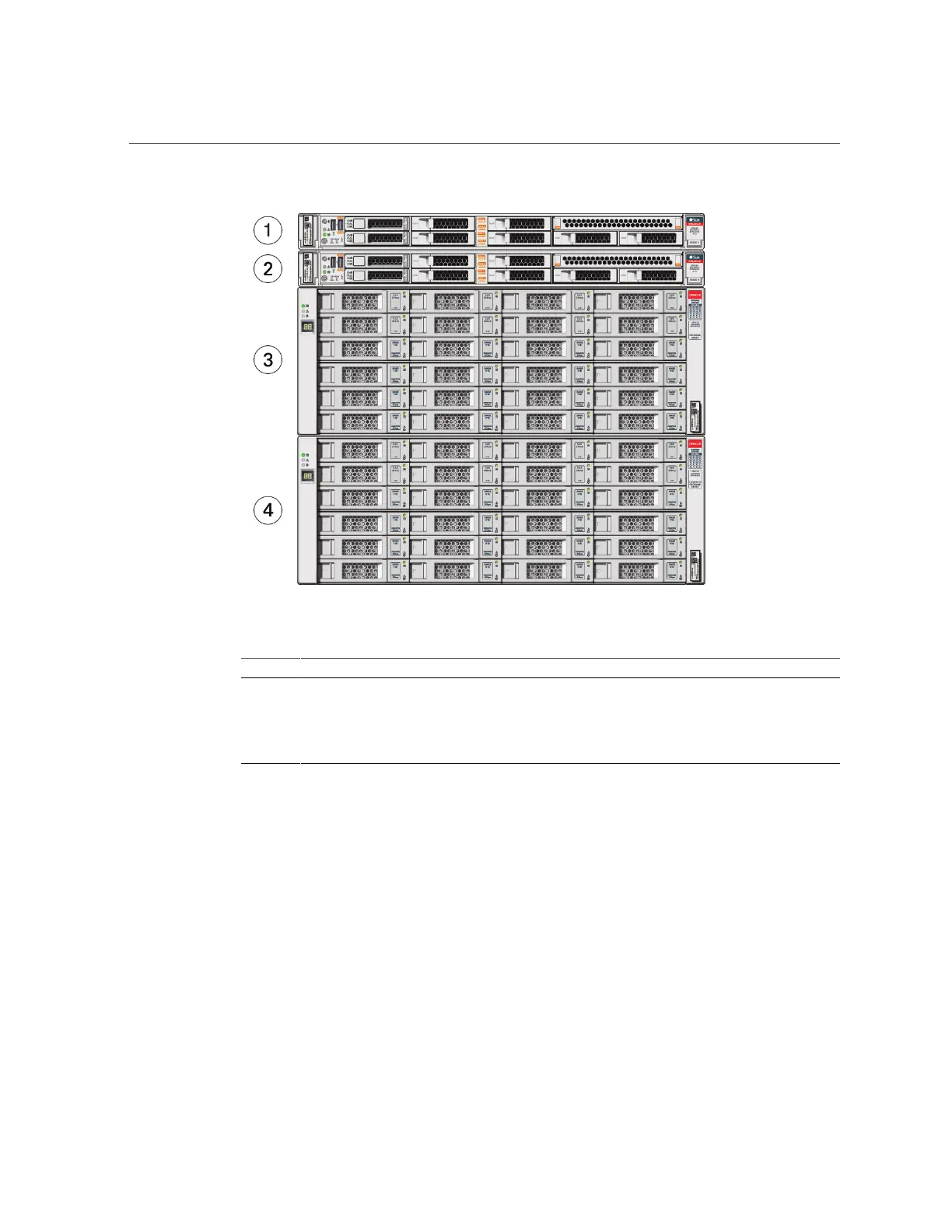

Callout Description
1 Server node 1
2 Server node 0
3 Storage shelf (DE2-24C)
4 Optional storage expansion shelf (DE2-24C)
Server Node Front Panel Features
The following figure shows the components on the front panel of an Oracle Database
Appliance X5-2 server node.
