Oracle Database Appliance X6-2-HA

To Apply Labels to Server Nodes and Storage Shelves
Chapter4 • Installing the System Into a Rack 69
■
Storage expansion shelf (optional): Apply this label to the bottom storage shelf, if one is
present [4].

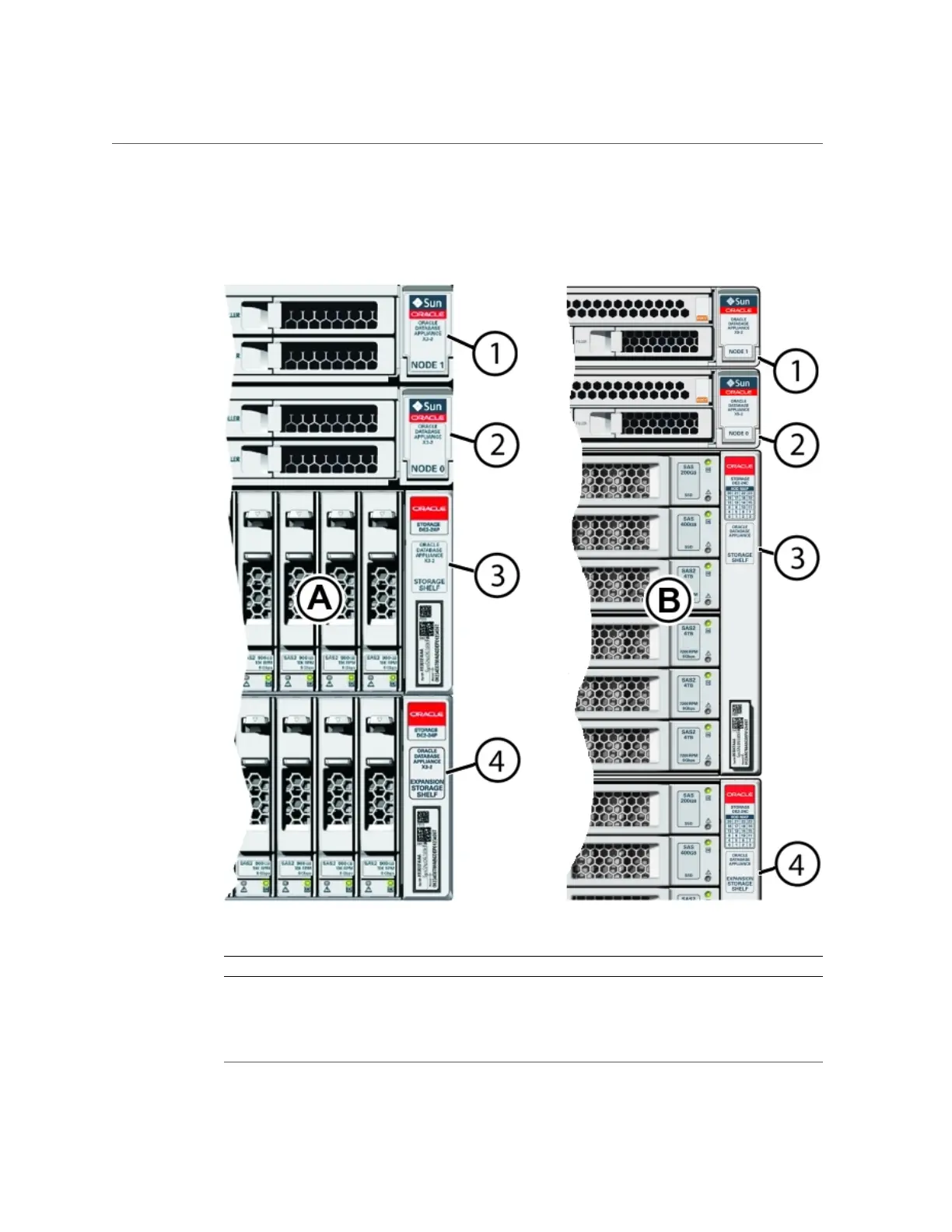

Callout Description
A Oracle Database Appliance X3-2 and Oracle Database Appliance X4-2
B Oracle Database Appliance X5-2 and Oracle Database Appliance X6-2-HA
1 Server node 1
2 Server node 0
