Install the Oracle Database Appliance X6-2-HA DE3-24C Storage Shelf Into a Rack
Chapter4 • Installing the System Into a Rack 75
a.
Use the template [2] to determine cage nut placement.
b.
Retrieve a cage nut and hook one lip of the nut into the appropriate rail hole
[1].
c.
Insert the tip of the cage nut insertion tool through the rail hole [3] and hook
the other lip of the cage nut. Pull the cage nut through the hole until the lip
snaps into place.
d.
Repeat through steps 5a through 5c for the second cage nut.
6.

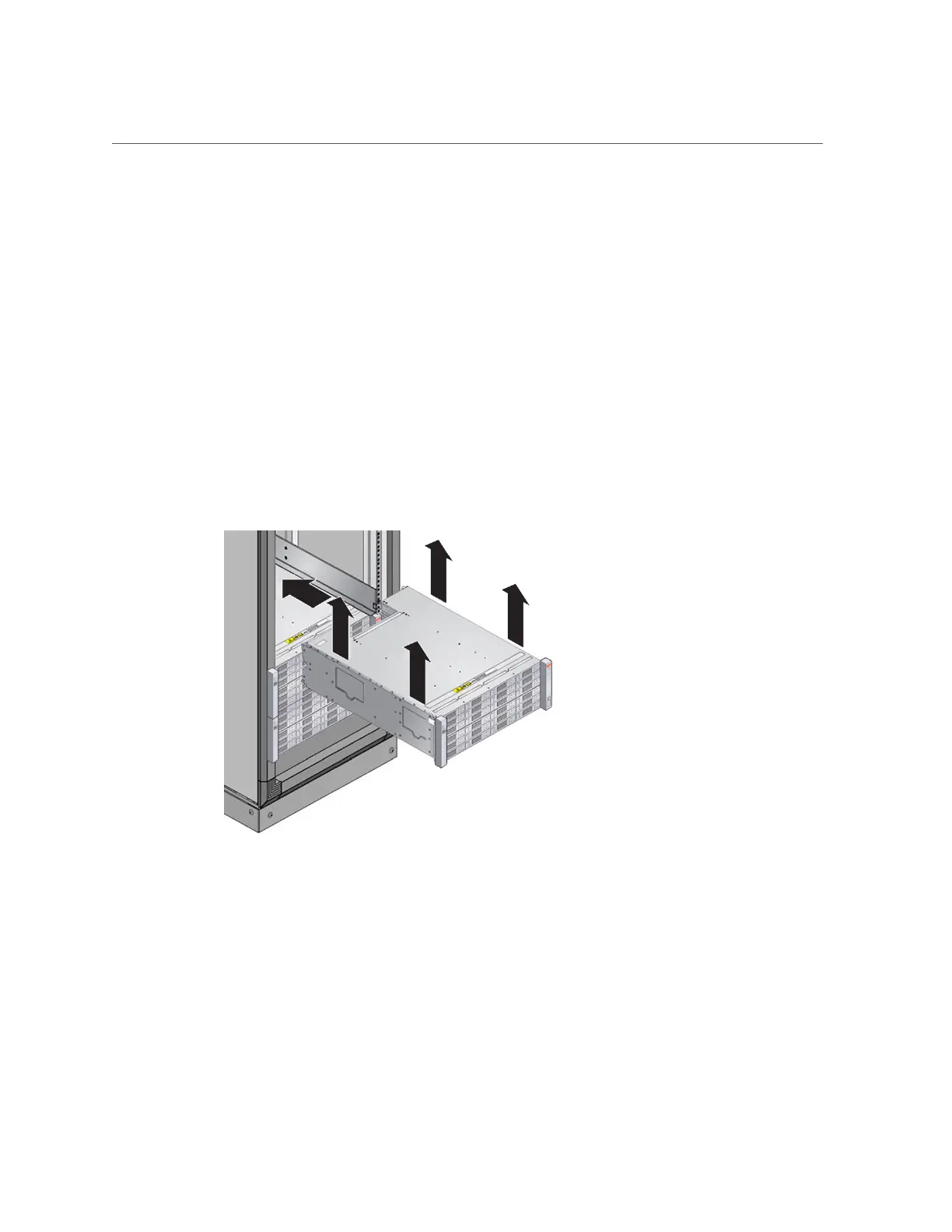

Using a mechanical lift or three people, one at each side of the storage shelf and
one in front, carefully lift and rest the shelf on the bottom ledge of the left and
right rails. Do not lift using the power supply handles.
7.
Carefully slide the shelf into the cabinet. Ensure that the shelf is fully seated
within the rails. If removing the shelf to reseat it, support it at all times.
