Install Rackmount Hardware Into a Rack
Chapter4 • Installing the System Into a Rack 99

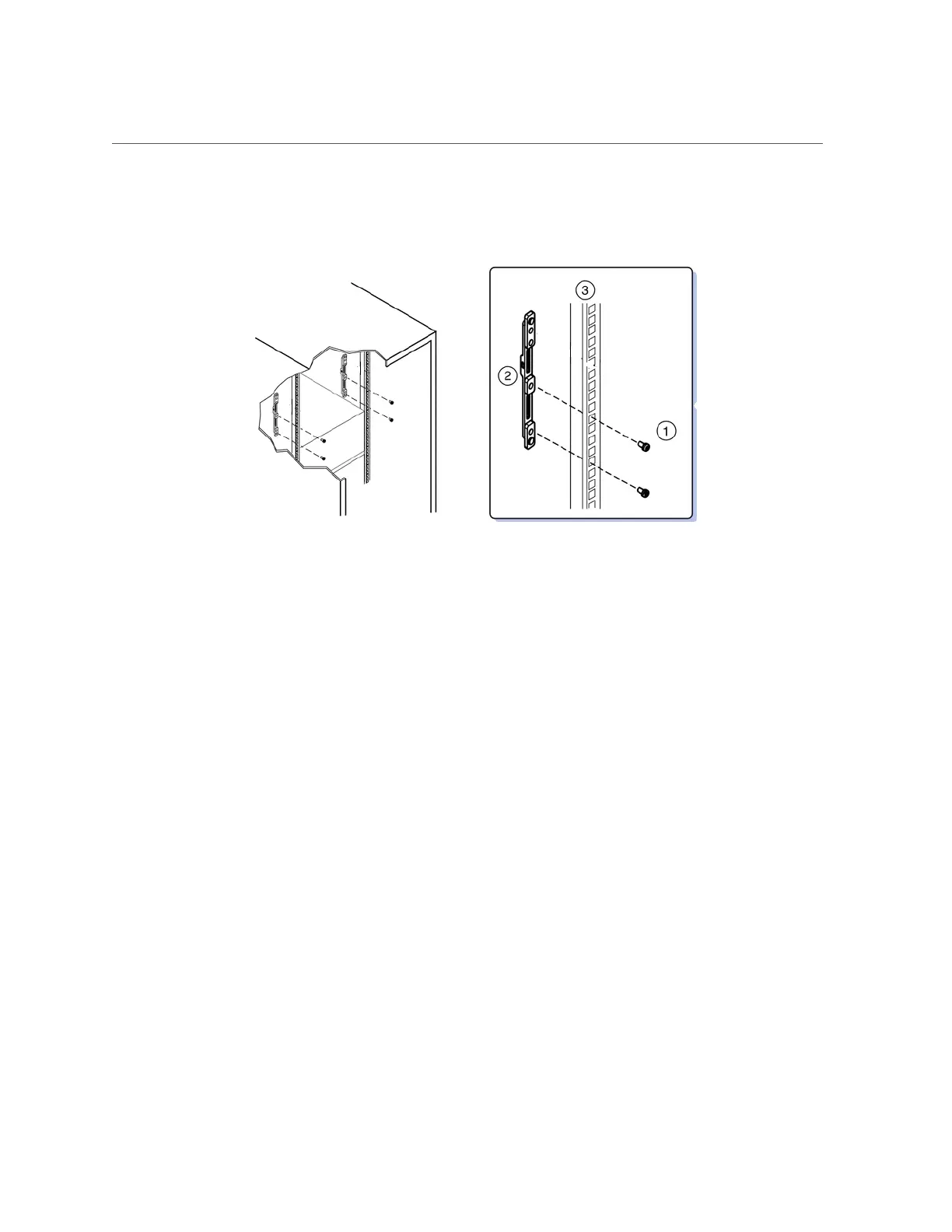

The following figure shows the rear adapter brackets being attached to a square-hole rack.
6.
Attach rear braces to the rear rack posts and to the adapter brackets.
a.
Position the rear braces so that the tops of the braces [1] align with the 4U
mark on each rear rack post.
