Front Panel Components
■
“Front Panel Components” on page 12
■
“Rear Panel Components” on page 13

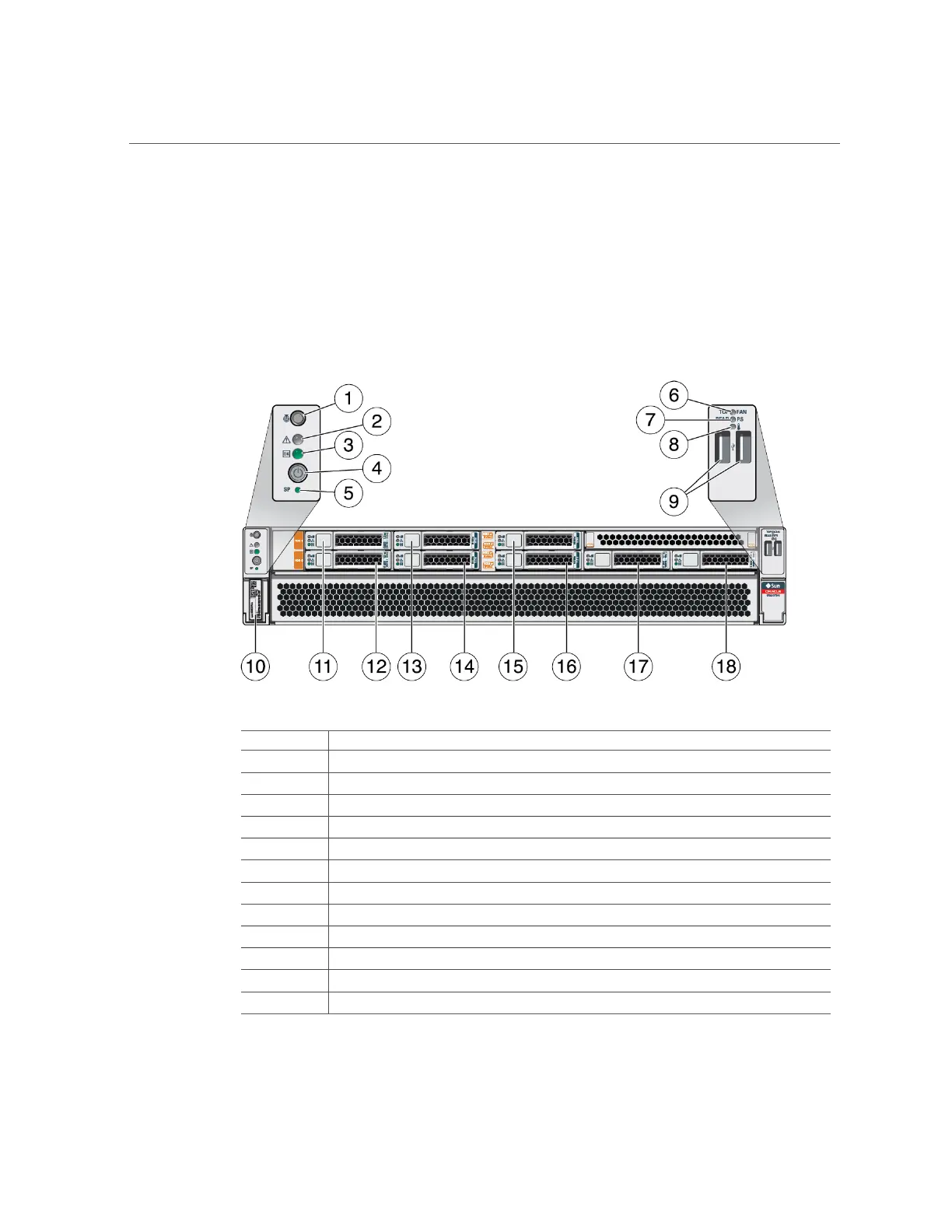

Front Panel Components
No. Description
1 System Server Locate indicator and button (white)
2 System Fault (Service Required) LED (amber)
3 System OK indicator (green)
4 Power button
5 SP OK indicator (green)
6 Fan Fault LED (amber)
7 PS fault LED (amber)
8 Overtemperature LED (amber)
9 USB 2.0 connectors (2)
10 Server serial number
11 Drive 1
12 Drive 0
12 SPARC T8-1 Server Installation Guide • June 2019
