Identifying Ports

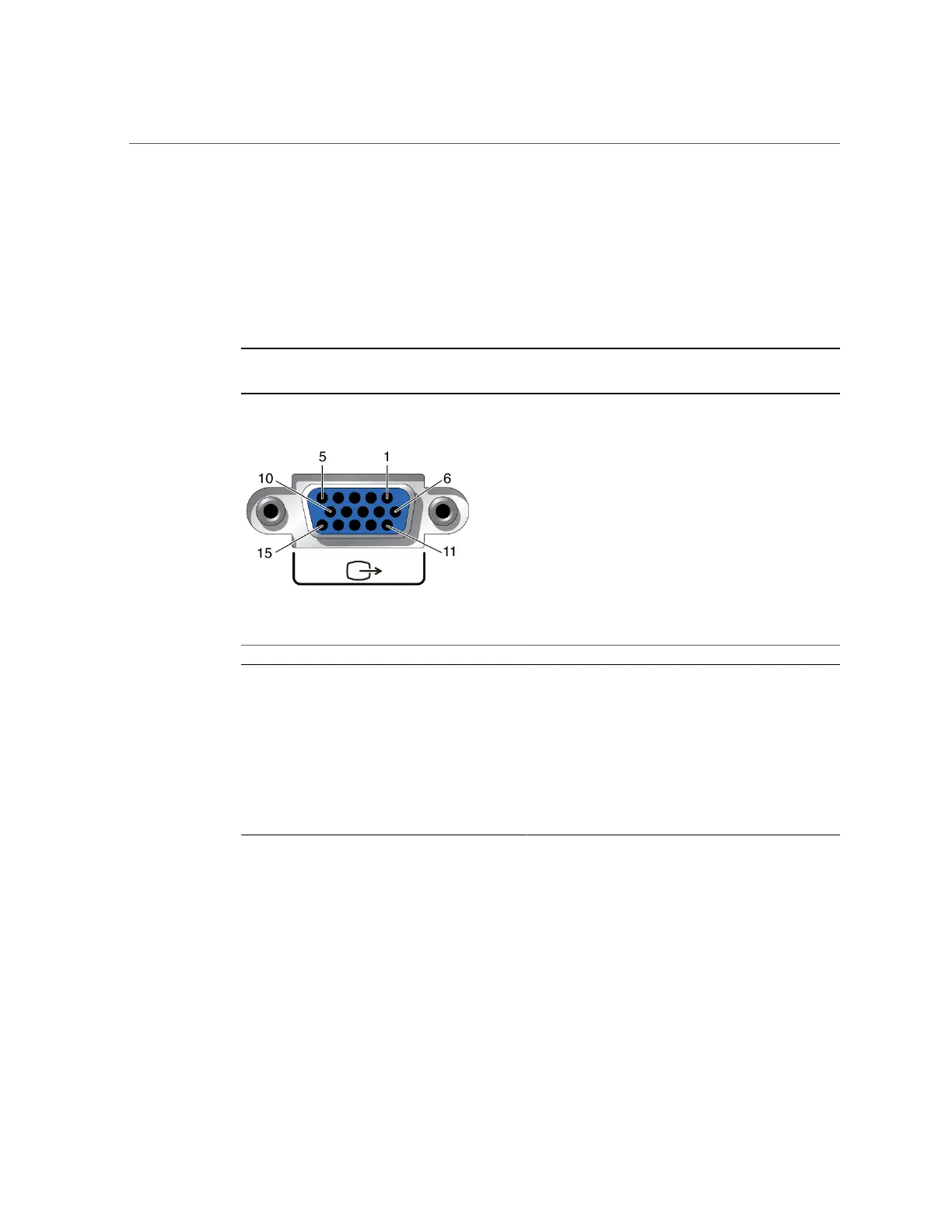

VGA Port
The server has one 15-pin VGA video port on the rear of the server. See “Rear Panel
Components” on page 13. Use a DB-15 video cable to connect to a video adapter to achieve the
required connection. Maximum supported resolution is 1024 x 768.
Note - The cable length used to connect between the monitor and the VGA port should not be
over 6 meters.
Pin Signal Description Pin Signal Description
1 Red Video 9 [KEY]
2 Green Video 10 Sync Ground
3 Blue Video 11 Monitor ID - Bit 1
4 Monitor ID - Bit 2 12 VGA 12C Serial Data
5 Ground 13 Horizontal Sync
6 Red Ground 14 Vertical Sync
7 Green Ground 15 VGA 12C Serial Clock
8 Blue Ground
SAS Ports
The eight SAS connectors are located on the drive backplane inside the server. Four of the
connectors also can be used by NVMe drives.
58 SPARC T8-1 Server Installation Guide • June 2019
