Attach the CMA to the Server

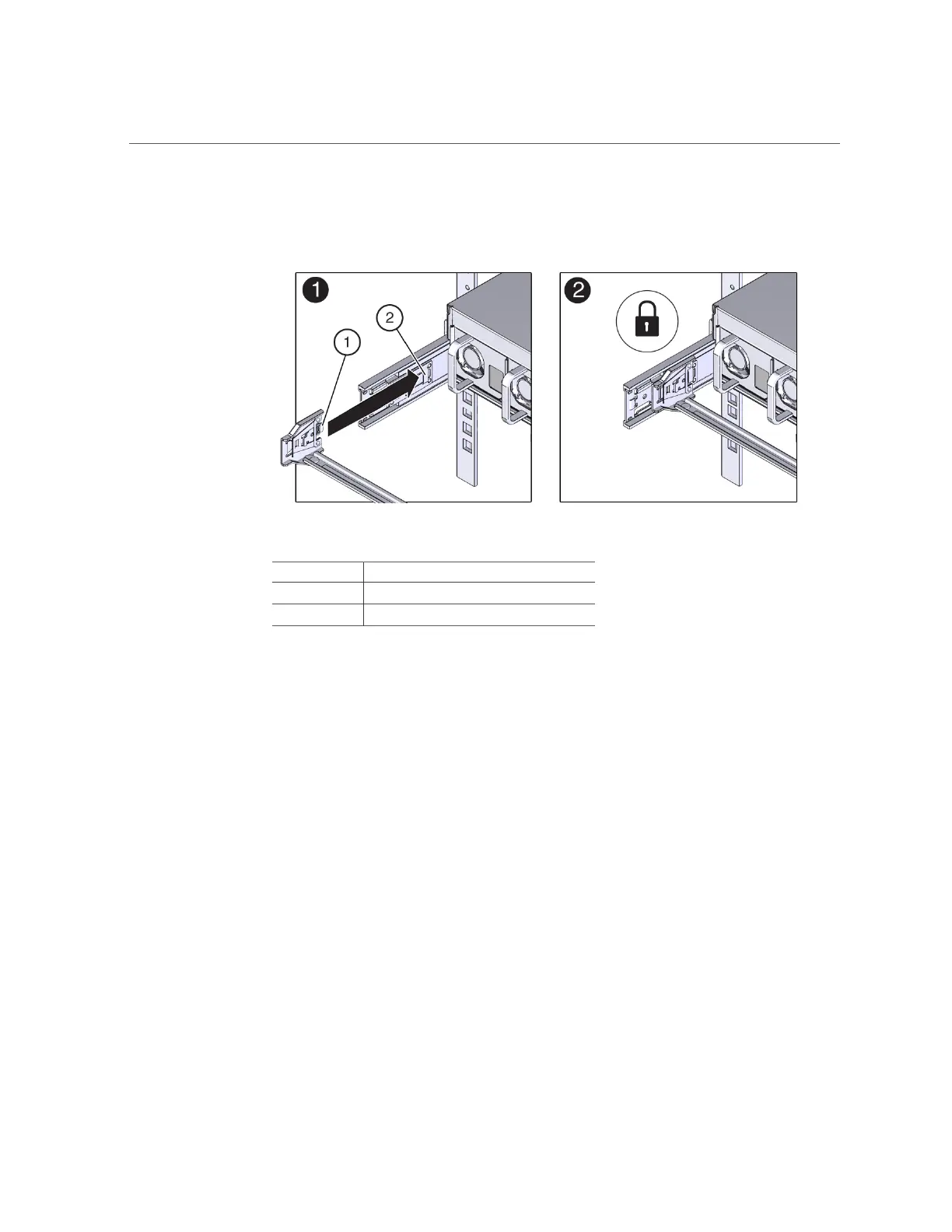

The connector A tab goes into the slide rail's front slot (panel 1).
No. Description
1 Connector A tab
2 Left slide rail front slot
b.
Gently tug on the right side of the front slide bar to verify that connector A is
properly seated.
5.
Install the CMA's connector B into the right slide rail.
a.
Insert the CMA's connector B into the front slot on the right slide rail until it
locks into place with an audible click (panels 1 and 2).
The connector B tab goes into the slide rail's front slot (panel 1).
42 SPARC T8-1 Server Installation Guide • June 2019
