Assembling and Installing DC Power Cables for the Sun SPARC Enterprise T5140 Server 85

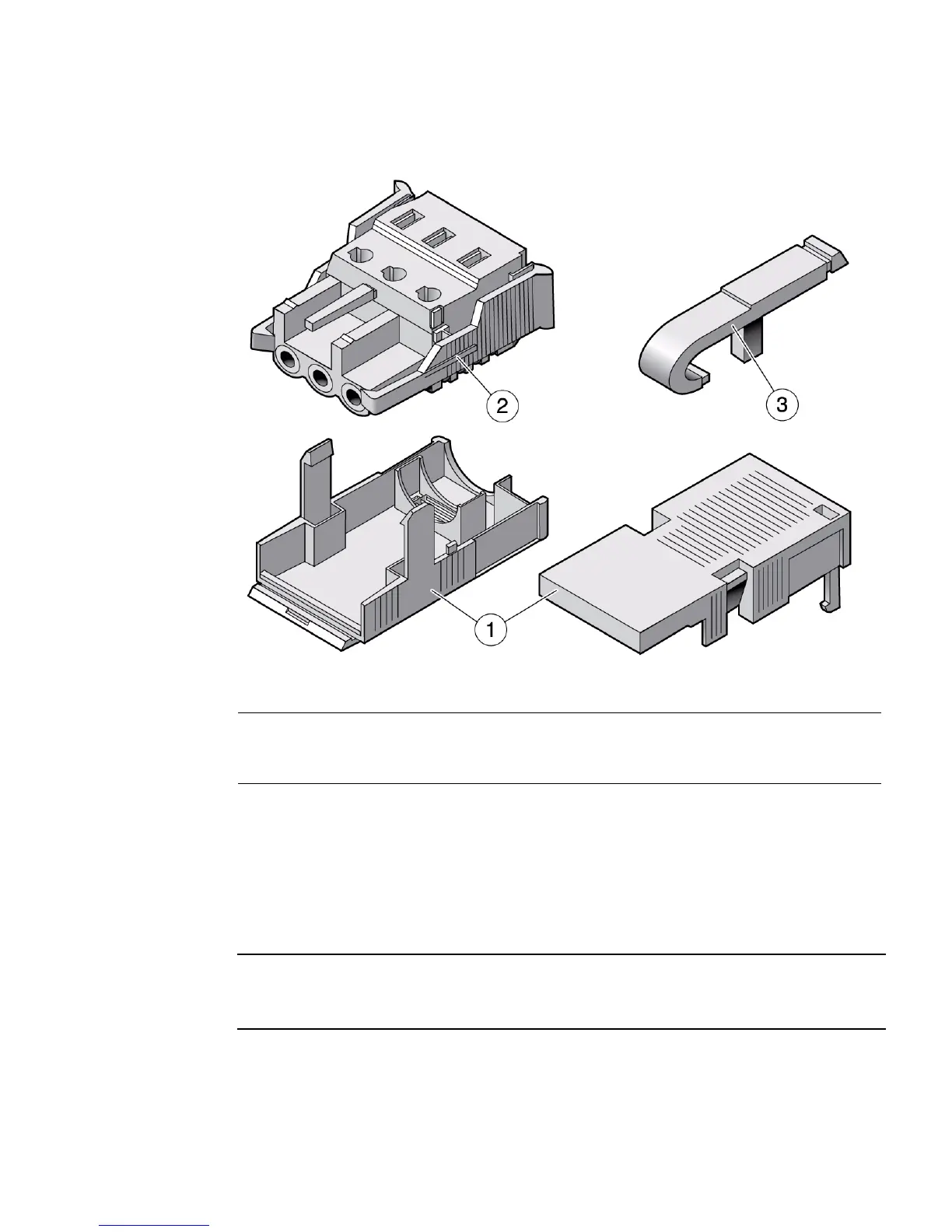

FIGURE: DC Connection Parts
3. Locate the three wires coming from the DC power source that will be used in
the connection to your unit:
■ -48V or -60V (negative terminal)
■ Chassis ground
■ -48V or -60V Return (positive terminal)
Note – Depending on the DC power source, the -48V or -60V (negative terminal)
might be marked with a minus (-) symbol. The -48V or -60V Return (positive
terminal) might be marked with a positive (+) symbol.
Figure Legend
1 Strain relief housing
2 DC input plug
3 Cage clamp operating lever
