Hardware Overviews
Figure Legend
1 Locator LED and button (white) 2 Service Required LED (amber) 3 Power/OK LED (green)
4 Power button 5 Service Processor (SP) OK LED
(green)
6 Fan/CPU/Memory Service
Required LED
7 Power Supply (PS) Service
Required LED
8 Over Temperature Warning LED 9 USB 2.0 Connectors
10 DB-15 video connector 11 Boot drive 0 (required) 12 Boot drive 1 (required)
13 Solid state drive 2 (optional) 14 Solid state drive 3 (optional) 15 Solid state drive 4 (optional)
16 Solid state drive 5 (optional)
The ZS3-4 controller has two 1.2TB or 900GB SAS-2 system boot drives in slots 0 and 1,
configured as a mirrored pair. Up to four 1.6TB SAS-2 Readzilla SSDs can fill slots 2 through
5, in order.

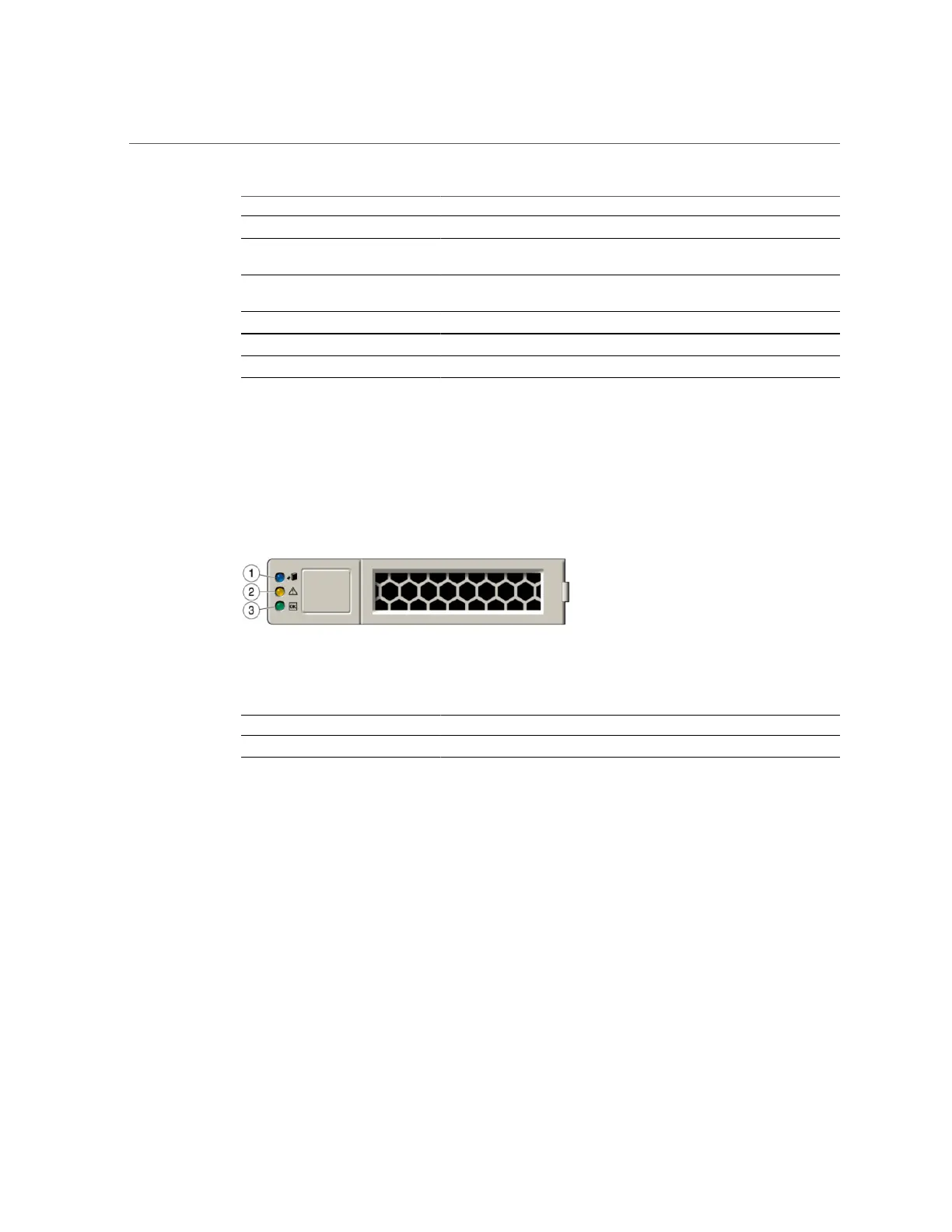

FIGURE 20
System Boot Drive LEDs
Figure Legend
1 Ready to remove (blue) 2 Service action required (amber) 3 OK/Activity (green)
ZS3-4 Rear Panel Components
The following graphic shows the rear panel of the ZS3-4 controller. Base configuration HBAs
are not depicted in this illustration.
For information about PCIe cards, see “ZS3-4 PCIe Options” in Oracle ZFS Storage Appliance
Customer Service Manual.
36 Oracle ZFS Storage Appliance Installation Guide • February 2016
