Hardware Overviews
CPU Memory Readzilla Boot Drive PCIe Slots HBA
2x8-core, 2.1
GHz
256GB
16x16GB
512GB
16x32GB
1-4 1.6TB
SAS-2 SSDs
Two 2.5-inch 1.2
TB or 900GB
SAS-2
Two dedicated;
four available
4-port (4x4)
SAS-2 6Gb/s
external
Refer to https://www.oracle.com/storage/nas/index.html for the most recent component
specification.
ZS3-2 Front Panel Components
The ZS3-2 controller drive slots and front panel components are shown in the following figure.
FIGURE 22

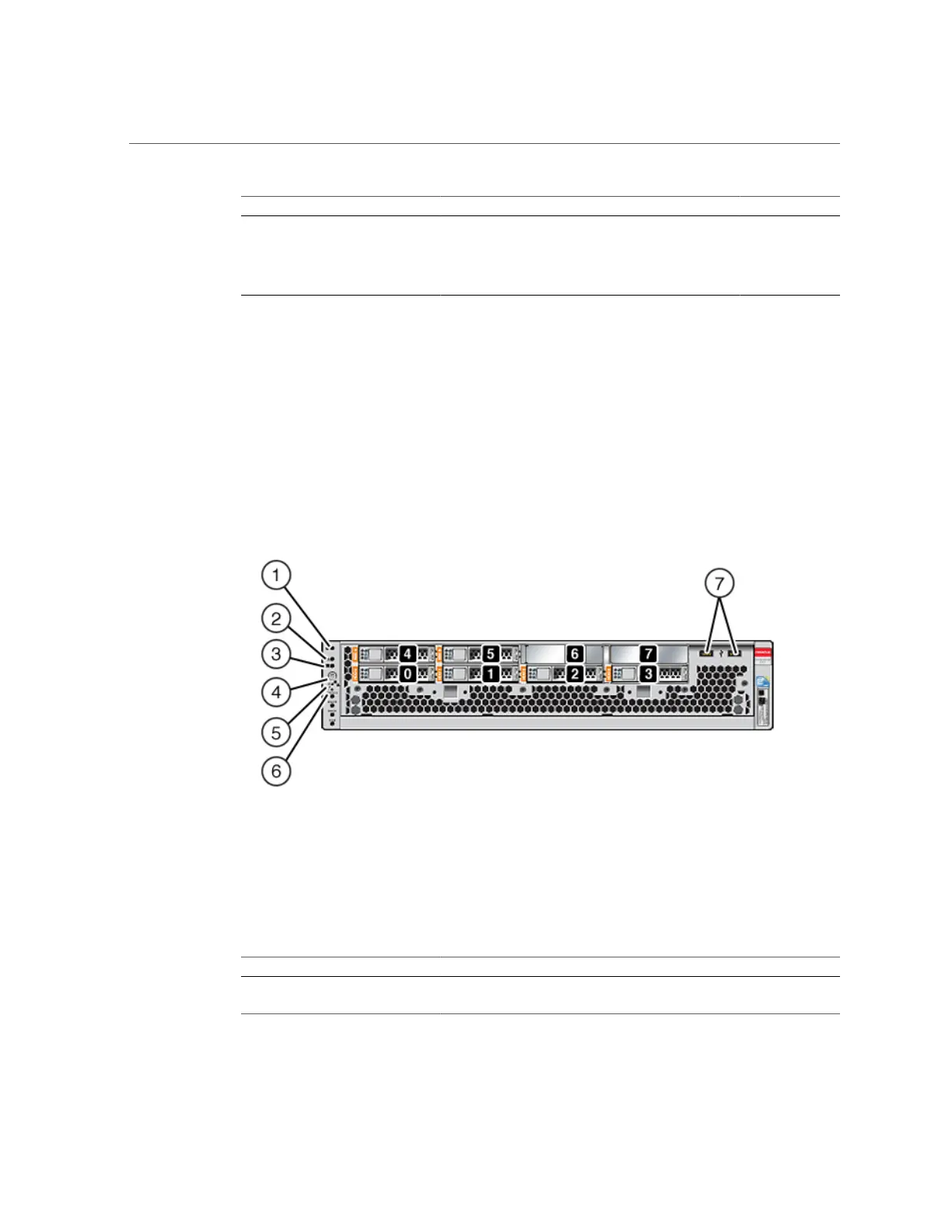

ZS3-2 Controller Front Panel
Drive slots 0 and 1 have two mirrored 1.2TB or 900GB SAS-2 boot drives. Up to four 1.6TB
flash read-optimized (Readzilla) solid state drives (SSDs) fill slots 2 through 5, in order. Slots 6
and 7 are empty and must contain drive fillers.
Figure Legend
1 Locator LED/button (white) 2 Service Action Required LED
(amber)
3 Power OK LED (green)
40 Oracle ZFS Storage Appliance Installation Guide • February 2016
