Hardware Overviews
Figure Legend
10 SP 15-pin VGA video port 11 Serial management port 12 Network management port
13 Alarm port, DB-15 connector 14-16 Cluster I/O ports 17 10-Gbit Ethernet ports
18 Chassis ground post
Note - The three Cluster I/O ports (0, 1, and GigE) are reserved for cluster interconnection only.
The ZS3-2 controller has the following ports:
■

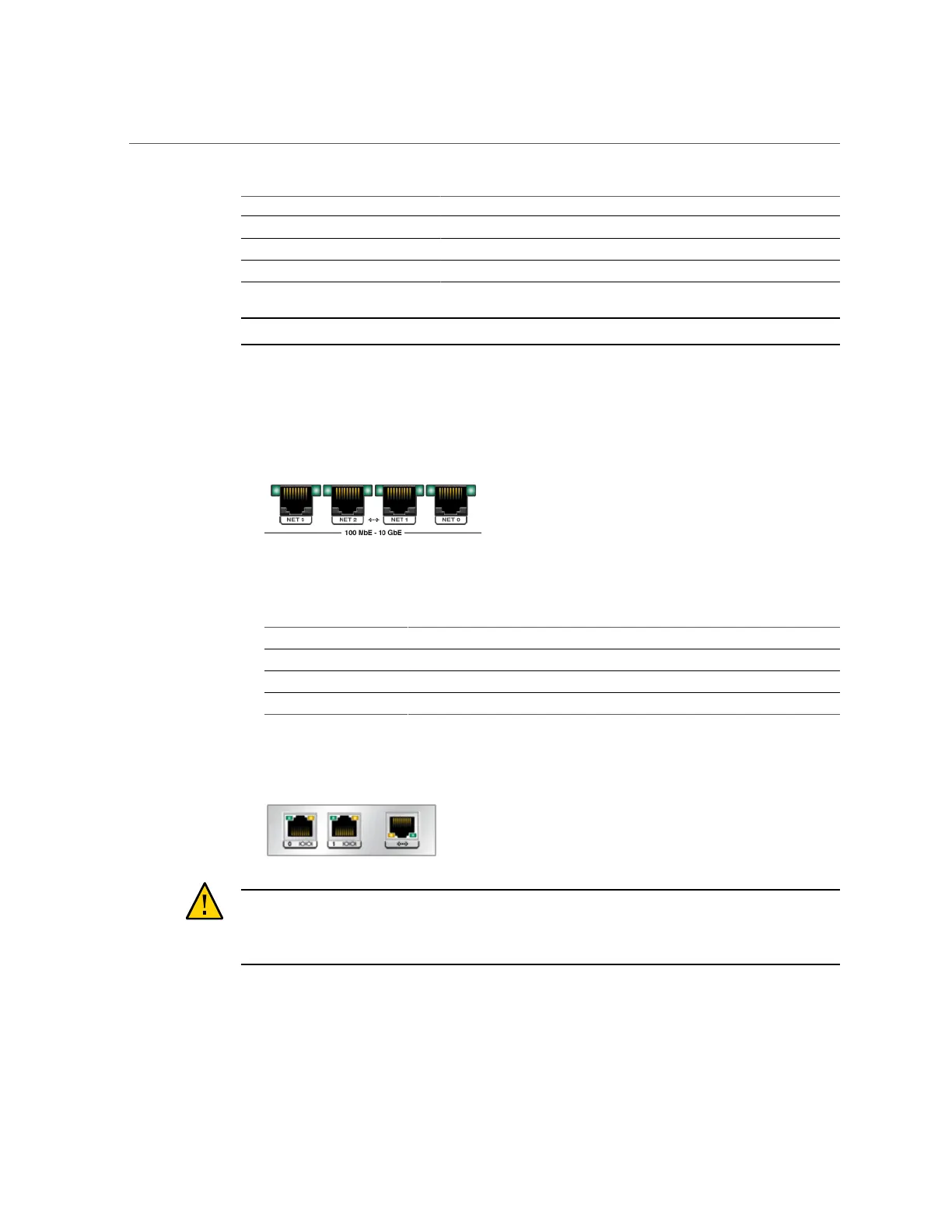

Ethernet Ports - The ZS3-2 has four RJ-45 10-Gigabit Ethernet (10GbE) network
connectors, labeled NET 3, NET 2, NET 1, and NET 0 (left to right) on the rear panel. The
ports operate at 100 Mbits/sec, 1000 Mbits/sec, or 10-Gbits/sec. Use these ports to connect
the appliance to the network.
The LEDs located above each NET port are Link/Activity (left) and Speed (right) indicators
for each port as described in this table:
Connection Type EEE Terminology Speed LED Color Transfer Rate
Fast Ethernet 100BASE-TX Off 100 Mbits/sec
Gigabit Ethernet 1000BASE-T Amber 1000 Mbits/sec
10 Gigabit Ethernet 10GBASE-T Green 10000 Mbits/sec
■
Cluster I/O Ports - Two cluster serial ports (0 and 1) and one Ethernet port provide
communication between two controllers to form a cluster configuration. For information
about how to connect cables to form a cluster, see “Cabling ZS3-2 Clusters” in Oracle ZFS
Storage Appliance Administration Guide.
Caution - When disconnecting an RJ-45 cable from a cluster serial port (0 and 1), use extreme
care not to damage the internal RJ-45 receptacle. To properly disconnect an RJ-45 cable from a
cluster serial port, see “How to Disconnect an RJ-45 Cable” on page 14.
■
Network Management Port - The network management connector (NET MGT) is an RJ-
45 port and provides an alternate terminal interface to the SP console.
42 Oracle ZFS Storage Appliance Installation Guide • February 2016
