How to Install the Mounting Brackets and Slide Rail Assemblies for a ZS3-2
6.
Position a slide rail assembly in your rack so that the brackets at each end of
the slide rail assembly are on the outside of the front and back rack posts. The
following graphic illustrates the rail assembly brackets.
7.

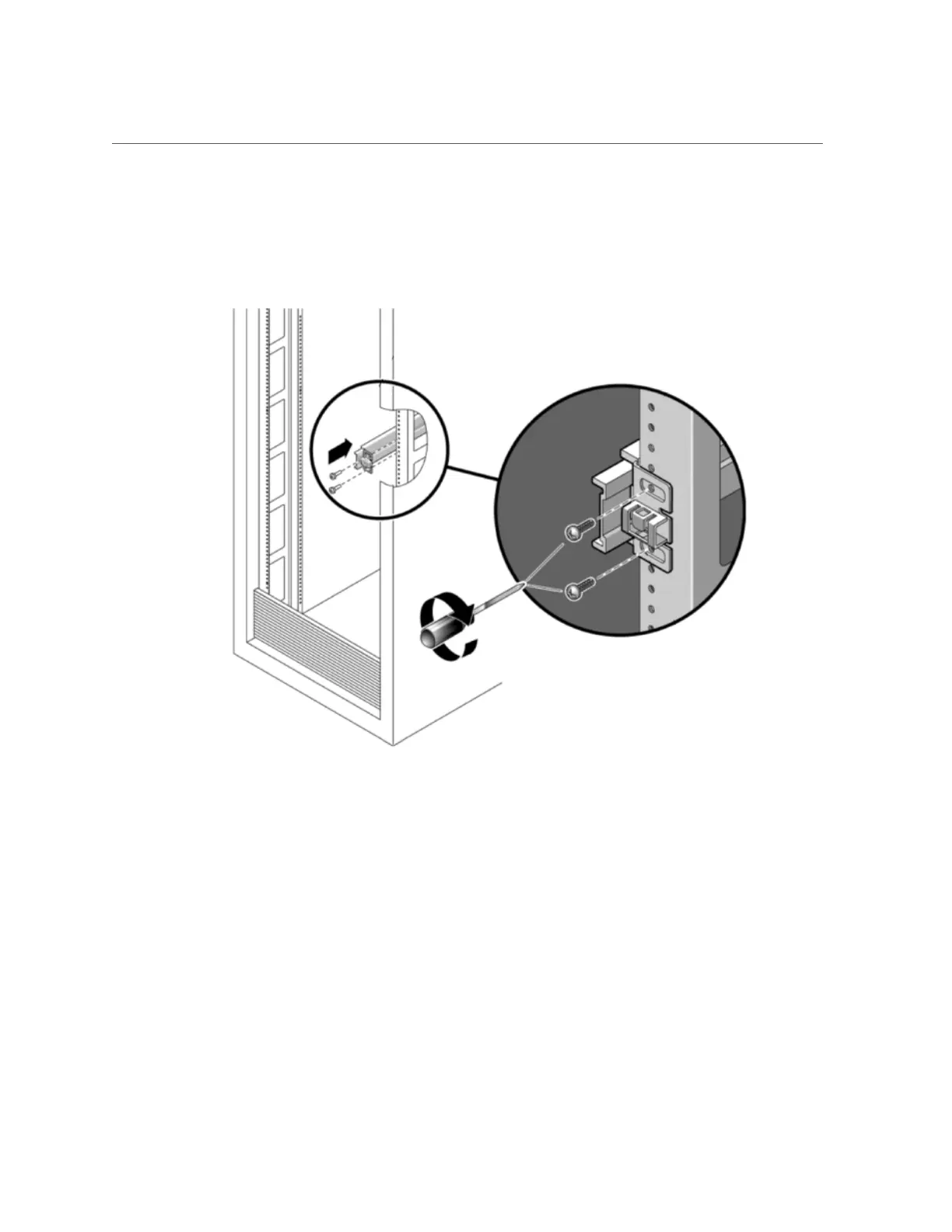

Attach each slide rail assembly to the rack posts, but do not tighten the screws
completely.
Installing a ZS3-2 Controller 85
