Regular Multiboard Definition
To define a regular Multiboard the following information is required;
• The ‘offset’, the distance between each board in X and Y
• The number of boards in X and Y
• The Board Dimensions should be accurately defined
If the Repeat is not known accurately it can be found during
creation of the Multiboard.
To create a regular Multiboard;
• Select the Miniboard to be repeated

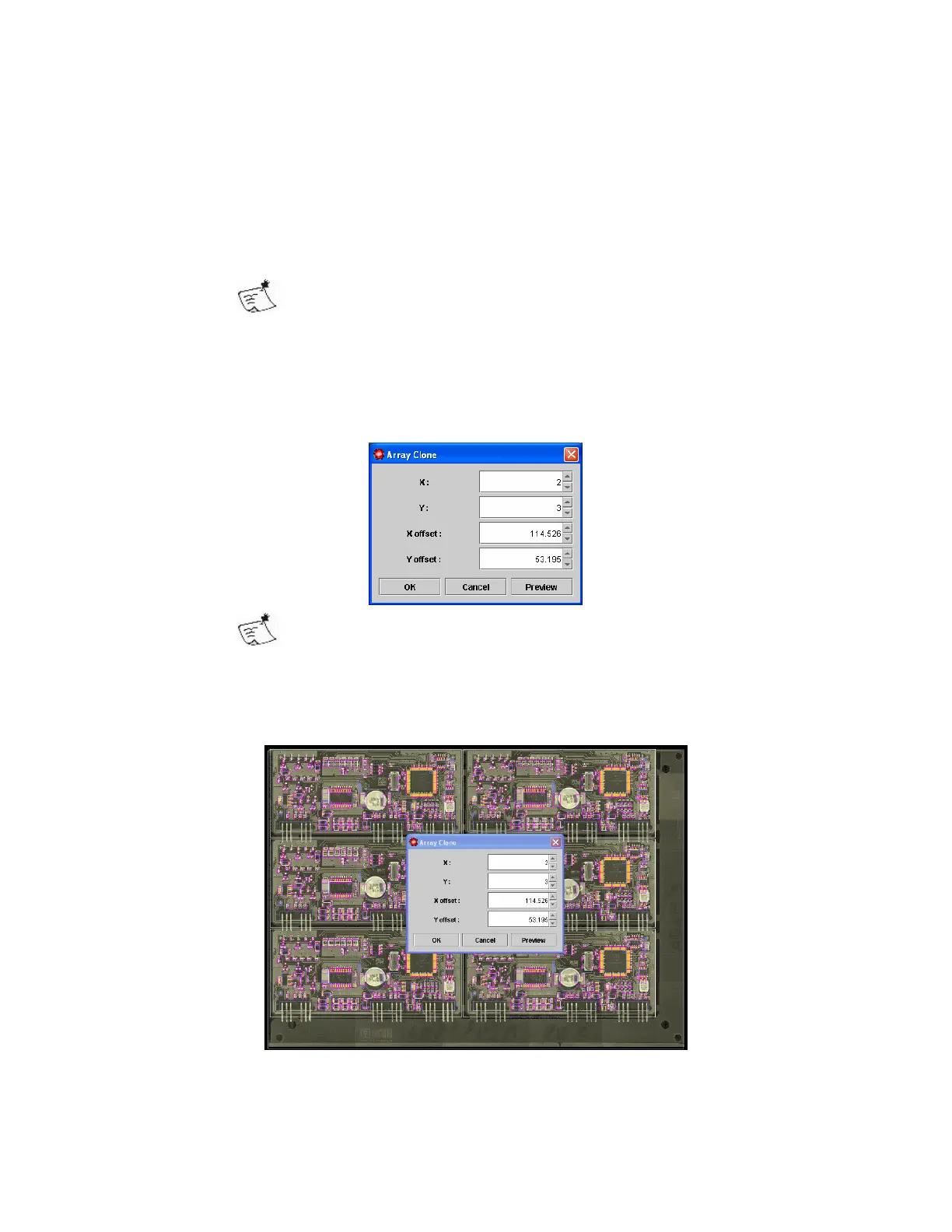

• Right click and select Array Clone from the context menu
The X and Y offset are pre set to the dimensions of the board or
miniboard
•
Enter the number of boards to be created in X and Y
• If the precise offsets are known they should be entered in X and Y
• Click Preview to see the result
• Click OK to accept the settings
To Next Page
