TBA Setup Tool
Tuning of Threshold Based Inspectors (TBA) is carried out through the TBA
Setup Tool.

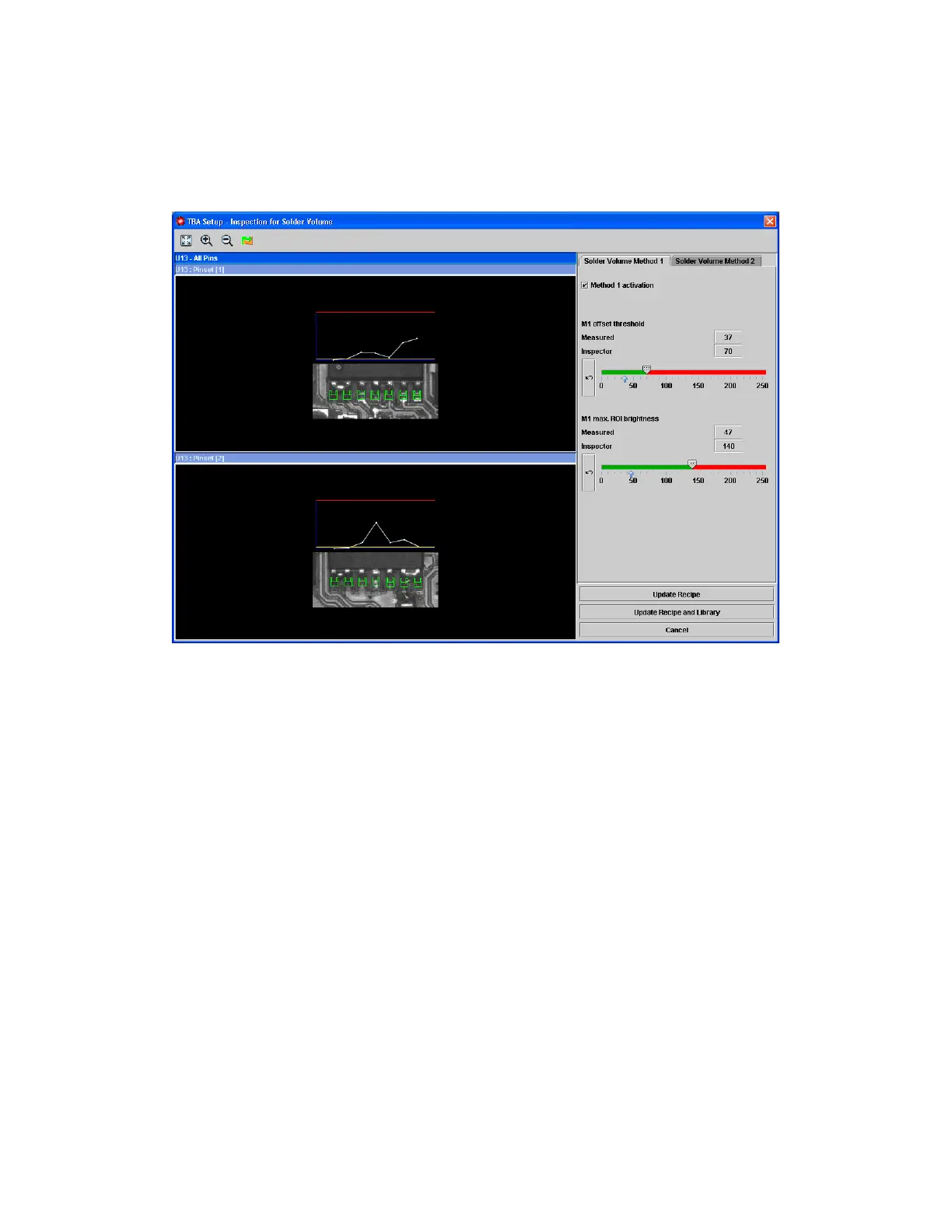

The TBA Setup Tool provides transparent setup of TBA parameters. Any
change in a parameter is evaluated immediately without re-testing. The effect
of the change is shown graphically.
The tool can be used for setting up the following types of inspection;
• Solder Volume
• Solder Shape / Lifted Lead
• Short Detection
The tool is accessed through the Recipe Editor Table View, by right clicking a
suitable inspection and selecting configure from the context menu.
