T

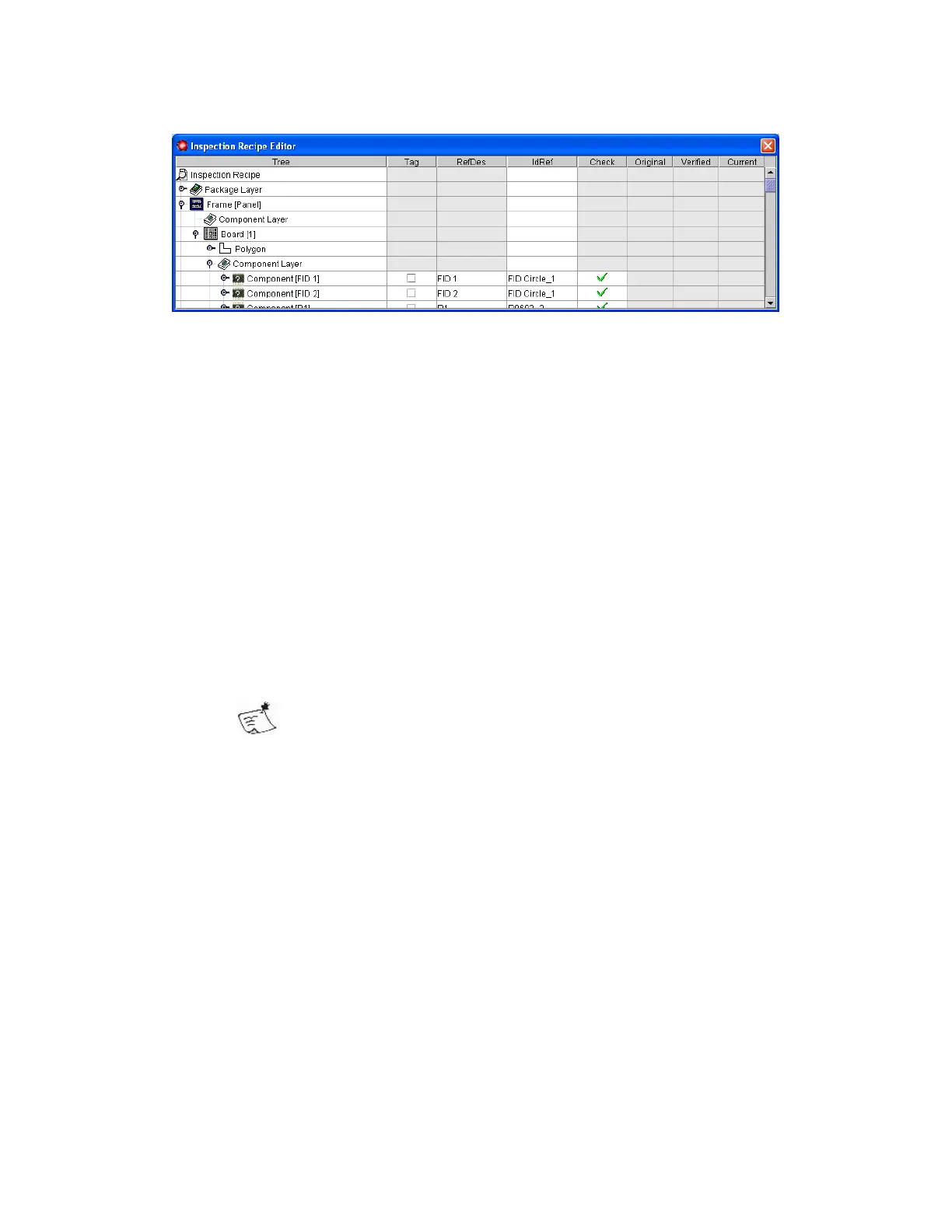

he Tree View is a more advanced form of the Editor.
The columns shown are as follows;
• Tree, the location in the Tree hierarchy (see Symbion Reference for more
information)
• Tag, as in the Table View
• RefDes, the component Name or Reference Designator
• IdRef, the name of the particular part of the tree, this may be the Package
name, or the name of an Inspection – dependant on the location in the
Tree.
• Check, as in the Table View
The following columns are all concerned with the display of inspection results.
• Original, when working with images shows the original result stored in the
image.
• Verified, shows the verified result for the component
• Current, shows the result of the last inspection carried out
Additional fields can be added to the view, by right clicking the
column headers and selecting additional aspects from the list
