A-432 4 Analog
axes module
P-432 4 P&D
axes module
A-664 6Analog
axes module
P-664 6 P&D
axes module
Part Number 2SMPM5991/0C 2SMPM6214/0C 2SMPM5992/0C 2SMPM6215/0C
Axes Number and type 4 analog ±10V
4 Pulse &
Direction
6 analog ±10V
6 Pulse &
Direction
Axes feedback Incremental encoder
Digital In 32 64
Digital In lter 1 pole, t = 4.7ms
Digital Out 32 64
Digital Out on 24V
24Vdc 0.25A channel
(4A max for each connector grouping 8 output)
Digital Out Short circuit protection YES
Digital Out Total response time (ON/ OFF), 0.5A load 0.5 ms max
Analog Out 2 x 16 bit - - -
Spindle Out 1Analog output
Analog Out type ±10V
Analog Out Resolution 16 bits
Analog Out Short circuit protection YES
Analog In 4 x 12 bit
Analog In type ±10V differential
Analog In Band pass 300Hz
Handwheel In 1 x encoder ABZ
Power Supply 24 VDC
Power Supply Digital I/O board 24 VDC
Operating Temperature 0°C …+50°C
Relative Humidity 90% no condensation
IP protection IP20

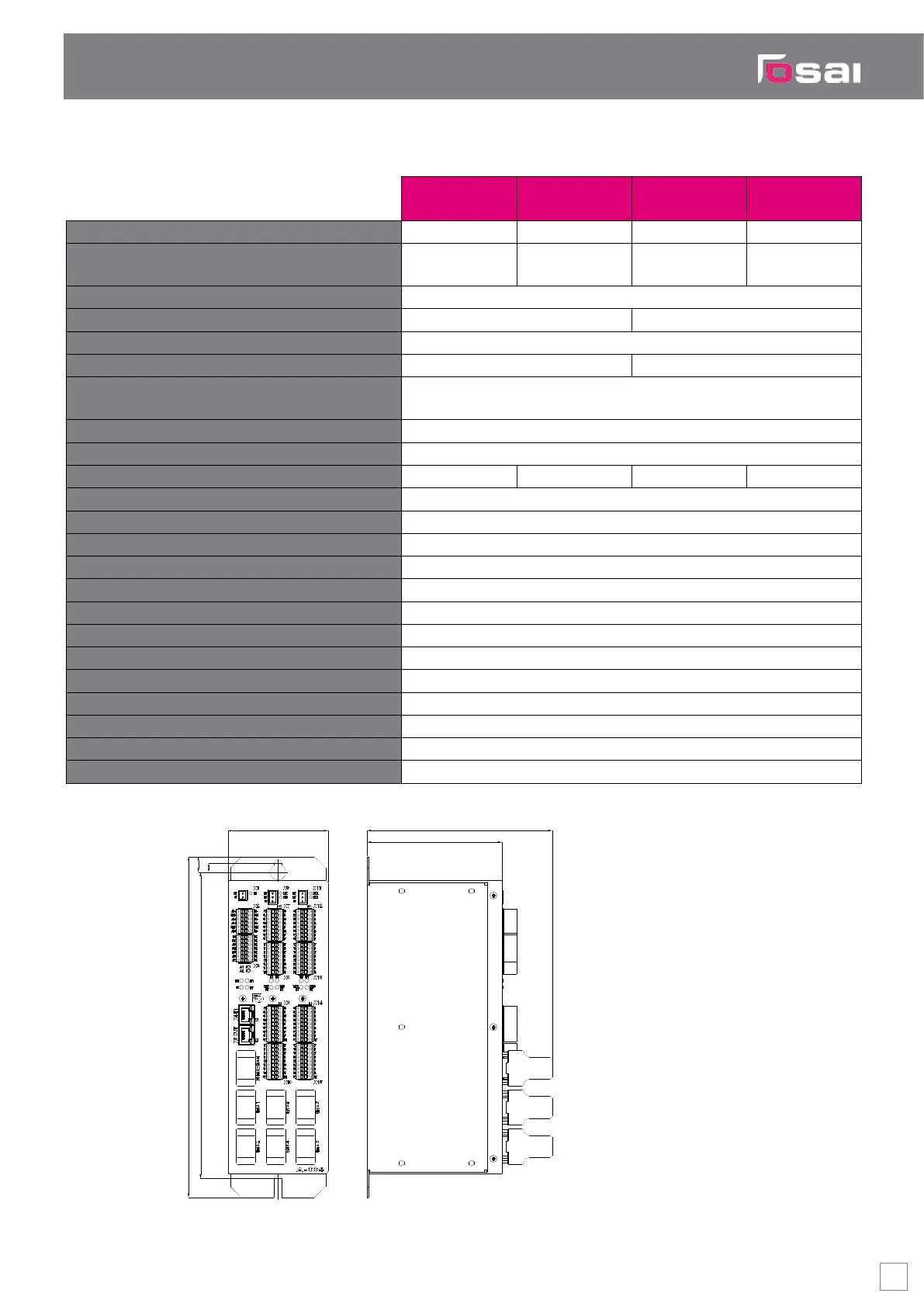

6Analog Axes slave module
A-664dimensions, front and side view
304.5
14
8
89.3
120
165
273.5
OPENcontrol Technical overview
33
