Hardware

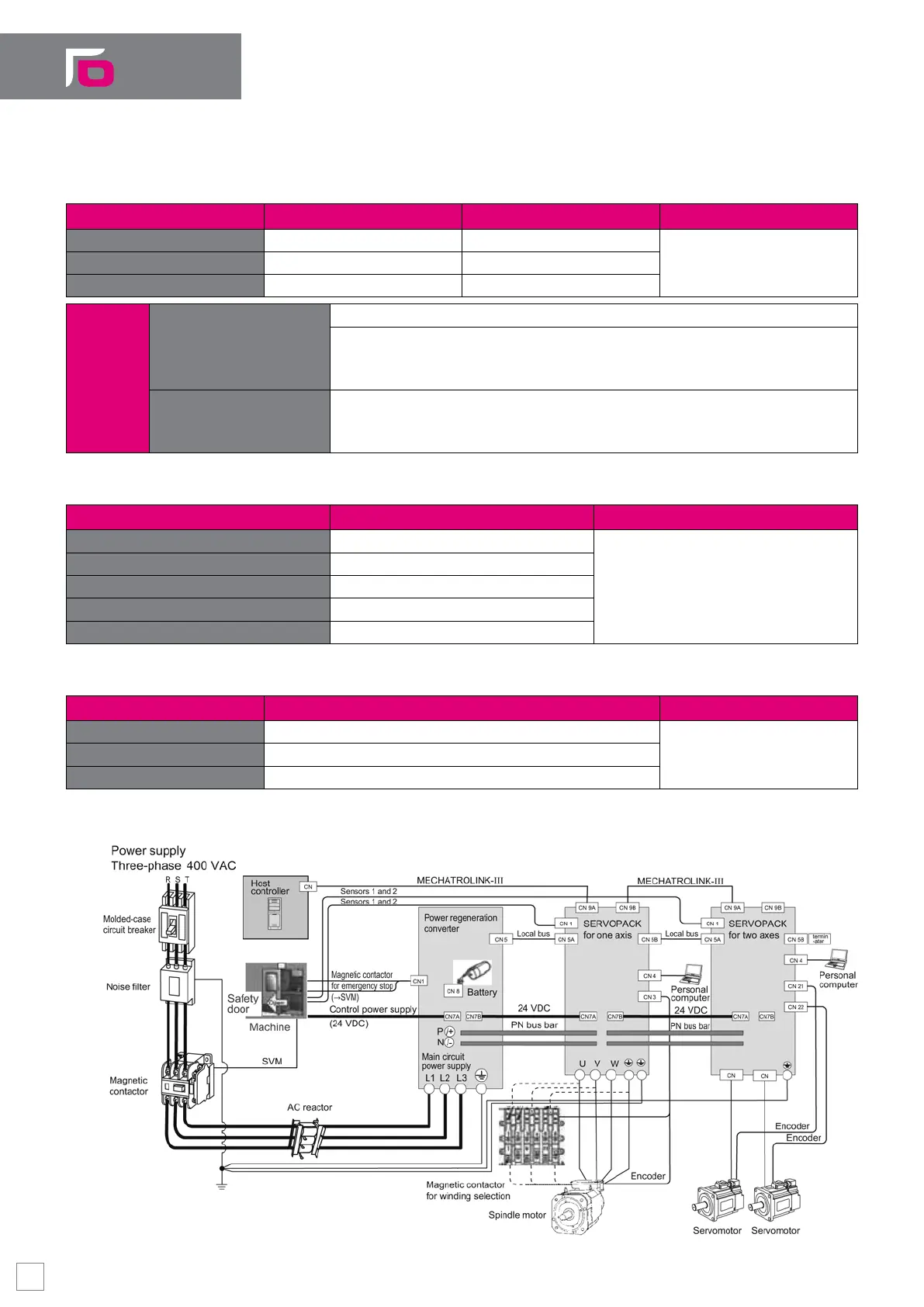

Specications of Power Regeneration Converter
Model Code 50% ED Rating Continuous Rating
15D 15 kW 11 kW
480 VAC19D 18.5 kW 15 kW
22D 22 kW 18.5 kW
Input
Power
Main Circuits
L1, L2 and L3
Three-phase 380 to 480V (50/60 Hz) --> DC 540 V
Allowable voltage uctuation: +10% to -15%
Allowable frequency uctuation: ±5%
Line voltage unbalance: 5% max.
Control Power
24 VDC
Allowable voltage uctuation on: ±15%
Output holding time: 100 ms min.
One axis SERVOPACK specications
Model Code Output Current DC-Bus Voltage
014D 14 A
540 VDC
018D 18 A
033D 32.5 A
042D 42 A
051D 51 A
Two axis SERVOPACK specications
Model Code Output Current for each axis DC-Bus Voltage
3D 5.4 A
540 VDC4D 8.4 A
5D 11.9 A
