Ossa TR280i - Location of elements

12
ENGINE PARTS

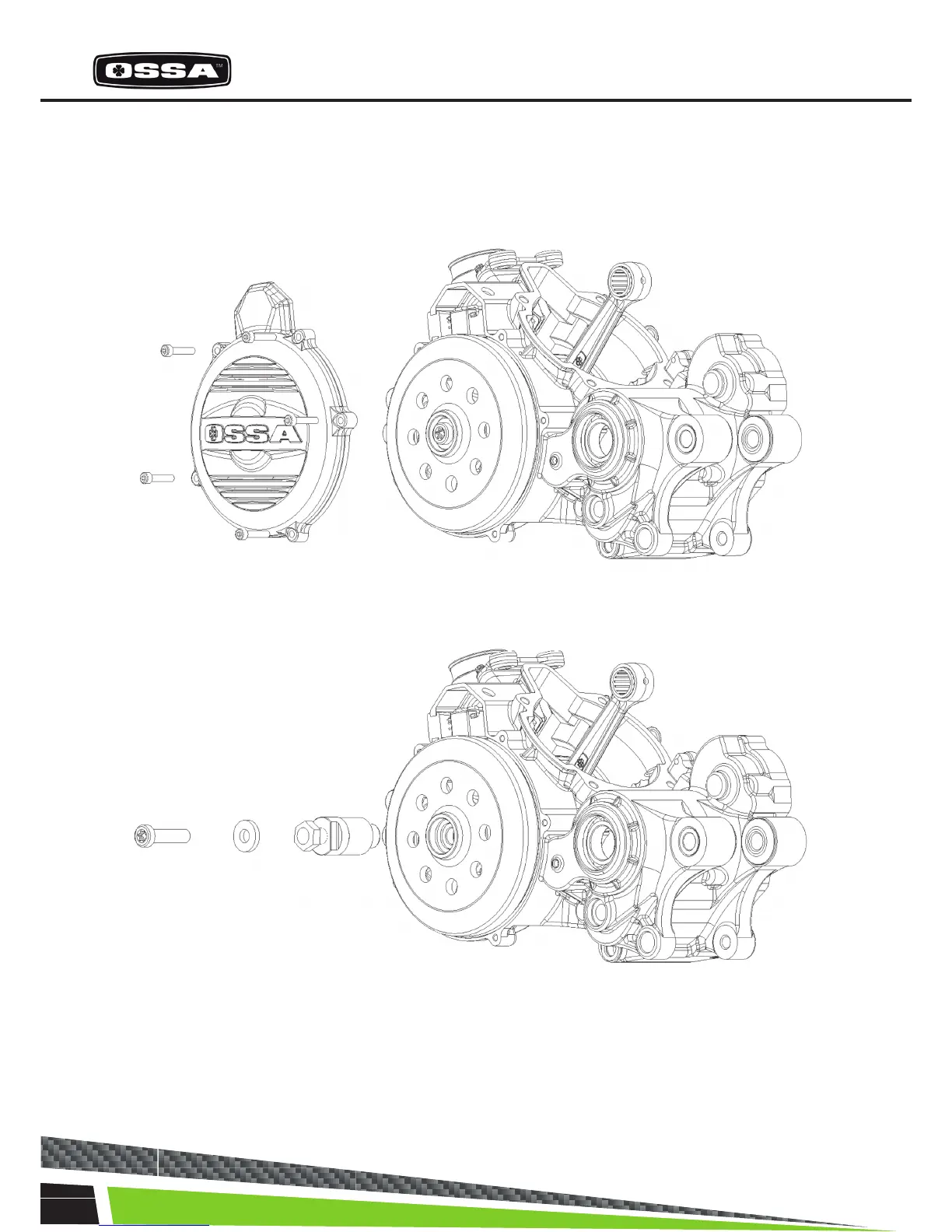

7- IGNITION SIDE
If we remove the ignition cover we can access the rotor. Once the rotor is out we can get to the stator.
Remove the 5 bolts from the ignition cover.
Using the special tool (included in the tool kit Ossa ref. 1499960211) we can take out the rotor.
