ELECTRICAL PARTS
Log File View Setting
This dialog is used to set graph parameter.

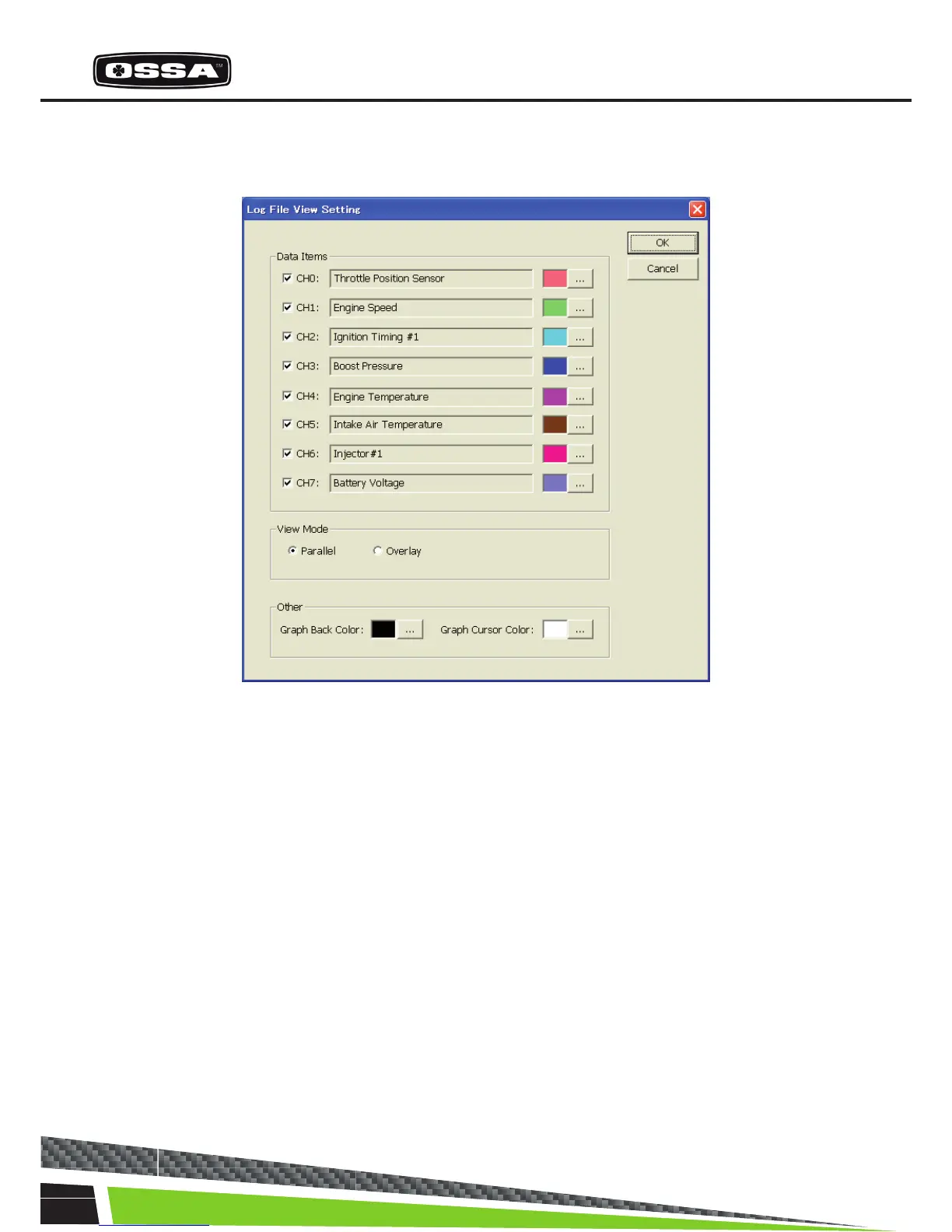

Figure 16 Log File View Setting Dialog
1 Data Items Check box Set a channel to be displayed or not.
Checked channelsare displayed by graph.
2 Data Items Combo box Select Data Item of a channel.
3 Data Items […] button Select a plot color of a channel.
4 View Mode Select a view mode.
Parallel: Each channel is displayed in a separate
graph.
Overlay: All channels are displayed in one graph.
5 Graph Back Color Select a back color of graphs.
6 Graph Cursor Color Select a cursor color of graphs.
7 [OK] button Save settings and close this dialog.
8 [Cancel] button Cancel settings and close this dialog.
