Throttle Setting
This function is to set a TPS (Throttle Position Sensor) voltage at closing point to the ECU. In order to
adjust differences of throttle body (TH/B) on a vehicle, it is possible to let the ECU to learn the TPS
voltage at the metal touch position of throttle buttery.

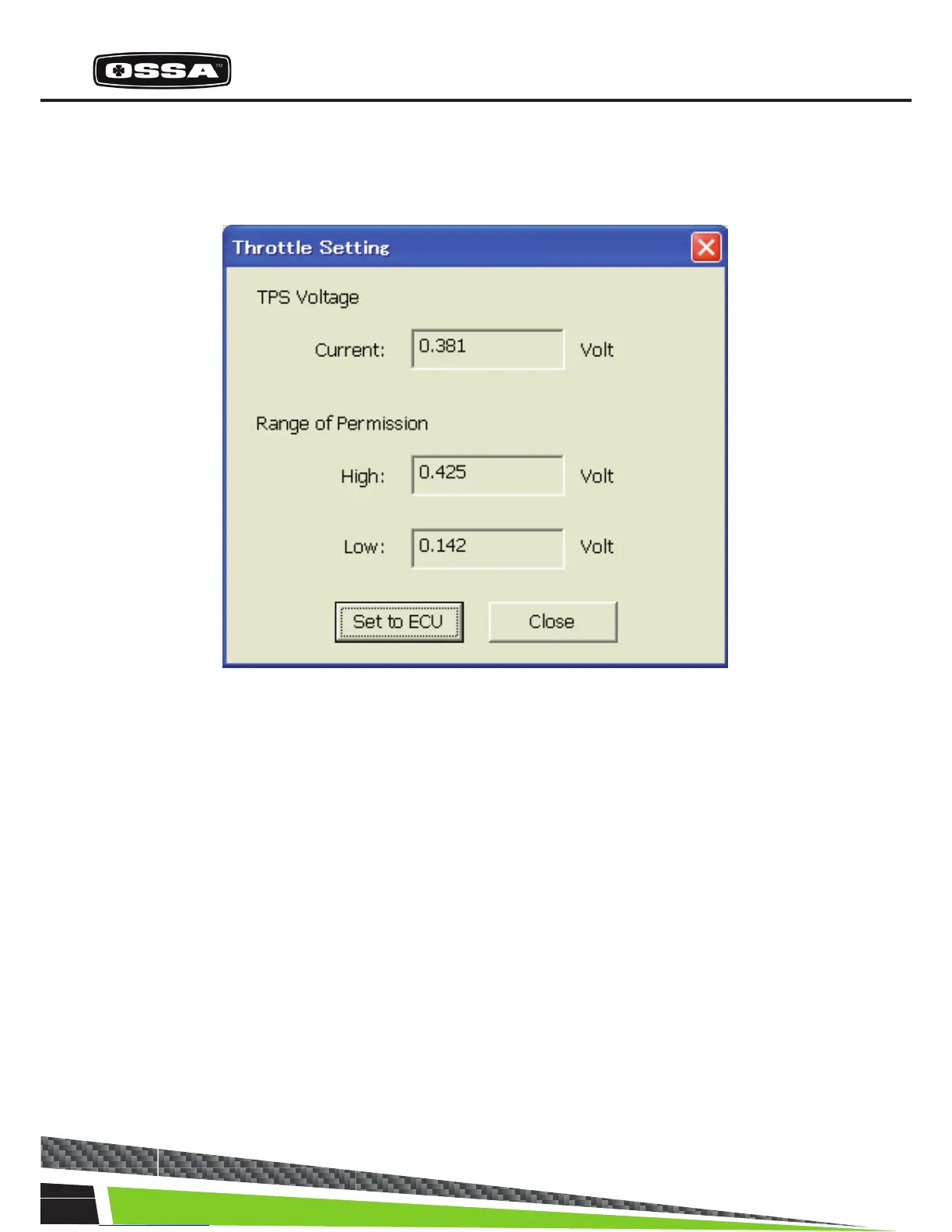

Figure 20 Throttle Setting Dialog
1 TPS Voltage Current Display current TPC voltage. If the voltage is not within a
normal range, it will bedisplayed in red.
2 Range of permission High Display upper bound voltage within the normal range.
3 Range of permission Low Display lower bound voltage within the normal range.
4 Set to ECU button Set the TPS voltage to the ECU. When you clicked the
button, the Message 19 will beshown.
If you select ‘Yes’ button, current TPS Voltage will be setto
the ECU. If it is succeeded to set, the Message 20 willbe
shown. But if it is failedto set, one of the Message 21-28 will
be shown.
5 [Close] button Close this dialog.
