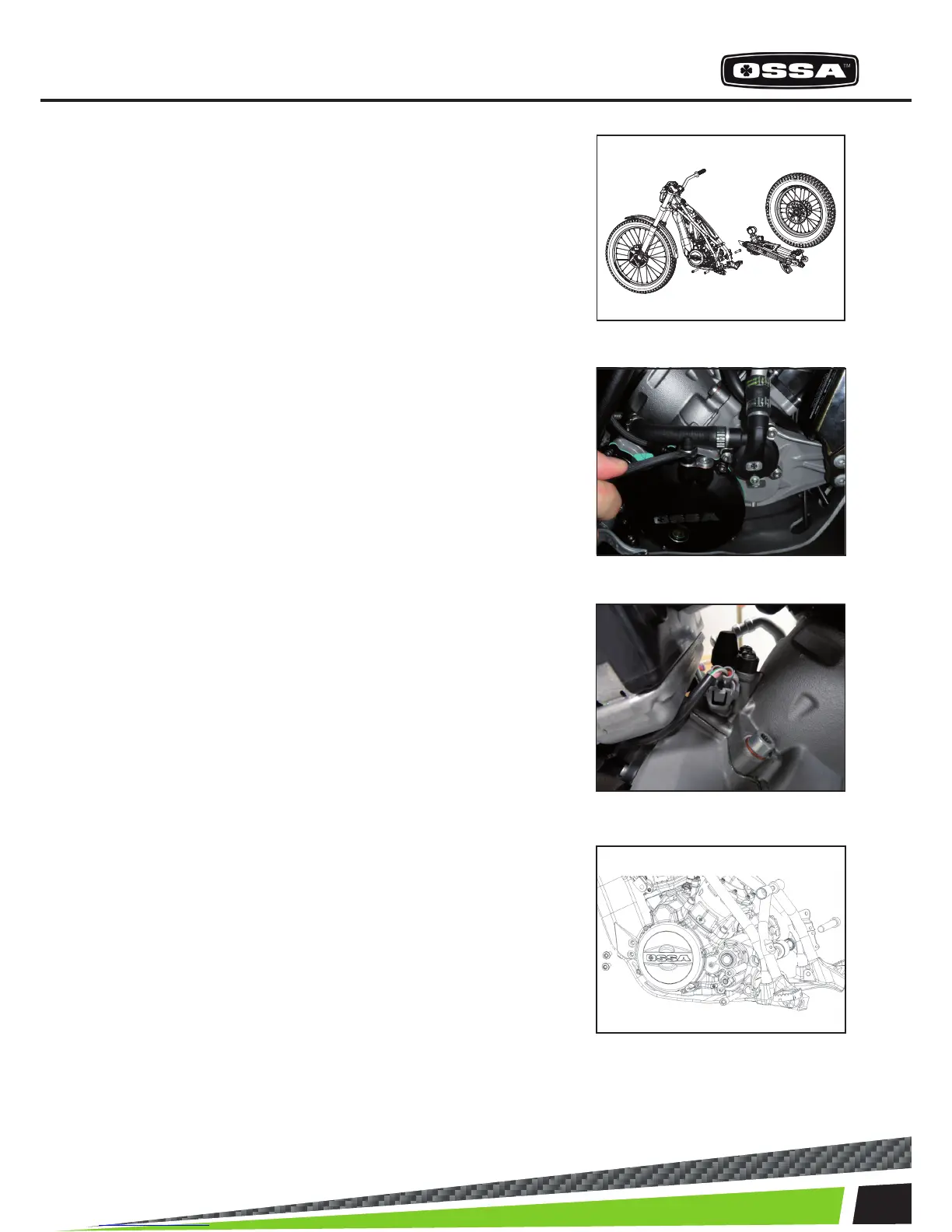

ASSEMBLY AND DISASSEMBLY OF THE ENGINE FROM THE CHASSIS
9. Remove the bolts that hold the engine to the chassis,
to proceed with its disassembly.
8. Disconnect the cables from the injector.
7. Empty the clutch oil and remove the hose from the engi-
ne.
5. Take off the rear wheel, the swing arm, the shock absor-
ber and the brake pump from the chassis.
