Outback MATE User Manual

36

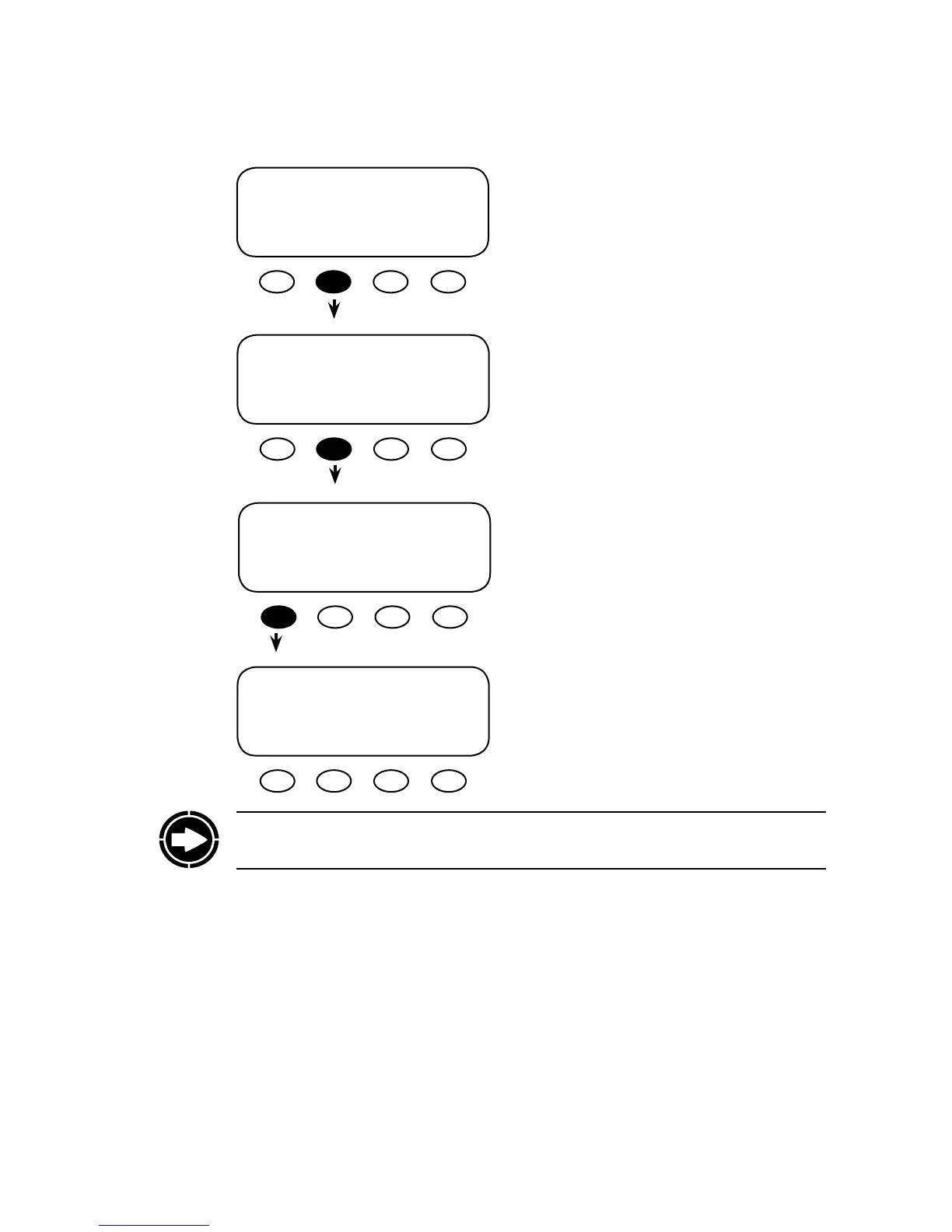

SETUP/MATE/SUM/TYPE----------
summary CC Only
screen type
BACK INC DEC
CC Only—displays the CC SUMMARY screen.
Pressing the <INC> opens the DC Only summary
screen.
NOTE: An Charge Controller or FX must be connected to the MATE or HUB to have “CC
Only” or “FX Only” modes.
Having chosen a Summary type—None, Roll, FX Only, CC Only, DC Only or DCSimple:
1. Aer exiting that screen, the SUMMARY type will automatically appear whenever the
MATE has been inactive for the <TIME> set point (very much like a screensaver on a
computer monitor).
2. e chosen SUMMARY type will also be the SUMMARY manually called up by pushing
the <SUM> so key on the MAIN menu.
3. If the MATE is connected to a HUB with both Charge Controller and FX components, it
will switch between the CC and FX SUMMARY screens every 20 seconds when in “Roll”
mode.
4. If you choose “None,” the MATE continues to display the last active screen viewed; if you
press the <SUM> so key on the MAIN menu when “None” is chosen, the FX SUMMARY
screen appears.
SETUP/MATE/SUM/TYPE----------
summary DC Only
screen type
BACK INC DEC
SETUP/MATE/SUMMARY----------
summary control
BACK TYPE DELAY ROLL
DC Only—displays the DC SUMMARY screen.
Pressing the <INC> so key opent the DC Only
Simple screen.
From the DC OnlySimple screen, press the
<BACK> so key to return to the summary con-
trol screen.
SETUP/MATE/SUM/TYPE---------
summary DC OnlySimple
screen type
BACK INC DEC

Outback MATE Specifications

General

Display	LCD
Operating Temperature Range	-20°C to 60°C
Mounting	Wall Mount
Type	System Display and Controller
Communication	RS232
Communication Ports	RS232
