SECTION 3 - HANDLING, STORAGE, AND INSTALLATIONPACE │ Installation & Assembly Manual
Issue Date: 07/03/2018
44
Form PA102.20-N1
Baserail Lifting Lugs Assembled
1/2 in. Flat
Washer
1/2 in. Lock
Washer
1/2 x 5-1/2 in. Bolt
1/2 in. Nut
LD11032a

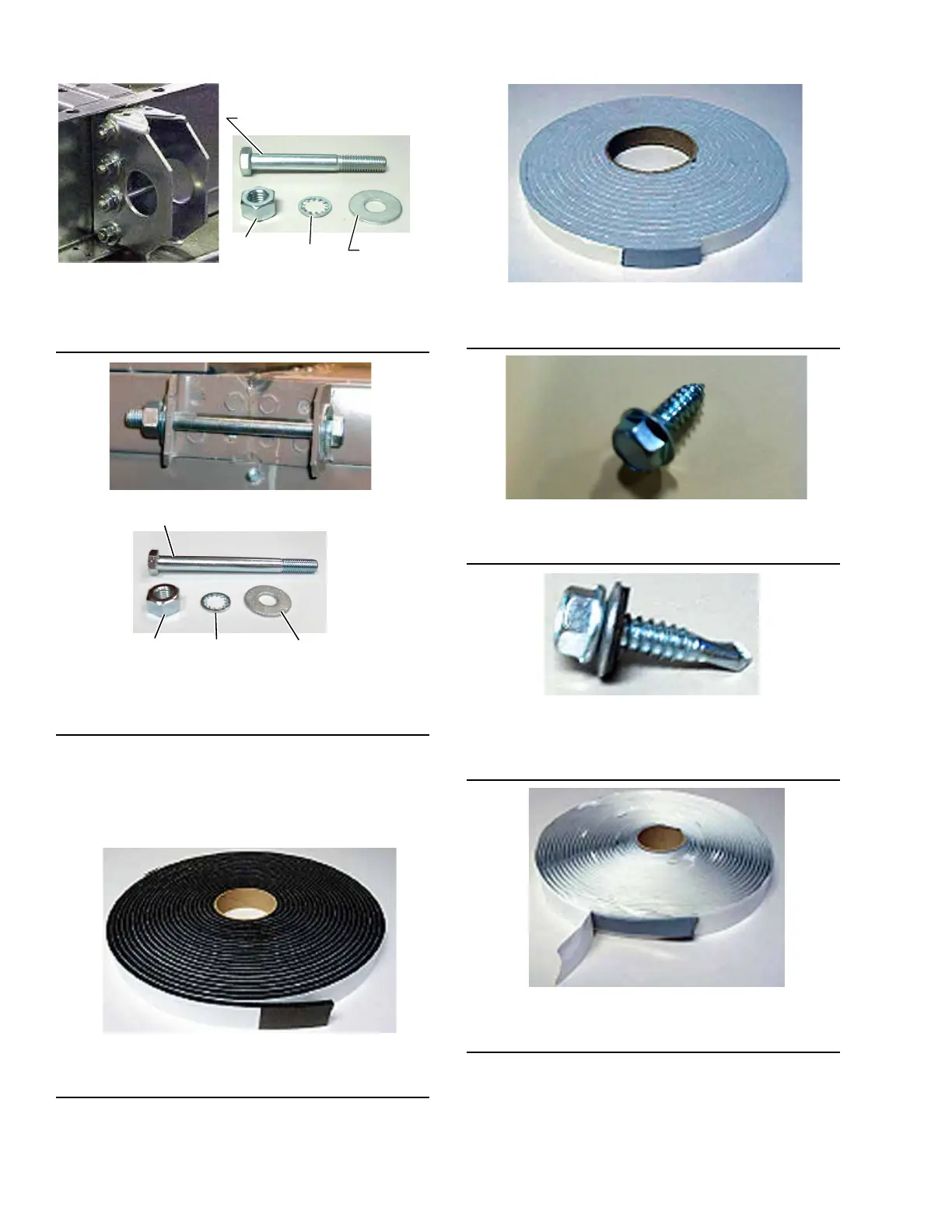

Figure 54 - Base Rail Shipping Split Fastener Pack
(P/N 386-03417-000)
1/2 x 5-1/2 in. Hex Cap Screw (2)
0.56 in. ID x 1.38 in. OD
Flat Washer (2)
Lock Washer (2)
1/2 in. Hex Nut
Raceway Lifting Lugs Assembled
LD13349
Figure 55 - Top Raceway Bracket Assembled (P/N
386-04747-000)
Pipe Chase, Hoods and Seam Caps
Use the following parts to install the seam cap(s), pipe
chase(s), and hood(s) as shown in Figure 62 on page
45 through Figure 64 on page 45.
LD116508
Figure 56 - Neoprene Gasket - 1/4 In. X 2 In. X 25 Ft
(P/N 028-15954-010)
LD116510
Figure 57 - Neoprene Gray Gasket - 1/4 In X 3/4 In X
35 Ft (P/N 028-11873-010) for Door
LD116510
Figure 58 - Phillips Hex Head Screw
(P/N 021-32268-011) For Indoor Unit Seam Cap
LD116513
Figure 59 - Hex Head Screw For Outdoor Roof Seam
Cap, Pipe Chase, and Rain Hood - 1/4 In-14 X 1 In
(P/N 021-30530-052)
LD116509
Figure 60 - Butyl Tape - 3/16 In X 3/4 In X 40 Ft (P/N
013E-03327-010)
