SECTION 3 - HANDLING, STORAGE, AND INSTALLATIONPACE │ Installation & Assembly Manual

Issue Date: 07/03/2018

Form PA102.20-N1

HEPA FILTERS

Koch HEPA Filter Frame

If HEPA filters are to be part of the

installed ltration system, then perfor-

mance shall be certied via a DOP test

on the installed system and classied

as UL Class 1 when tested in accor-

dance with UL Standard 586.

FILTER RETAINER

CLIPS MUST BE

ATTACHED TO

SIDES ONLY

HAT

AIRFLOW

FILTER CLIPS INSTALLED

FILTER CLIP INSTALLATION

SEE DETAIL A

FLAT SEALING

SURFACE

GASKET SEAL

HEPA FILTER

GASKET SEAL

DETAIL A

HOLDING FRAME

GASKET

LD13302

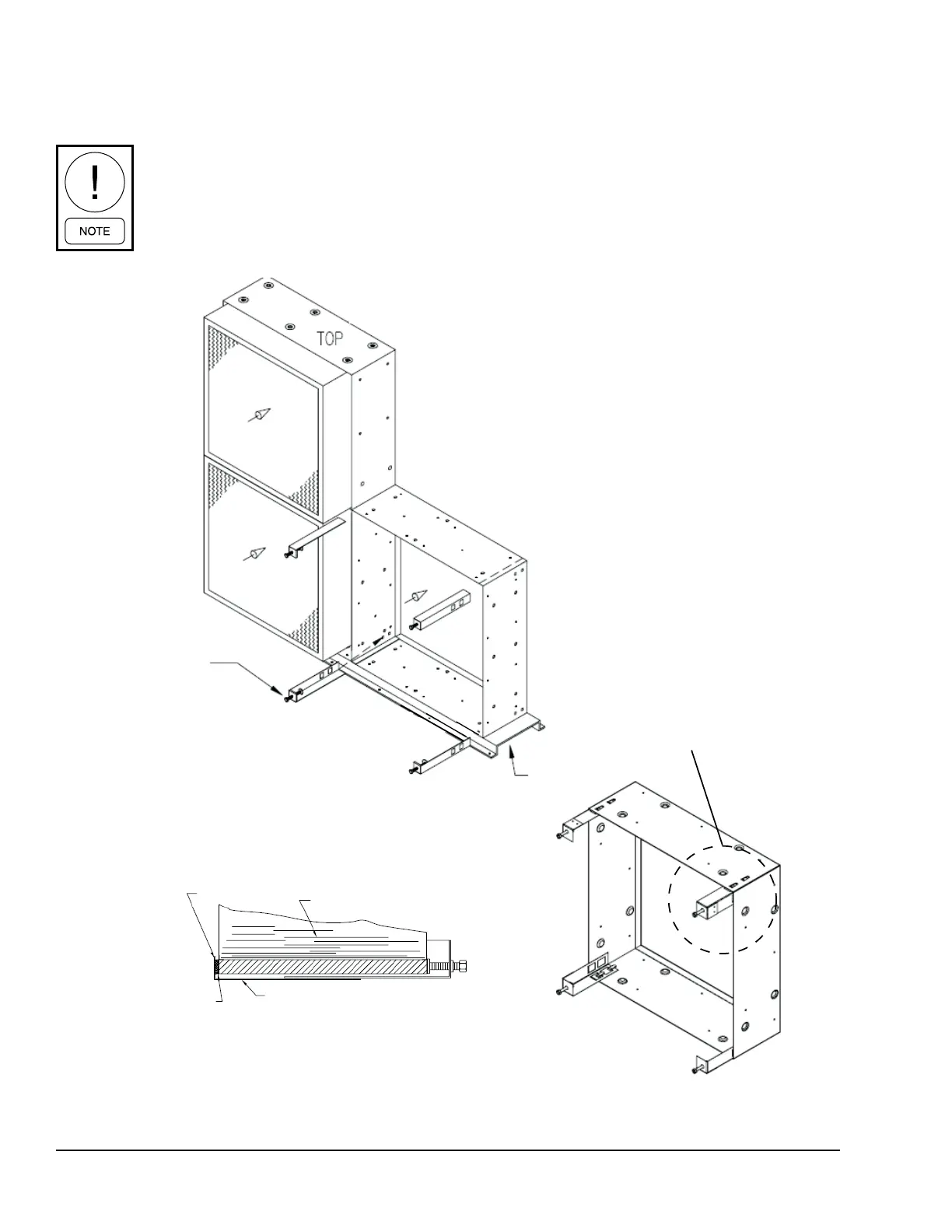

Figure 90 - Installation of Koch HEPA Filters
