SECTION 3 - HANDLING, STORAGE, AND INSTALLATIONPACE │ Installation & Assembly Manual

Issue Date: 07/03/2018

Form PA102.20-N1

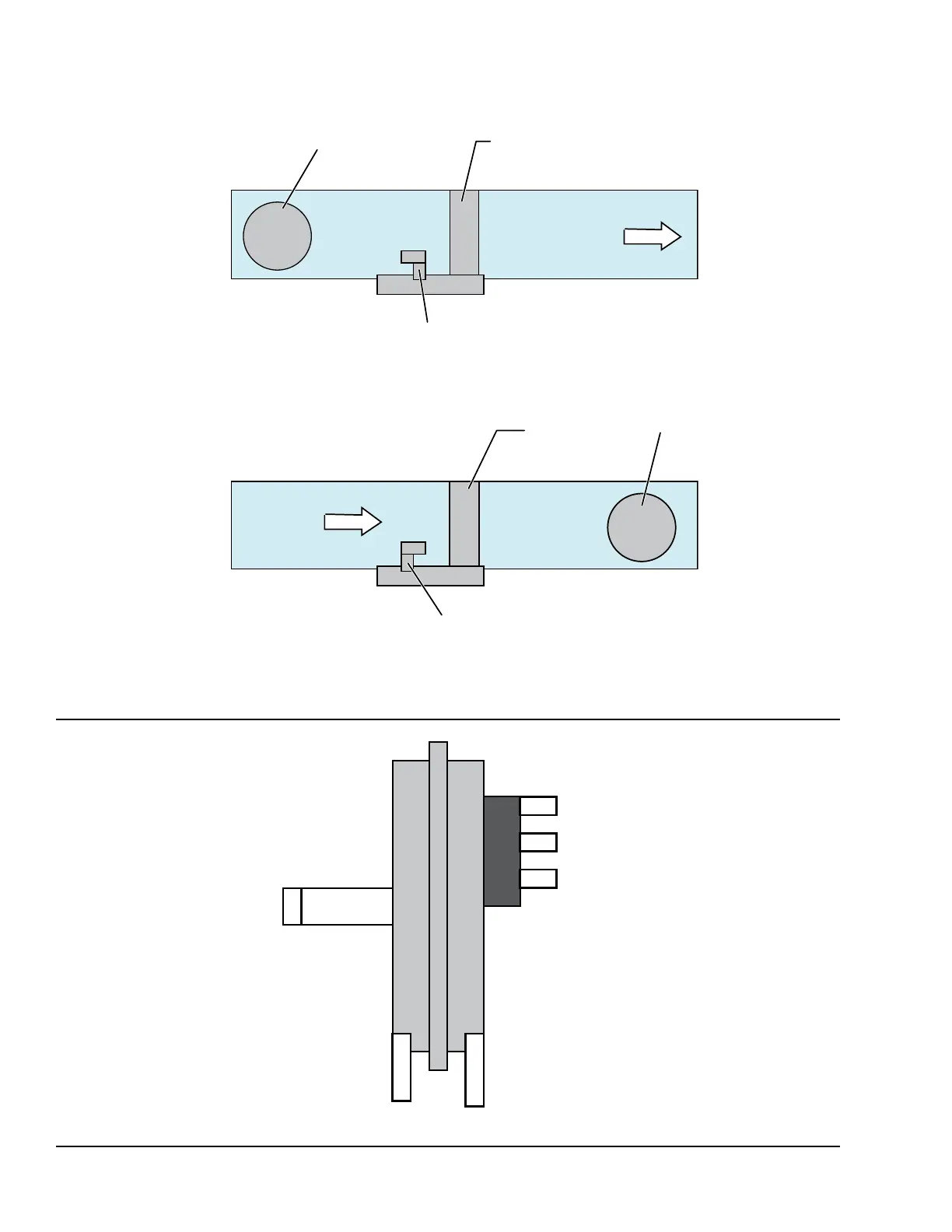

BLOWER

HEATER

AIR FLOW

BLOWER

HEATER

AIR FLOW

PICK UP TUBE TOWARDS BLOWER ATTACHED

TO HIGH PORT OF AIR FLOW SWITCH

PICK UP TUBE TOWARDS BLOWER ATTACHED

TO LOW PORT OF AIR FLOW SWITCH

TOP VIEW OF UNIT

POSITIVE PRESSURE / AIR BLOWN THROUGH HEATER

NEGATIVE PRESSURE / AIR BLOWN THROUGH HEATER

LD12468

Figure 137 - Pressure Probe Direction

LD12470

Figure 138 - Air Flow Switch Connections
