Pace PAI - FIGURE 160 - IFB Coil (Horizontal Tubes Available with Steam and Hot Water); FIGURE 161 - VIFB Coil (Face-Mounted Actuator Shown); FIGURE 162 - Hot Water Piping Schematic for 2-Row Coil VIFB

To Next Page

To Previous Page

SECTION 3 - HANDLING, STORAGE, AND INSTALLATIONPACE │ Installation & Assembly Manual

Issue Date: 07/03/2018

Form PA102.20-N1

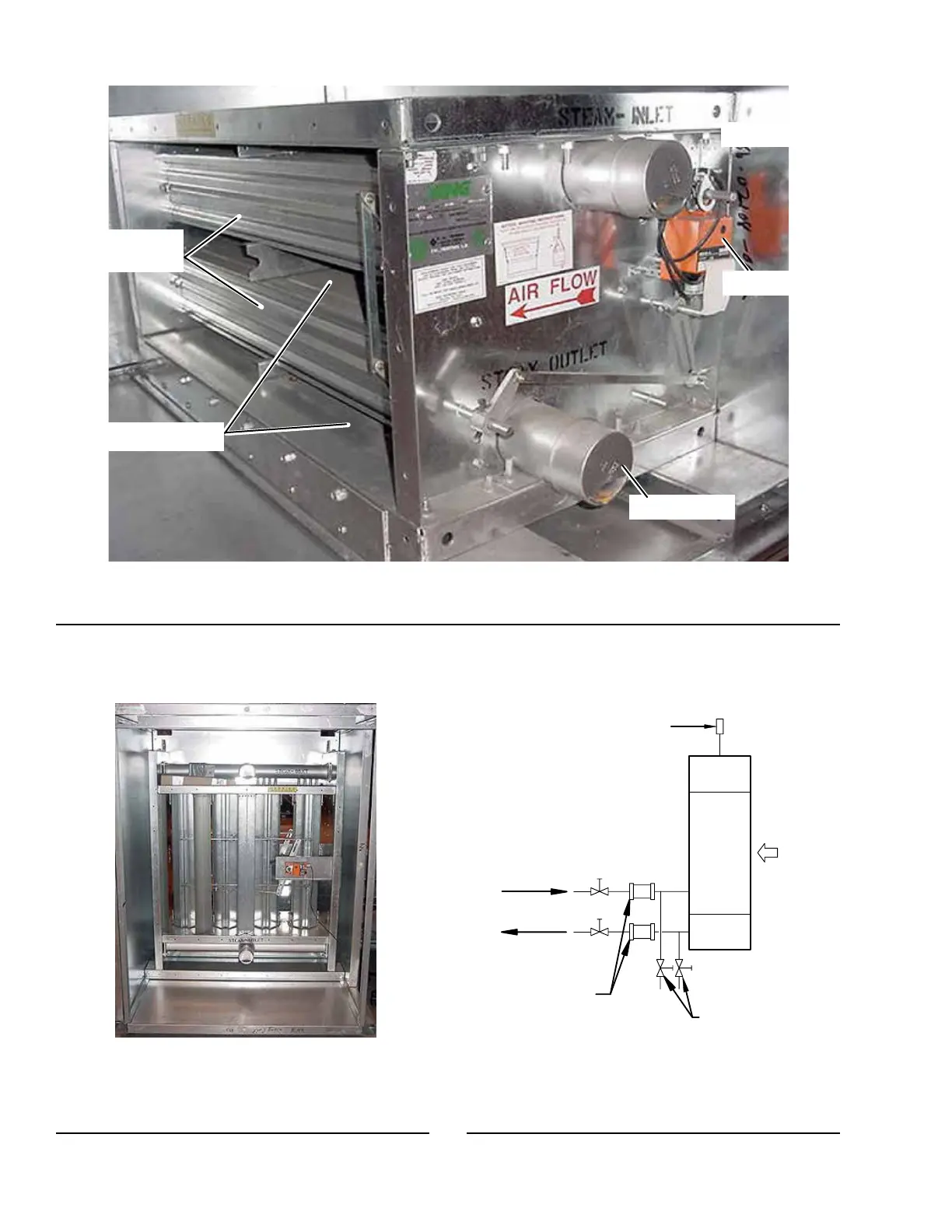

Figure 160 - IFB Coil (Horizontal Tubes Available with Steam and Hot Water)

LD09630

FACE DAMPERS

CLOSED

BYPASS OPEN

STEAM IN

STEAM OUT

ACTUATOR

Figure 161 - VIFB Coil (Face-Mounted Actuator

Shown)

LD09631

Figure 162 - Hot Water Piping Schematic for 2-Row

Coil VIFB

LD09632

HOT WATER

SUPPLY

HOT WATER

RETURN

FLEXIBLE

CONNECTOR

DRAINS

AIR

FLOW

VIFB

COIL

3/4 in (19.1 mm)

AUTOMATIC

AIR VENT IN

TOP HEADER
