2. Slide the bracket outward and remove it from the main board.

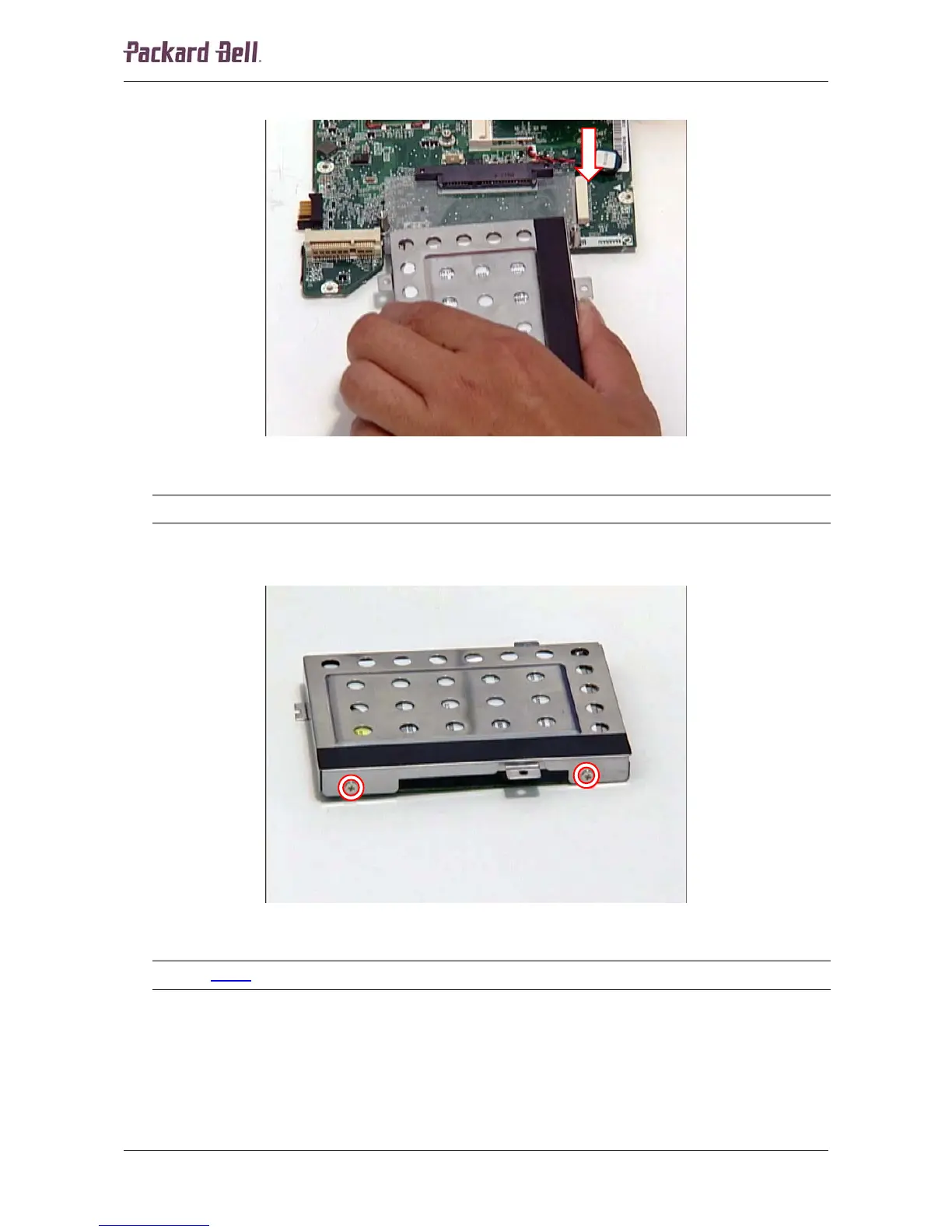

Fig. 43 Disconnecting and removing the hard disk drive.
Note:
Do not press down on the bracket to prevent damaging the main board.
3. Remove the four screws (Phillips-head) on the metal bracket holding the hard disk drive.
Fig. 44 Location of the hard disk drive bracket screws.
Note:
In Fig. 44 only two screws are visible; the other two are located on the other side of the bracket.
Packard Bell dot Disassembly Manual
