Installing lifting mechanism
7.2.2 Mounting the platform on the lifting mechanism
Mount the platform on the lifting mechanism.
Bolt the platform to the control rod without the tilt cylinders. Use
the spacer discs supplied to align the platform with the body.
7.2.3 Mounting auxiliary device

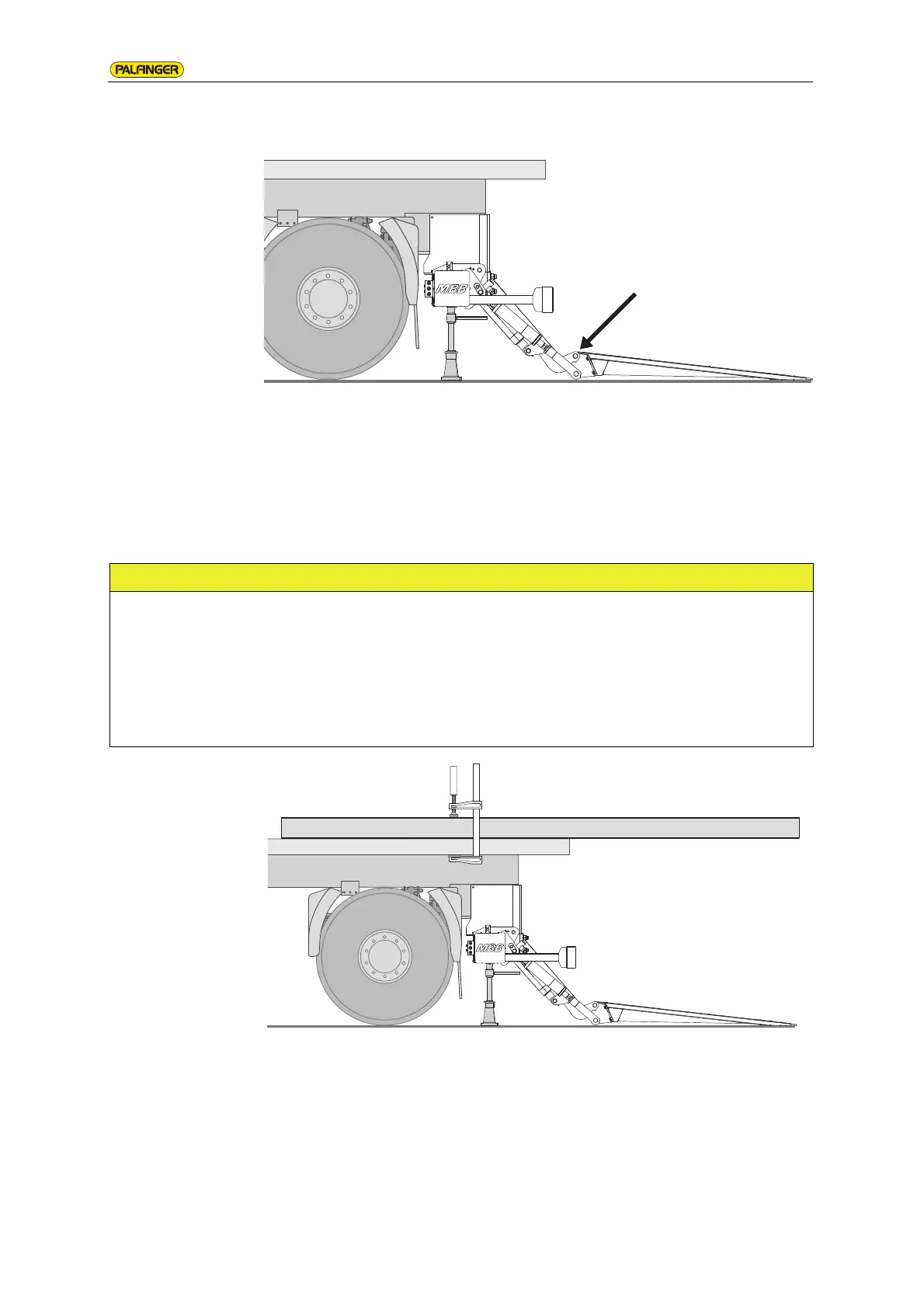

Place two straight steel bearers of sufficient length on the load
area between the control rod arms and vehicle body wall.
CAUTION
Risk of falling equipment!
If you incorrectly position the auxiliary device or do not fix it correctly, the lifting
mechanism with the platform may fall and cause personal injury or material damage.
Make sure that the auxiliary device has a sufficient load bearing capacity to bear
the lifting mechanism with platform.
Make sure that the auxiliary device is correctly positioned and properly fixed.
