39
Establishing electrical connections

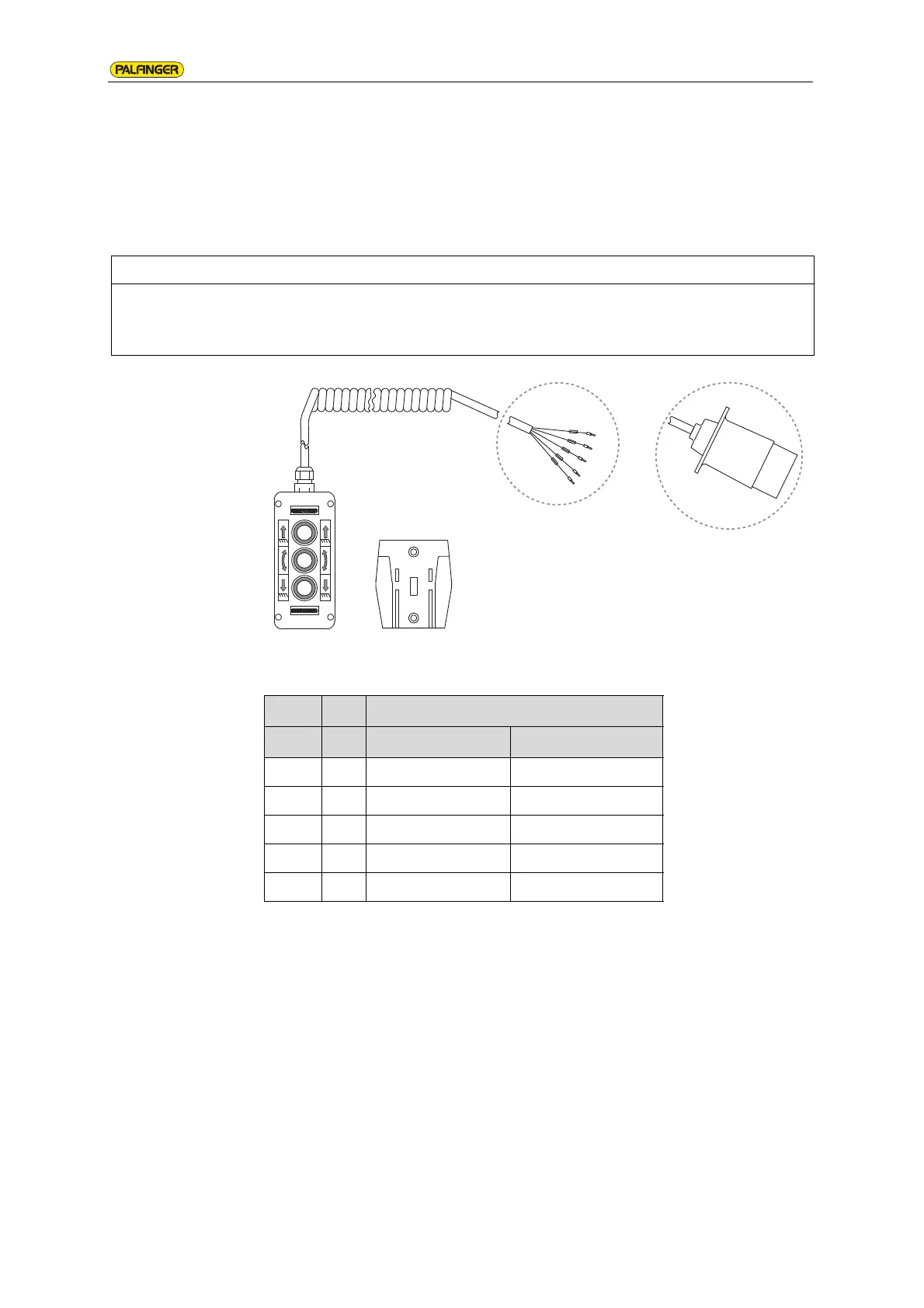

8.4 Connecting the manual cable switch/remote
control (optional)
A manual cable switch or a remote control are optionally available
with your PALFINGER Tail Lifts tail lift.
Select a suitable place for mounting the socket under the vehicle
loading bay. A fixing option is provided on most control panel
holders.
Mount the socket.
Connect the cable from the manual cable switch in the terminal
box in accordance with the PALFINGER Tail Lifts circuit
diagram.
Find a suitable and secure storage location for the manual cable
switch. Operation of the manual cable switch only permissible
from the marked position on the platform.
NOTE
When installing a manual cable switch, you must attach the cable with socket under
the vehicle loading area so that the cable can be connected to the manual cable
switch.
Lead Pin Leads manual cable switch
with 3 buttons with 2 buttons
14white -
25green -
3 6 black yellow
4 3 yellow red
ye/gn 2 red green/black
Table: 2 Socket connection
