Establishing electrical connections
8 Establishing electrical connections
To electrically connect your tail lift, use the supplied PALFINGER
Tail Lifts electrical circuit diagram and the vehicle maker's attach-
ment guidelines. You will find the respective PALFINGER Tail Lifts
electrical circuit diagram in the electrical unit on the circuit board.
The following steps are required:
• establish connection to vehicle battery (see chapter 8.1 on page
36),
• install and connect optional control unit (see chapter 8.2 on page
38),
• mount control panel holder (see chapter 8.3 on page 38),
• connect optional hand cable switch (see chapter 8.4 on page 39),
• connect optional remote control (see chapter 8.4 on page 39).

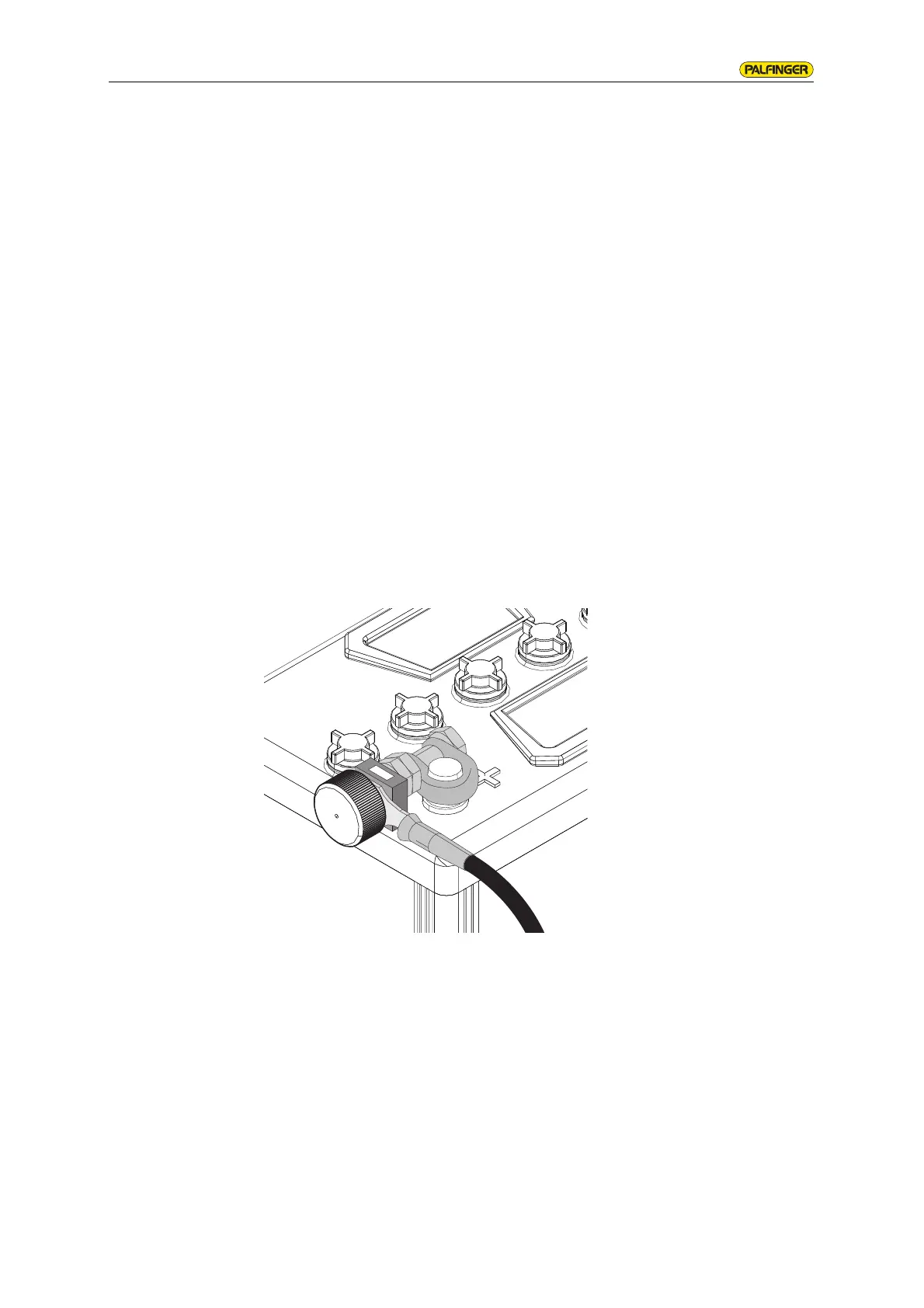

8.1 Establishing connection to vehicle battery
Lay the plus battery cable to the battery. Shorten as required.
Attach the cable lug to the battery cable.
Attach the main fuse with the cable lug and connect the battery
cable to the battery plus terminal.
