47
Installing and connecting the platform

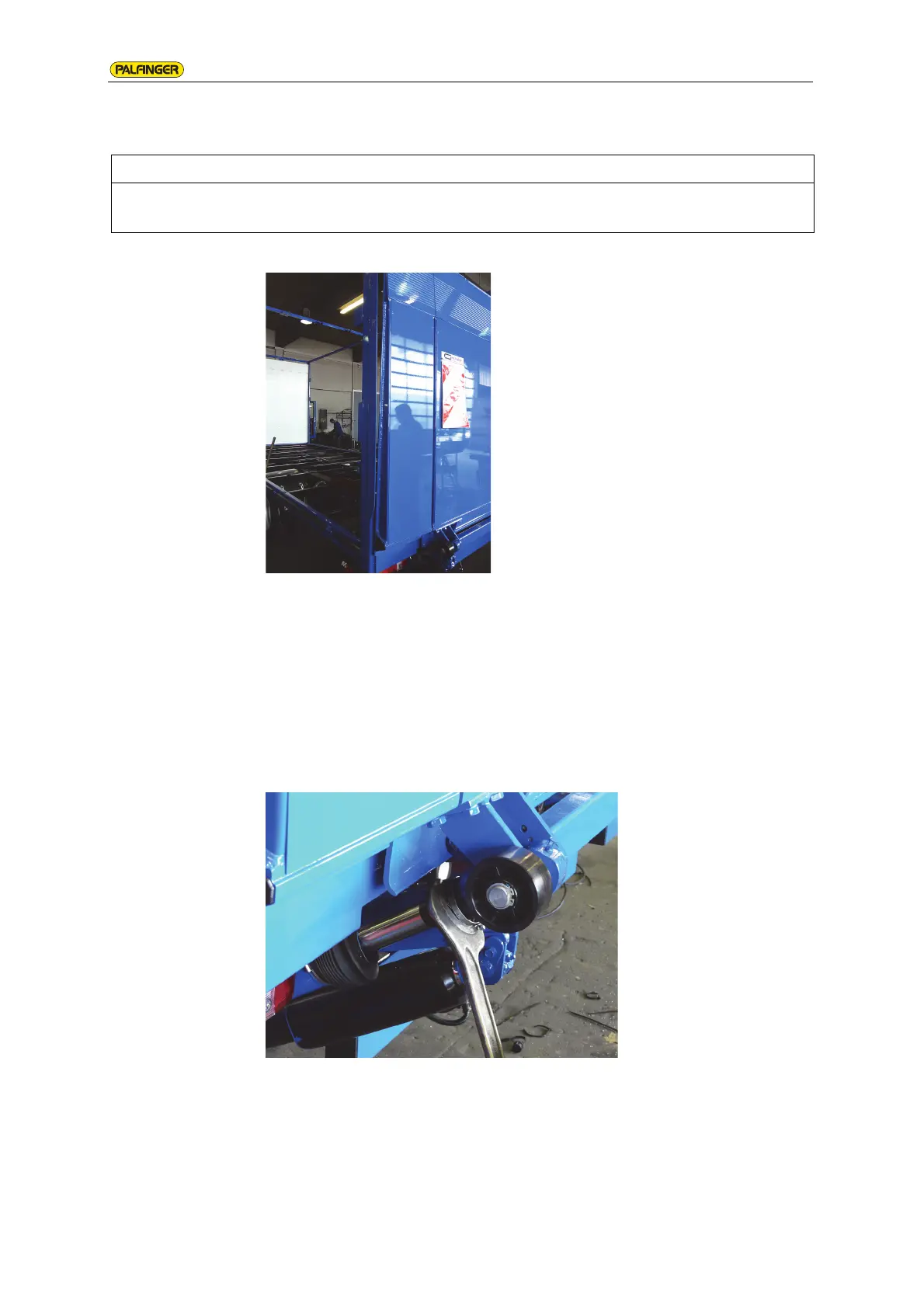

9.4 Adjusting the tilt cylinder
Close the platform to the extent possible. The tilt cylinder is
extended to the stop.
Release the tilt cylinder via the "Open" rotary switch.
Move the platform to the desired end position. To do this, turn the
piston rod with a wrench.
Repeat the adjustment process if required, until the platform has
reached the desired position.
Release the tilt cylinder by opening the platform.
Tighten the locking nut on the piston rod as per the PALFINGER
Tail Lifts assembly diagram.
Pull the bellows back over the piston rod and secure it with the
clip.
NOTE
At the desired end position of the platform, the tilt cylinder must be extended to the
stop.
