46
Installing and connecting the platform
Bolt the tilt cylinder to the platform. Use the spacer discs supplied
to align the cylinder with the control rod.
Push the bolt through completely.
Put the lug on the bolt. Use a hammer to knock in the lug as far
as it will go. Turn the lug to the screw-on position.
Screw on the lug with the M12 screw.
Observe the torque of 75 Nm.

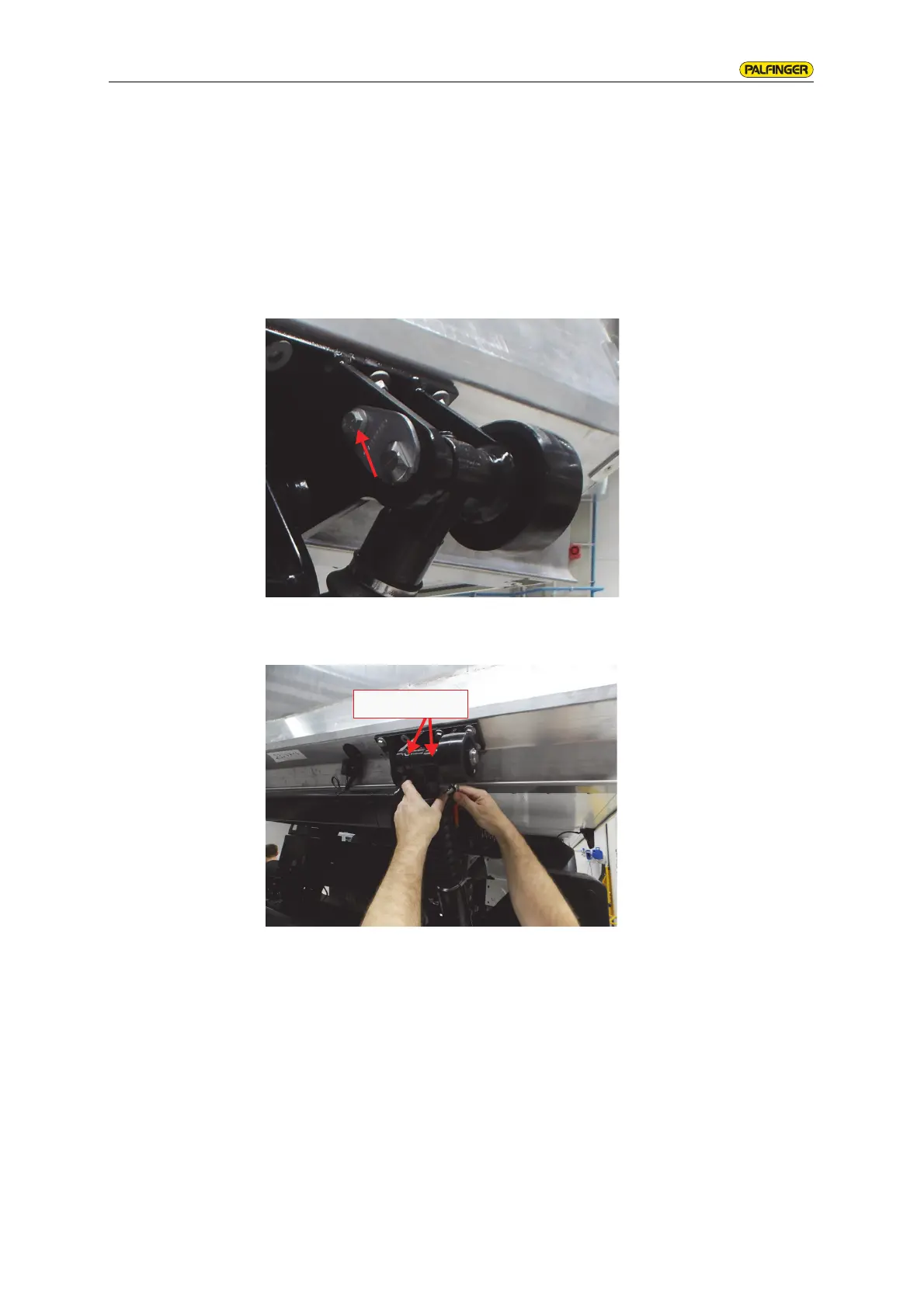

Mount the floor roller and secure the pin with a snap ring.
Move the lifting mechanism via the lift cylinder to the upper stop.
Remove the lifting equipment.
