Palfinger MBB C 750 S - Installation with Attached Platform

32
Installing lifting mechanism
7.2 Installation with attached platform
The following steps are required when installing with premounted
platform:
• position lifting mechanism under the vehicle (see chapter 7.2.1
on page 32),
• mount the platform on the lifting mechanism (see chapter 7.2.2
on page 33),
• mount auxiliary device (see chapter 7.2.3 to page 33),
• position and fix platform (see chapter7.2.4 on page 34),
• install lifting mechanism (see chapter 7.2.5 on page 35),
• remove auxiliary device (see chapter 7.2.6 on page 35).
7.2.1 Positioning lifting mechanism under the vehicle

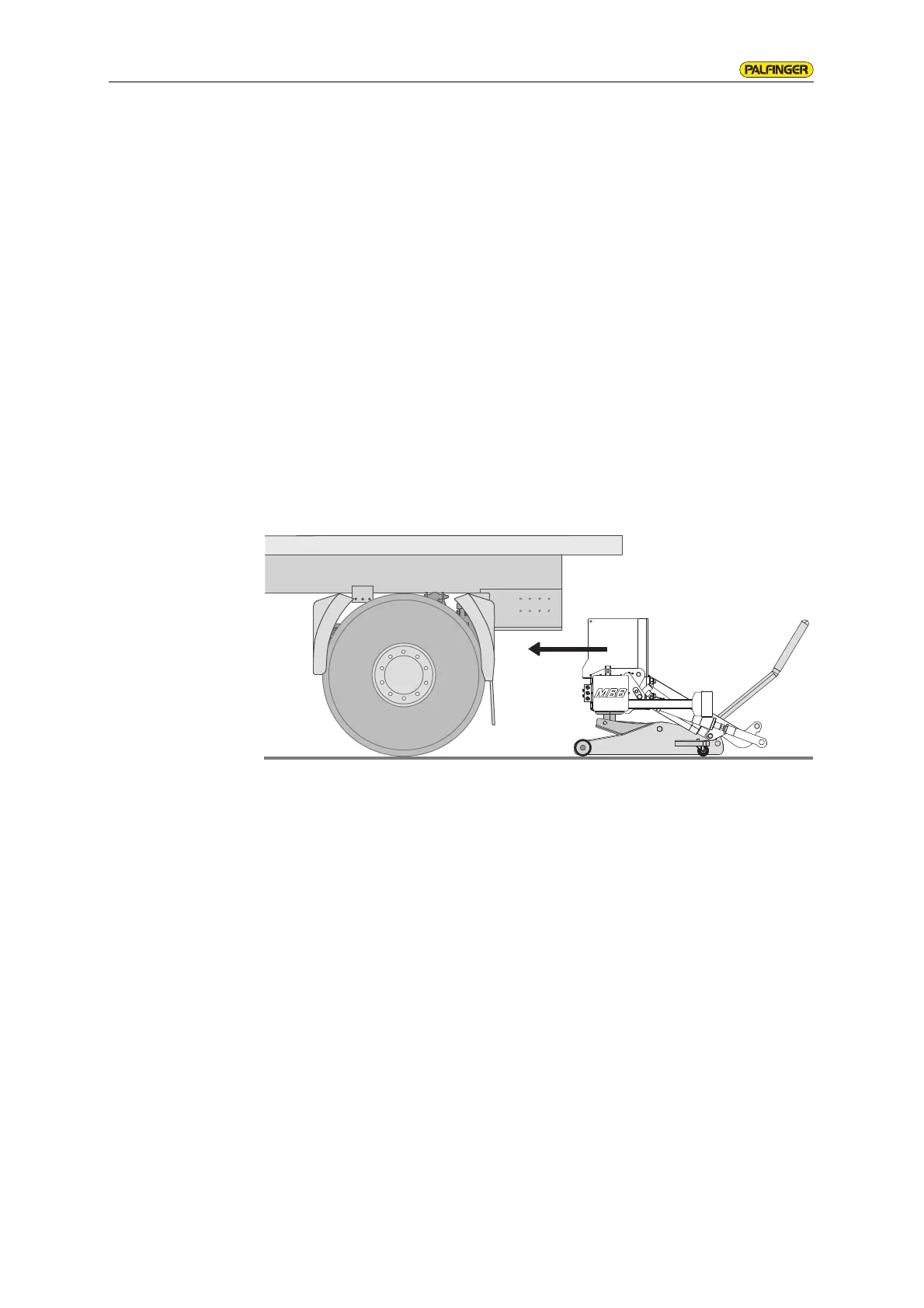

 Raise the lifting mechanism with suitable lifting equipment such
as a trolley jack, for example.
 Carefully position the lifting mechanism under the vehicle.
