Installing and connecting the platform
9.3 Bolting the platform to the first tilt cylinder
Depending on your tail lift model, you will need to bolt one or two tilt
cylinders to the platform. If your tail lift is equipped with two tilt cyl-
inders, you should initially only bolt one tilt cylinder to the platform.
Inserting the air
filter (option)
Depending on the hydraulic unit manufacturer, you will have remove
the plug screw of the oil tank and replace with an air filter, before you
can bolt the platform to the first tilt cylinder.

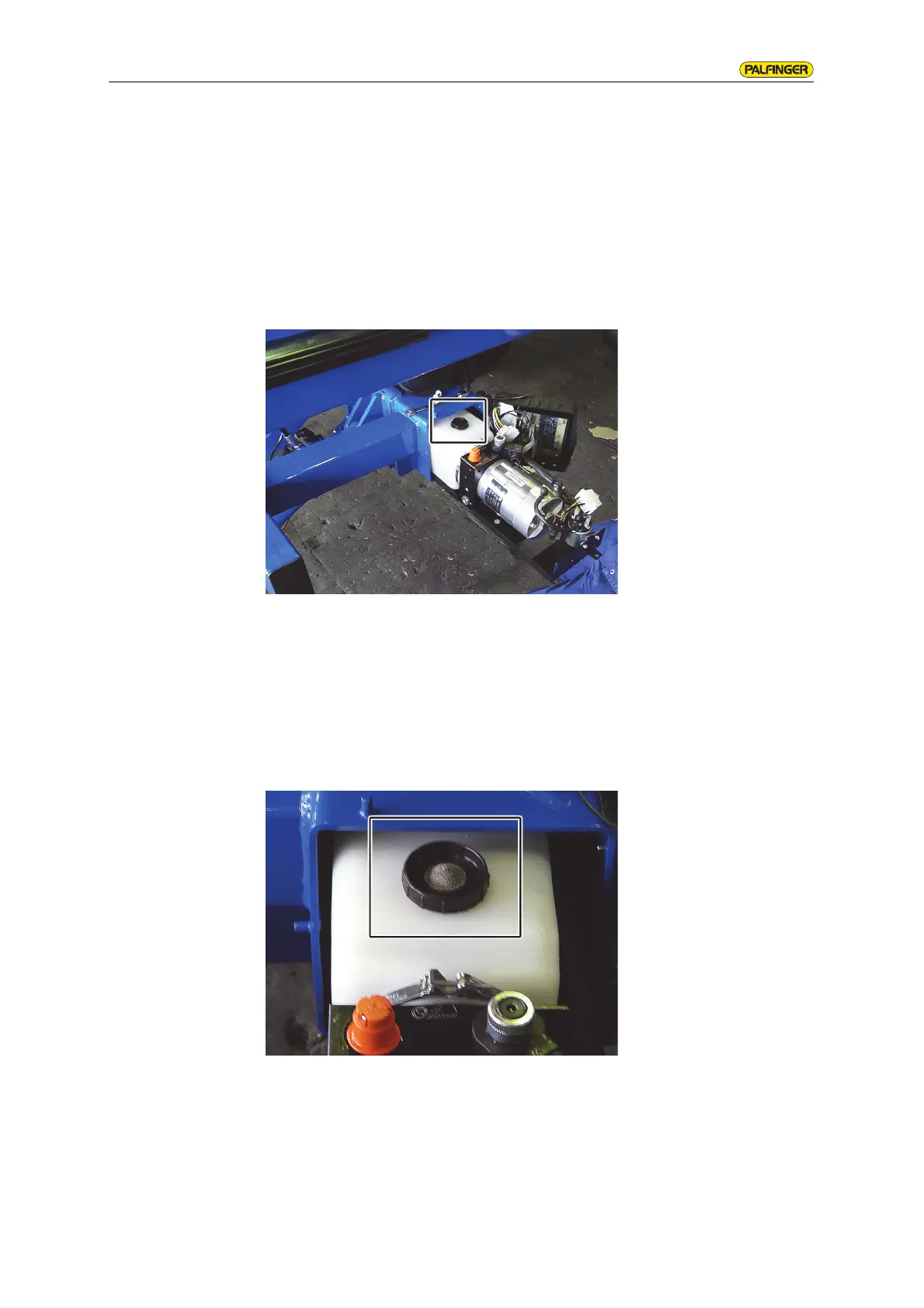

A slide-in unit is shown in the image. The air filter is inserted in a
similar way for turning, box and universal units.
Open the sealing cap on the hydraulic unit and carefully pull the
hydraulic unit out.
Remove the oil tank screw plug.
Insert the enclosed air filters.
