45
Installing and connecting the platform
Slide the hydraulic unit back in, close the sealing cap and secure
this with the clip.
Then check whether the hydraulic unit is correctly connected.
Refer to the enclosed hydraulic circuit plan.
Bolting the platform
to the tilt cylinder
Detach the bellows hose clamp and slide the bellows down.

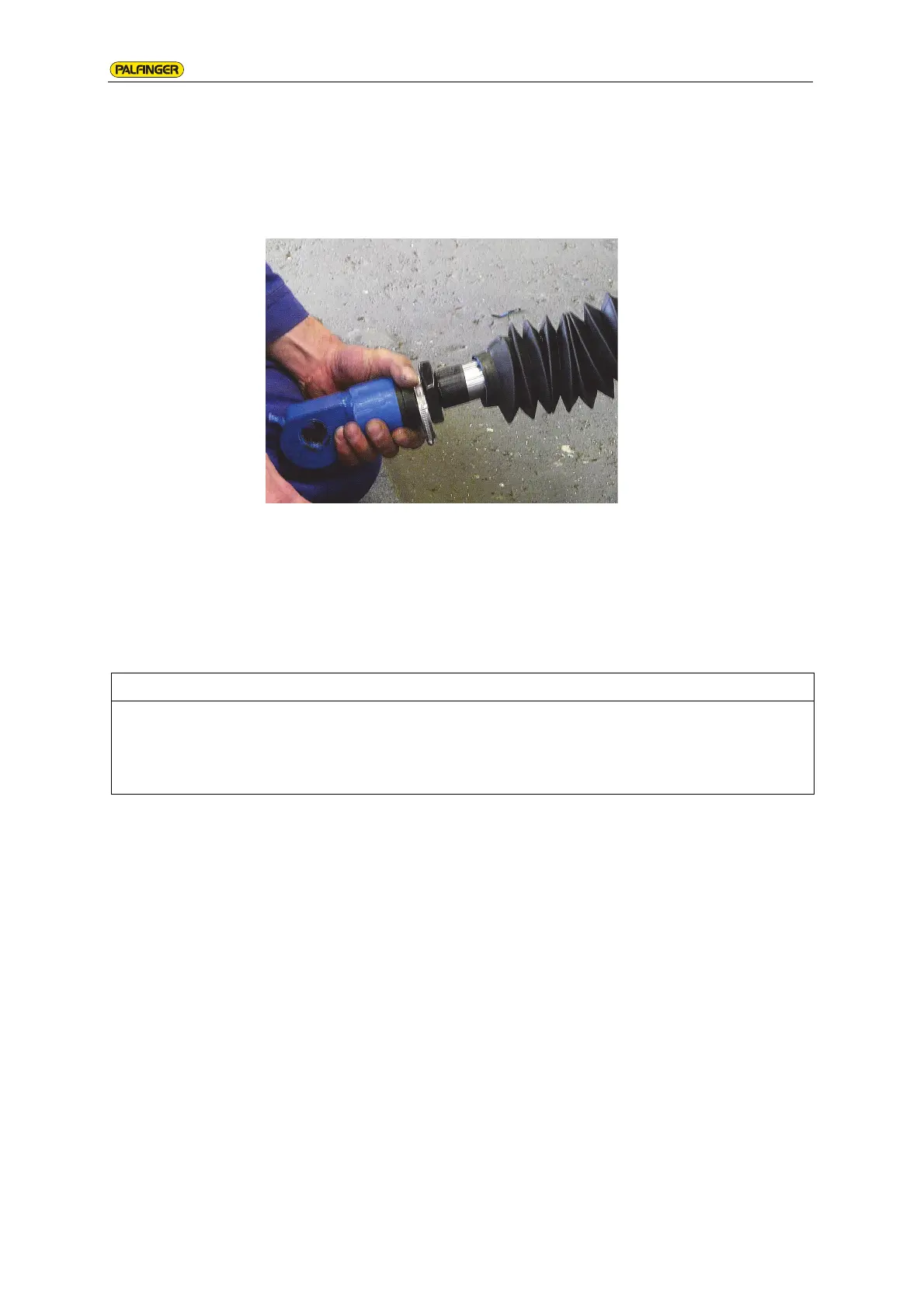

Turn the rod end of the tilt cylinder on the piston rod as far as it
will go (clockwise).
Adjust the tilt cylinder length so that it possible to easily bolt the
tilt cylinder to the platform.
NOTE
To do this actuate the rotary switch for "Open" or "Close", at the same time holding
the tilt sensor b15 or b16 with the cable pointing downwards (not necessary with
"Basic" controller). Hold the tilt sensor b15s with the cable outlet to the right and the
snap-in bracket to the front.
