54
Adjusting and testing installed tail lift
10.6 Attaching warning strips and type plate
The scope of delivery of all PALFINGER Tail Lifts tail lifts includes
two warning strips. The warning strips are mounted according to the
enclosed "Assembly instructions for warning strips" (drawing no.
92-597.99-00.00-00).
Mount the warning strips according to the enclosed assembly
instructions on the PALFINGER Tail Lifts tail lift.

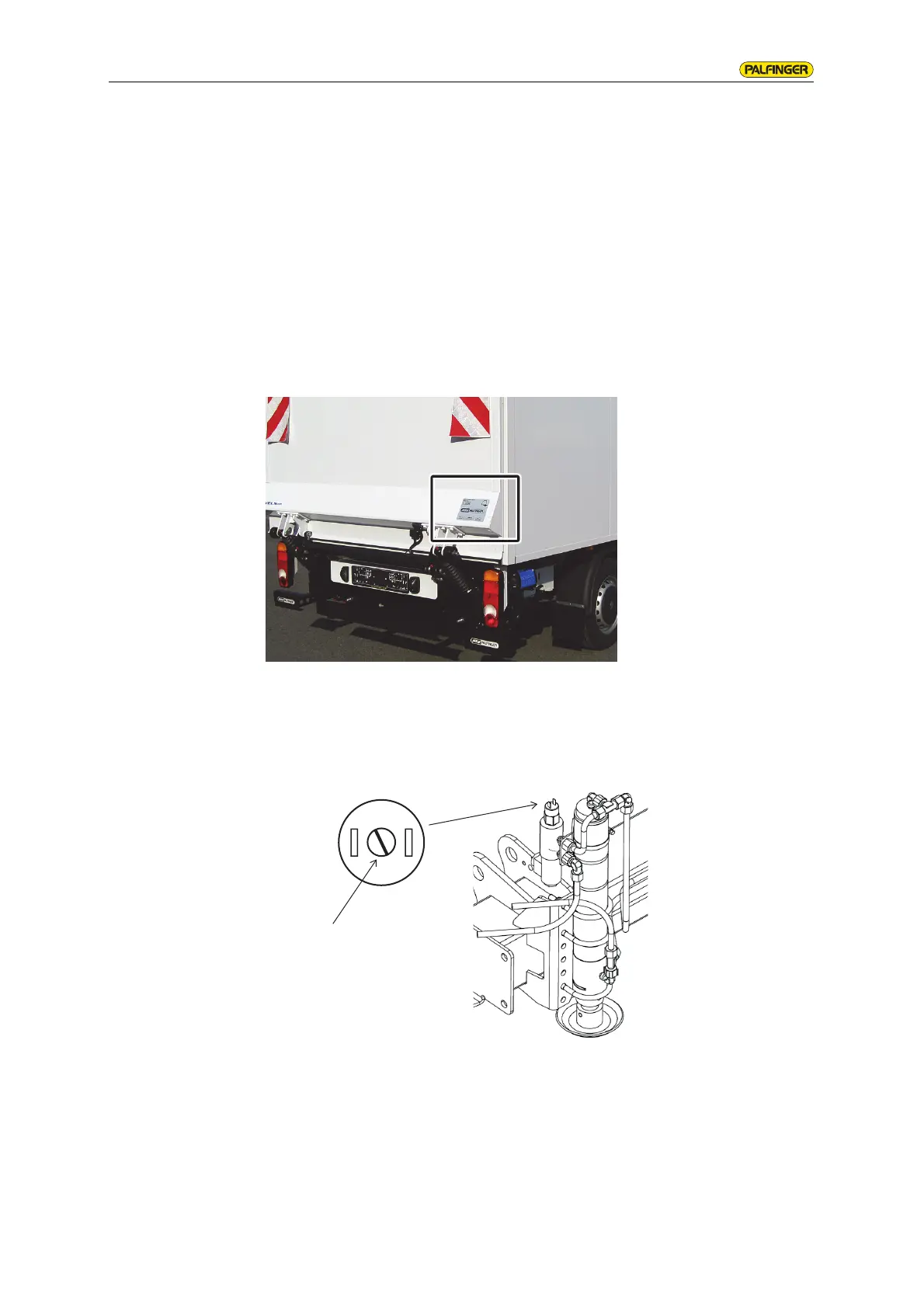

Clean and degrease the surface for the type plate at the bottom
right of the platform.
Glue the supplied type plate to the platform.
Glue the test plaque on a prominent place.
10.7 Adjusting the optional pressure switch of the
hydraulic support
If the hydraulic support raises the vehicle too high or the props do
not reach the ground, the pressure switch of the support can be ad-
justed.
The grub screw on the pressure switch must be turned for this pur-
pose.
Turn grub screw
(Adjustment range from 20 – 50 bar)
- Increase pressure in clockwise motion
- Reduce pressure in anti-clockwise motion
