49
Installing and connecting the platform
9.7 Installing tilt sensors

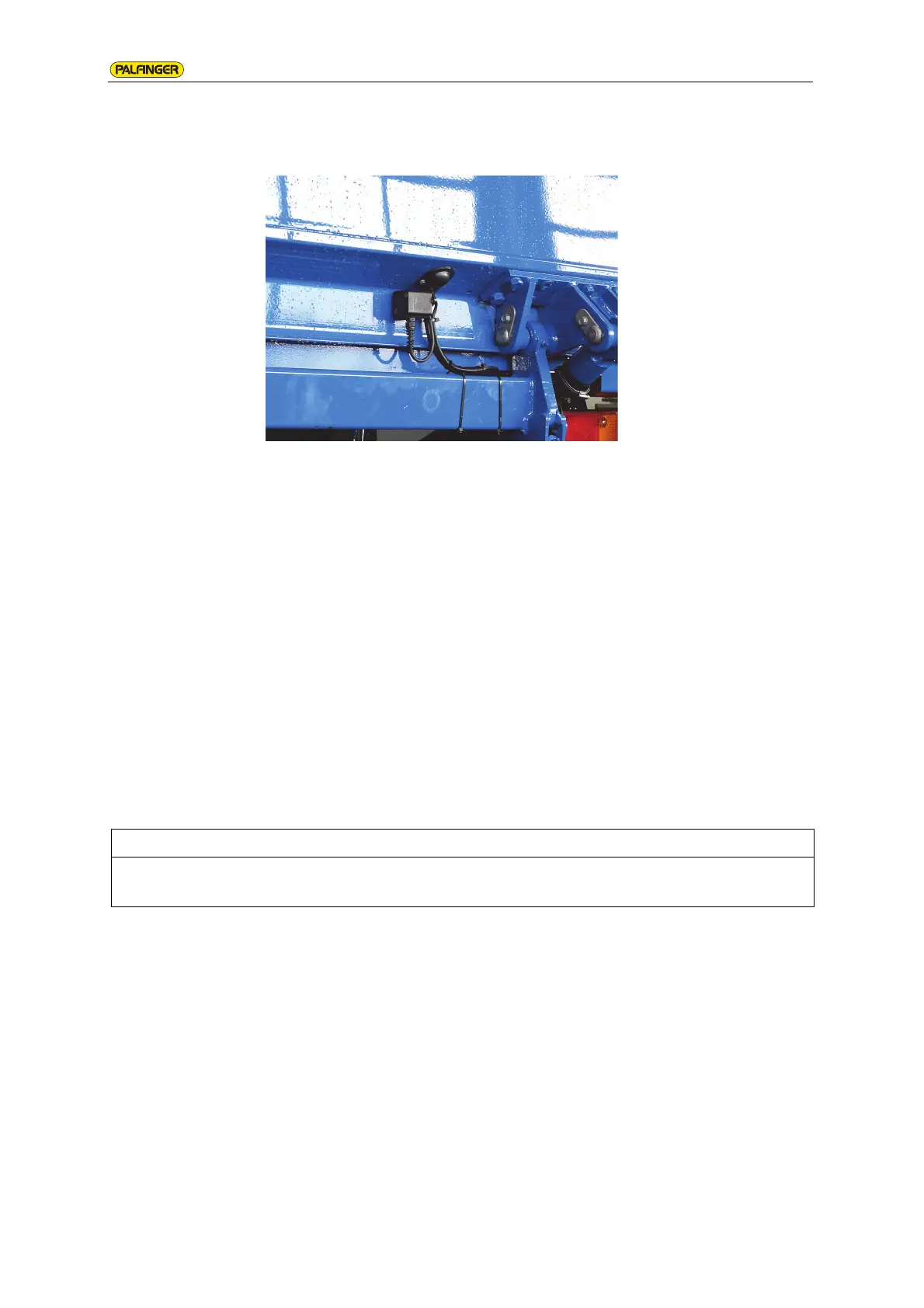

A tilt sensor b15 is shown in the image. The tilt sensor b16 is also
mounted with the cable downwards.
Proceed as follows for b15 and b16:
Mount the tilt sensors as shown on the right of the platform.
Feed the cables through the openings. Bundle up cables that are
too long and secure these with cable binders.
Connect the cables and pull them back to the right length.
Fix the sensor to the platform.
Observe the torque of 5 Nm.
Lay a loop for strain release.
Secure the cables with cable binders.
NOTE
With a b15s only the tilt sensor has to be plugged into the mating connector on the
platform.
