48
Installing and connecting the platform
9.5 Bolting the platform to the second tilt cylinder
(apart from the types DUO and 1000 E)
If you have bolted the platform to the first tilt cylinder, you can now
bolt it to the second tilt cylinder. The second tilt cylinder is installed
as described in chapter 9.3 on page 44.

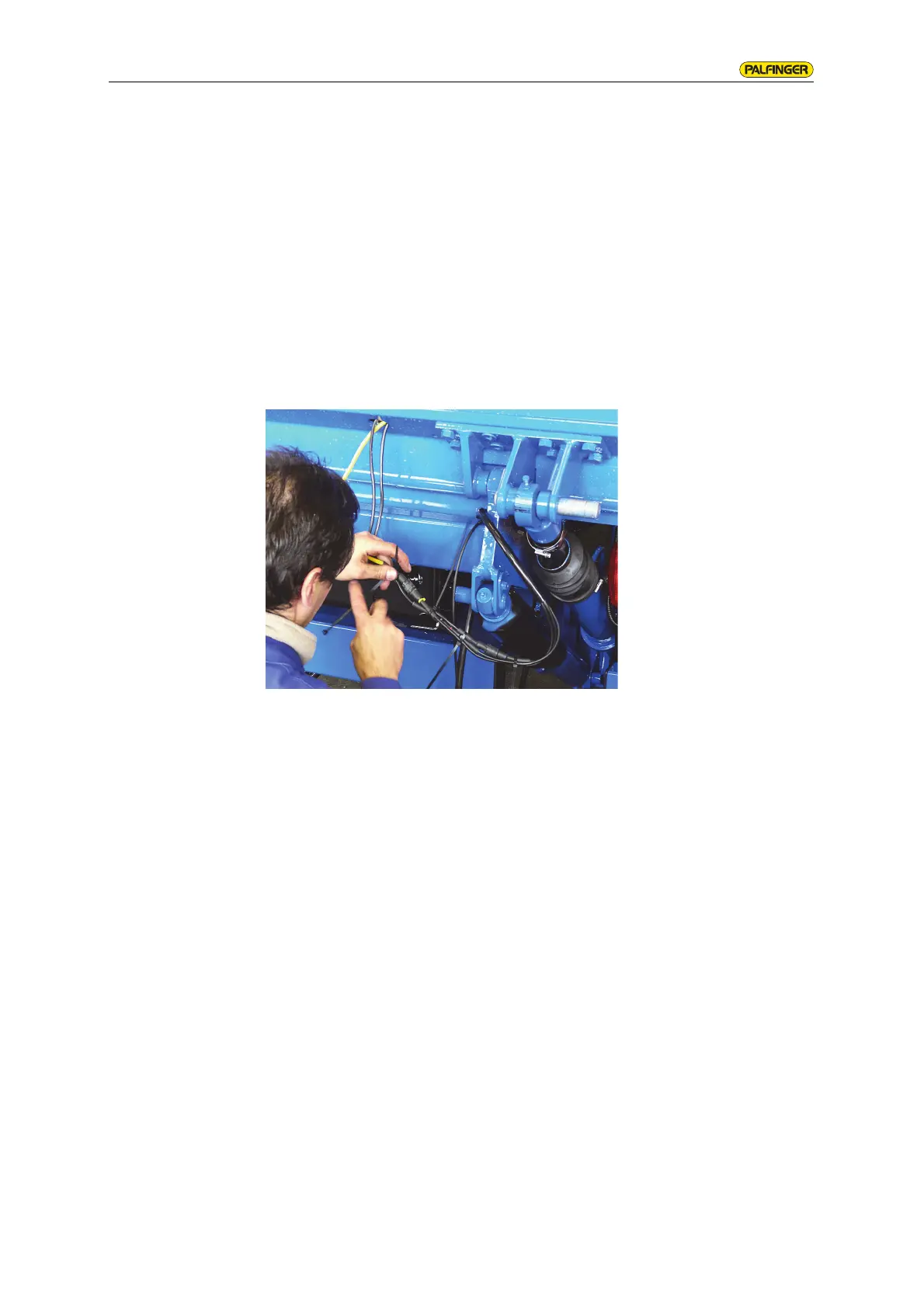

9.6 Connecting plug for foot-operated switch and
Warnfix
Connecting the plug for foot switch and Warnfix is necessary for tilt
sensors b15 and b16.
Detach the strain relief.
Pull the cables for the foot-operated switch and the Warnfix from
the platform.
Connect the plugs with the plugs that come from the control rod.
Make sure that colour-coding of the plugs match.
Stow the connected cables again in the tailgate.
Reconnect the strain relief.
Make sure that the attached cables are carefully laid and
securely fastened. Make sure that bending lengths are sufficient.
