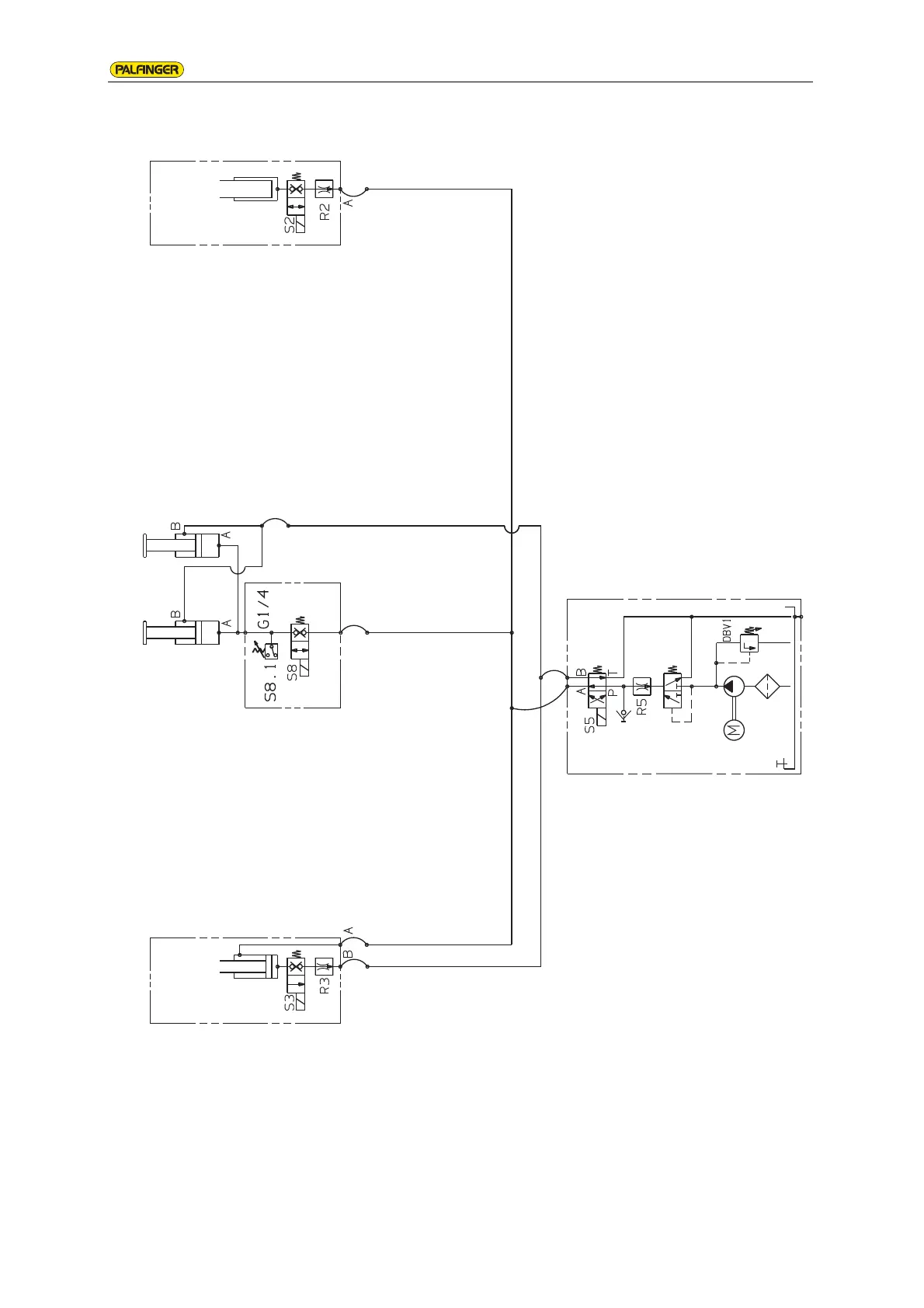

Hydraulic circuit diagrams
12.5 Tail lifts with hydraulic support MBB C 750 L C 1000 L
Support cylinder
TILT CYL. LIFT CYL.
Pressure switch S8.1 adjusted to 20 bar
