1. Airflow Direction Manual
By pressing the remote control airflow direction setting switch, the blade will move to the indicated angle (1, 2, 3, 4, 5) as shown
in the table. When the remote control OFF/ON switch is pressed, the blade will move to the Close position.
2. Airflow Direction Auto

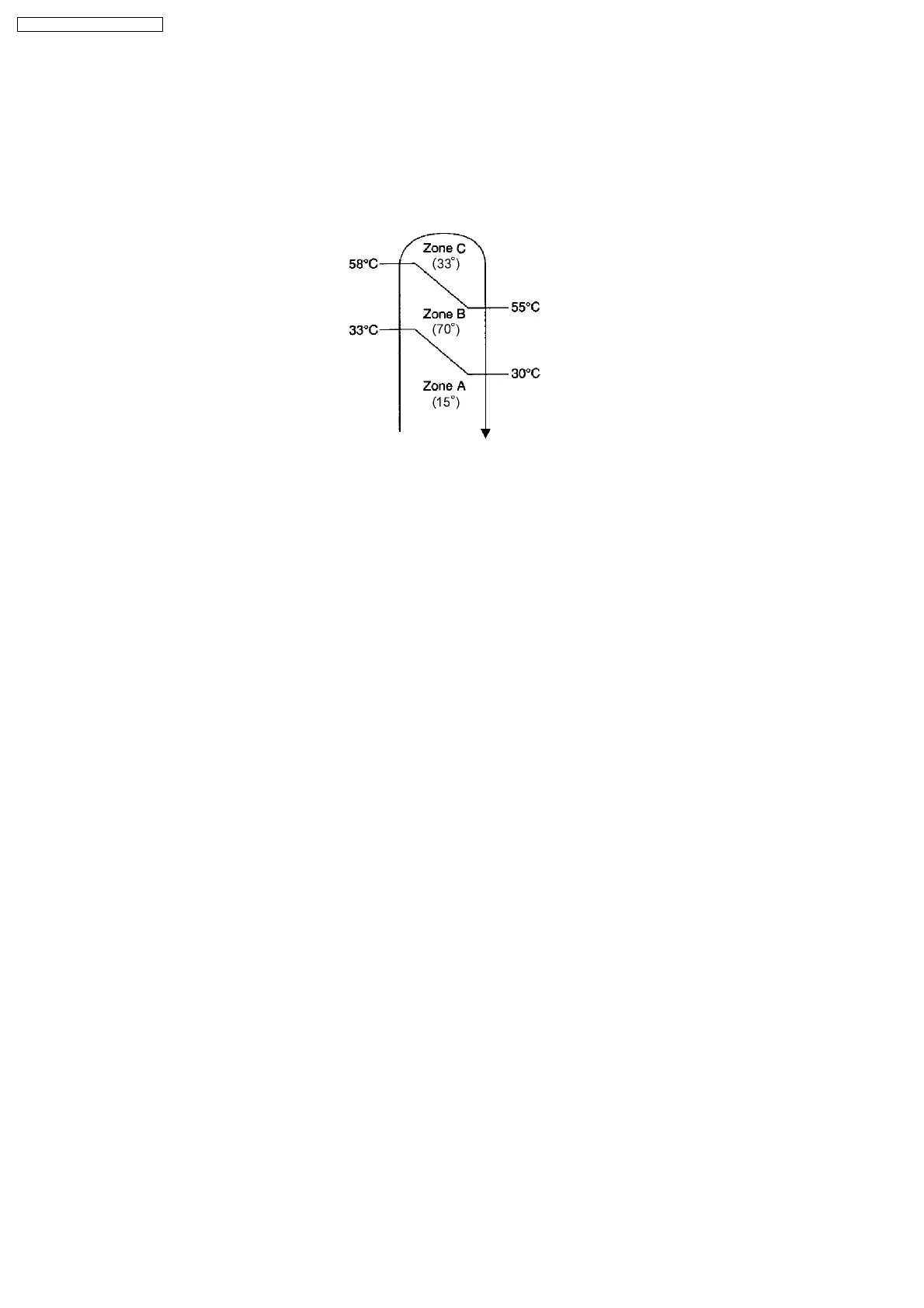

By setting the airflow direction to AUTO, the blade swings up and down from 7°-36° (during Cooling and Fan) and 3°-33° (during
Soft Dry). During Heating operation, the blade angle will shift according to the indoor heat exchanger temperature as shown
below:
30
CS-MVG103KE / CU-MVG153KE
