12.4. DISASSEMBLY OF PARTS
12.4.1. Indoor Control Board removal Procedure

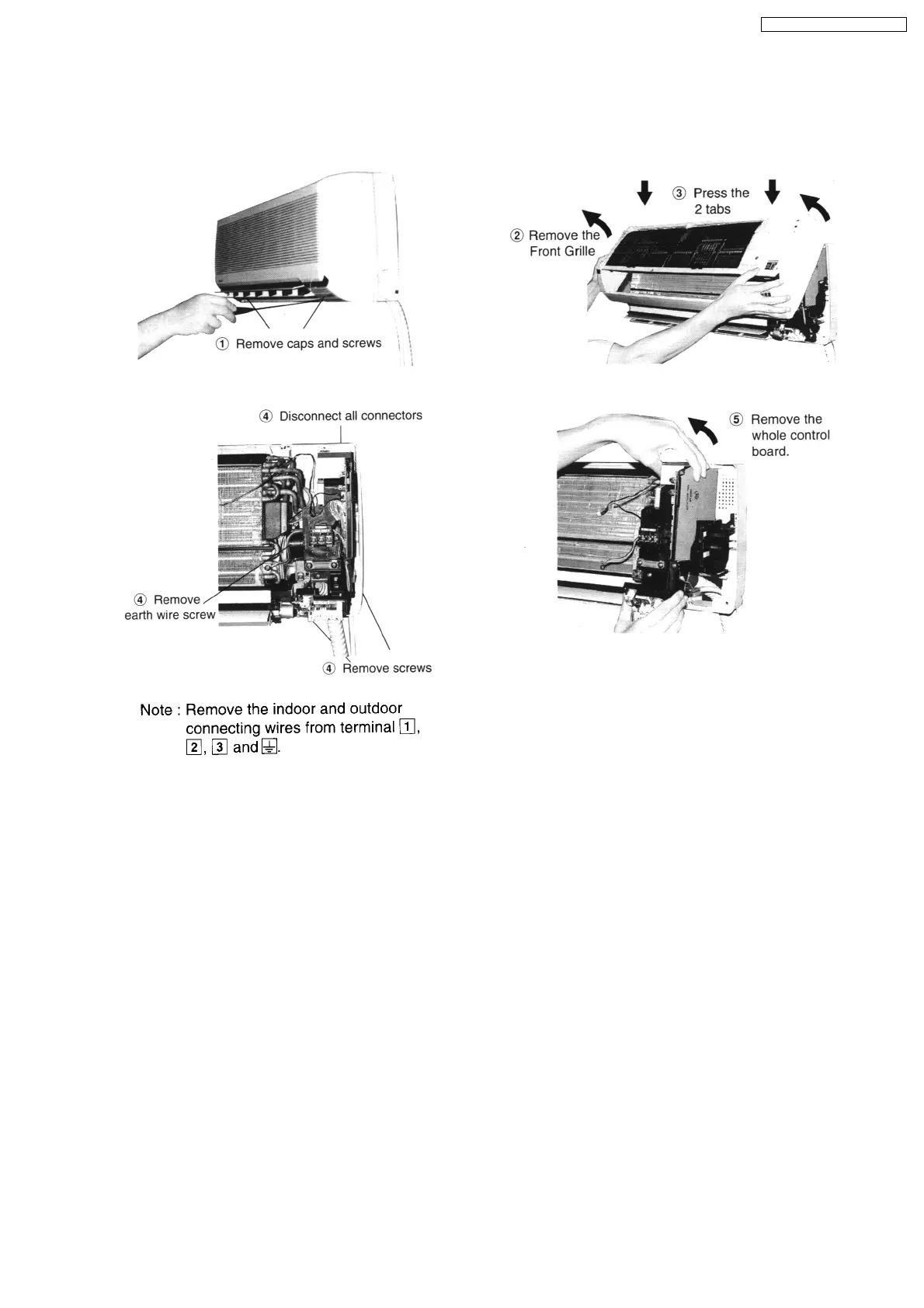

1. Remove the Front Grille
Fig1
Fig2
2. Remove the Indoor Control Board.
Fig3
Fig4
61
CS-MVG103KE / CU-MVG153KE
