8.10. OUTDOOR FAN CONTROL
·
Outdoor fan motor is controlled with 1 speeds. Fan is in operation when the compressor starts operation and stops 30 seconds
after compressor stops operation.

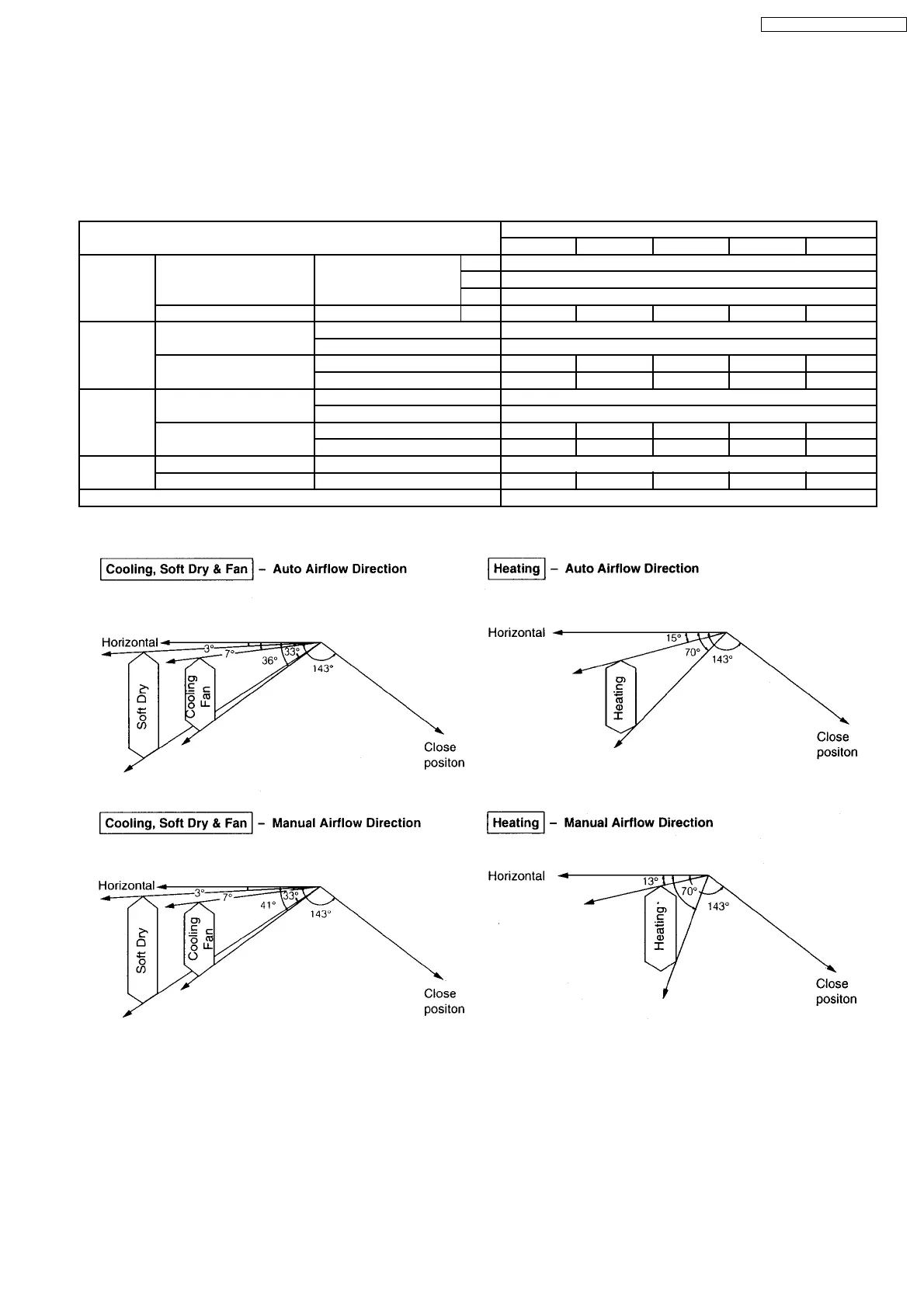

8.11. AIRFLOW DIRECTION
·
Blade angle setting (Upper limit reference)
Operation Blade angle
1 2 3 4 5
heating Airflow direction auto Indoor heat exchanger
temperature
C 33°
B 70°
A 15°
Airflow direction manual - - 13° 33° 46° 57° 70°
Cooling Airflow direction auto - 7° - 36°
Anti-dew formation control 11° - 25°
Airflow direction manual - 7° 15° 25° 33° 41°
Anti-dew formation control 11° 15° 18° 22° 25°
Dry Airflow direction auto - 3° - 33°
Anti-dew formation control 11° - 25°
Airflow direction manual - 3° 8° 18° 25° 33°
Anti-dew formation control 11° 15° 18° 22° 25°
Fan Airflow direction auto 7° - 36°
Airflow direction manual - 7° 15° 25° 33° 41°
Stop 143°
·
Sitting angle
29
CS-MVG103KE / CU-MVG153KE
