Panasonic CZ-KPY3A series Service Manual

1
1-391
5-8. External Static Pressure Setting for AC Fan Motor Model
To apply to following models
S-36PN1E5A , S-45PN1E5A , S-50PN1E5A
There are two tap connector located in indoor unit control box can be selected.
The “blue connector” is standard tap, use-as-is at shipment.
For high static pressure duct, switch Fan Motor connector to plug in
boost tap “white connector” to elevate air volume.
0
10
20
30
40
50
60
70
80
188
0
10
20
30
40
50
60
70
80
2010

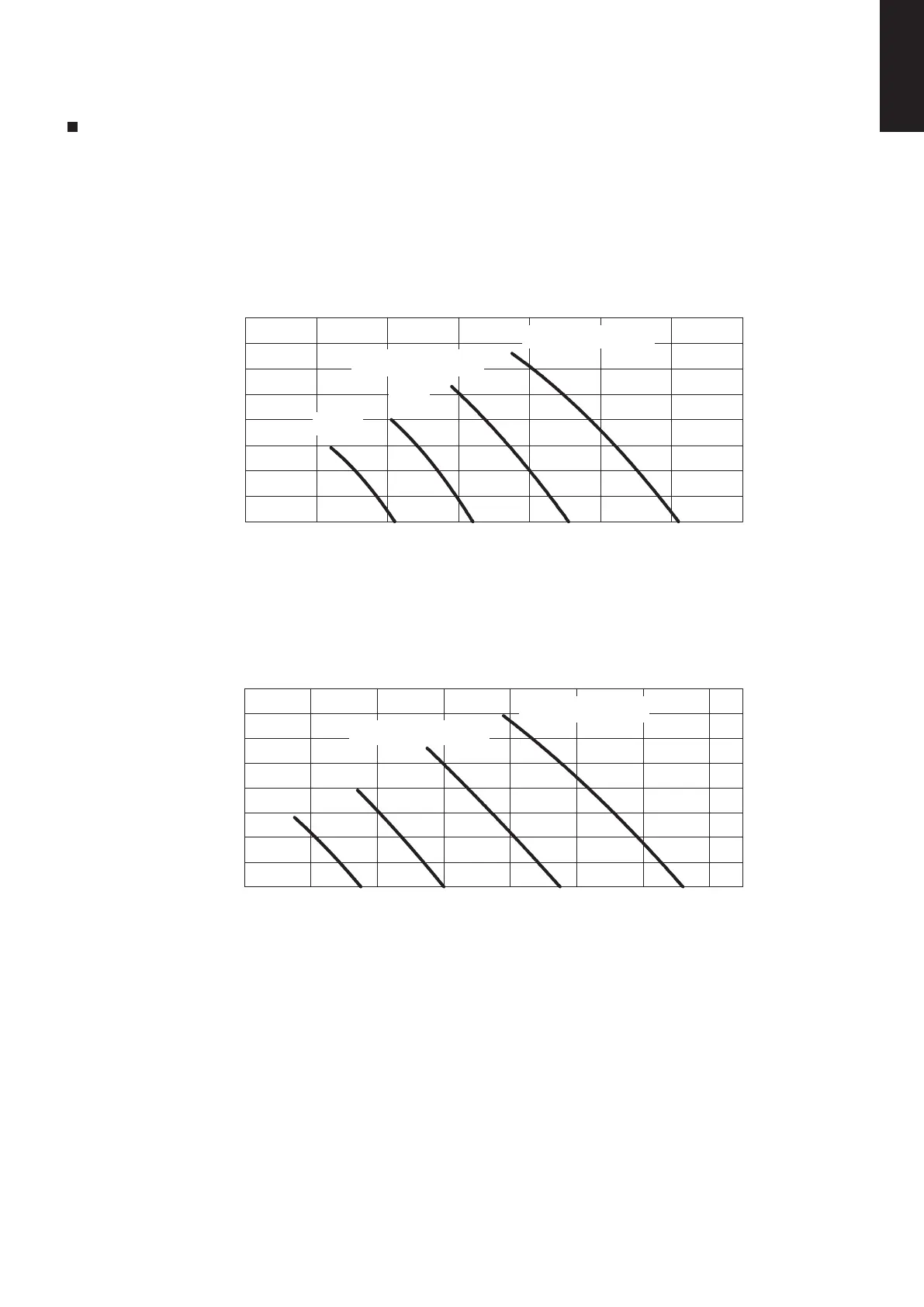

P-Q CURVE
External Static Pressure (Pa)
Air Volume (m
3
/min.)
Lo
S-36PN1E5A
P-Q CURVES-45PN1E5A, S-50PN1E5A
Me
standard tap Hi
boost tap SHi
Lo
Me
standard tap Hi
boost tap SHi
External Static Pressure (Pa)
Air Volume (m
3
/min.)
