Panasonic CZ-KPY3A series Service Manual

6-5
6
*2: 7-segment, 4-digit display for remote controller timer display

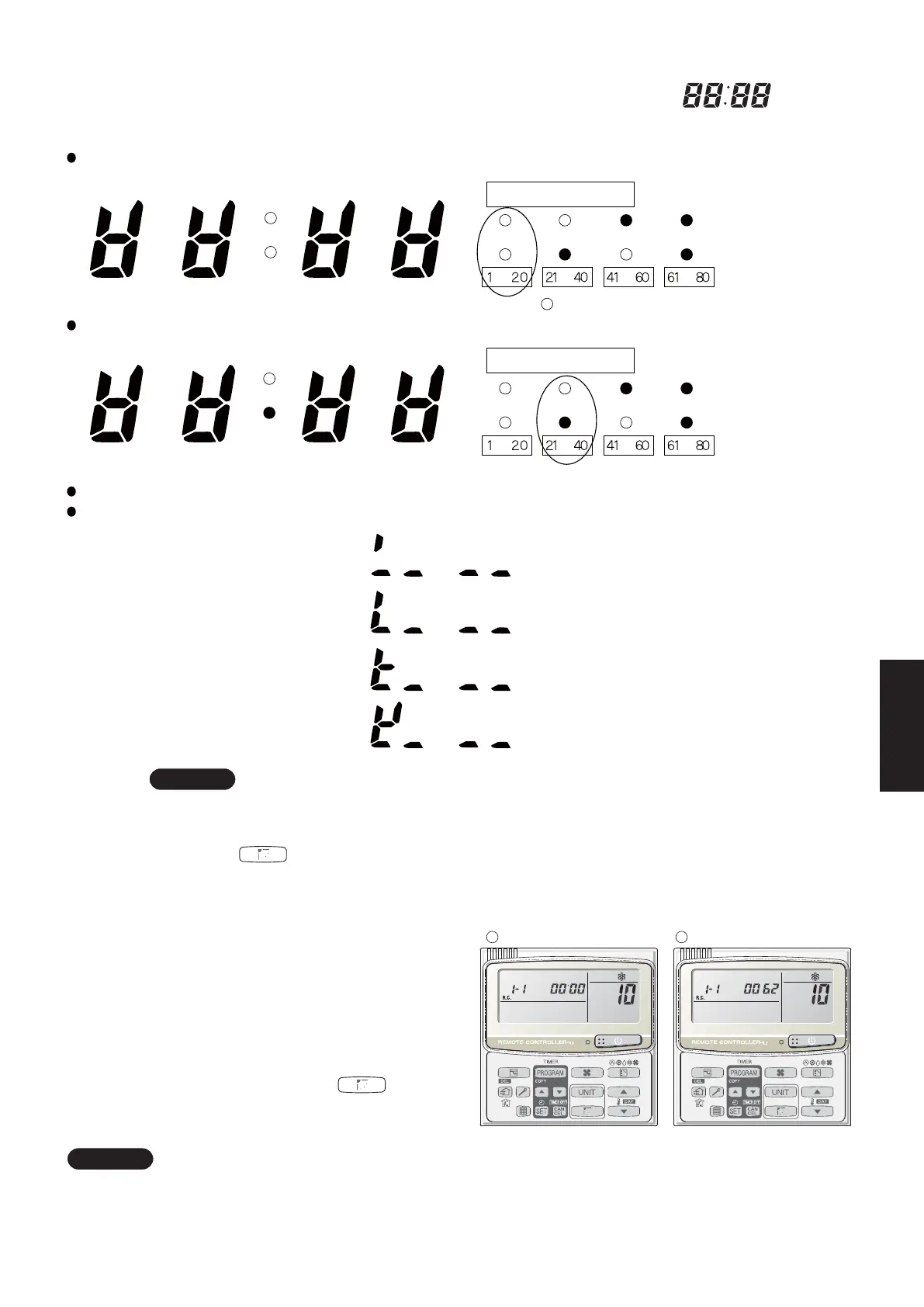

The connected unit Nos. are displayed as shown below, using the 7-segment 4-digit (
) display and
the colon.
—
————
———
1
712172
813138
914149
510 1520
61116
21
22 27 32 37
83333228
93434229
25 30 35 40
631362
NOTE
The colon display (Unit Nos. 1 – 20, 21 – 40) changes automatically every 10 seconds.
(The display does not change if higher unit numbers do not exist.)
Pressing the button switches the display immediately to the next higher level, even if 10 seconds
have not passed.
BA
*3: The total compressor operating time is displayed
(in 1-hour units) using 8 digits.
When the fi rst 4 digits are displayed, the top
point of the colon is lit.
When the last 4 digits are displayed, the colon
points are not lit.
The display of the fi rst 4 and last 4 digits
changes automatically every 10 seconds. It can
also be changed by pressing the button.
•
•
•
NOTE
With the outdoor unit maintenance remote controller (when connected to the outdoor unit), the unit remote controller
check functions will not operate.
Display for unit Nos. 1 – 20
Not lit
Lit
Not lit
Lit
Not lit
Lit
Not lit
Lit
Meaning of display colon
is not displayed.
Meaning of display colon
Display for unit Nos. 21 - 40
Not lit
Lit
Not lit
Lit
Not lit
Lit
Not lit
Lit
The meaning of the colon display changes in the same way, allowing unit Nos. up to 80 to be displayed.
Sample displays of the unit Nos. of connected indoor units
• Display of unit No. 1
• Display of unit Nos. 1 and 2
•
Display of unit Nos. 1, 2, and 3
• Display of unit Nos. 1, 2, 3, and 4
10: <Total compressor operatin time> (A) and (B) are displayed alternately.
