124
FEB 2008Ver. 1.1
DP-C405/C305/C265
2.20.1.3. VOC Filter (For Germany / Italy only with DQ-M35S72-PM) : DP-C354 Series Only

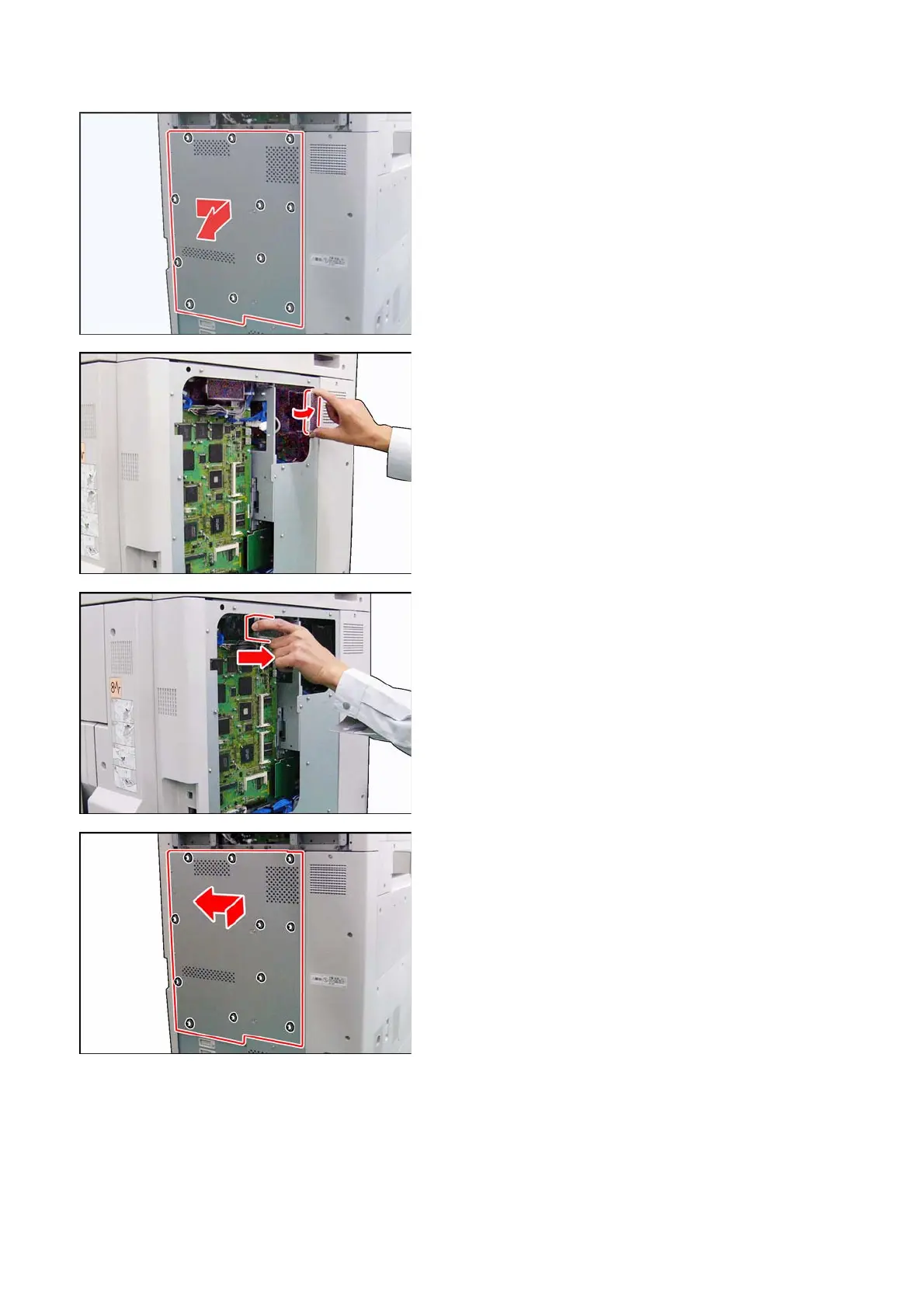

(1) Loosen 11 Screws (S6).
(2) Remove the Rear Cover Assembly.
(3) Remove the IH VOC Filter (3927) by turning to
the right.
(4) Install the New IH VOC Filter.
(5) Remove the Toner VOC Filter (3928).
(6) Install the New Toner VOC Filter.
(7) Reinstall the Rear Cover Assembly.
To Next Page
