159
FEB 2008Ver. 1.1
DP-C405/C305/C265
SC PCB - CN5 (DP-C405 Series Only)
Image Memory Board I/F
SC PCB - CN75 (DP-C354/C322 Series Only)
Image Memory Board I/F
SC PCB - CN6 (DP-C405 Series Only)
Image Memory Board I/F
SC PCB - CN76 (DP-C354/C322 Series Only)
Image Memory Board I/F
SC PCB - CN9 (DP-C405 Series Only)
SD Memory Card I/F
SC PCB - CN77 (DP-C354/C322 Series Only)
SD Memory Card I/F
SC PCB - CN78
Main Memory Board I/F
SC PCB - CN79 (DP-C354/C322 Series Only)
Image Memory Board I/F
CN74-35 ATA0 HDD HDD Address Bus
CN74-36 ATA2 HDD HDD Address Bus
CN74-37 ATCS1 HDD
Primary HDD Selection
Signal
CN74-38 ATCS0 HDD
Second HDD Selection
Signal
CN74-39 DASP HDD HDD Activation Signal
CN74-40 GND HDD Ground

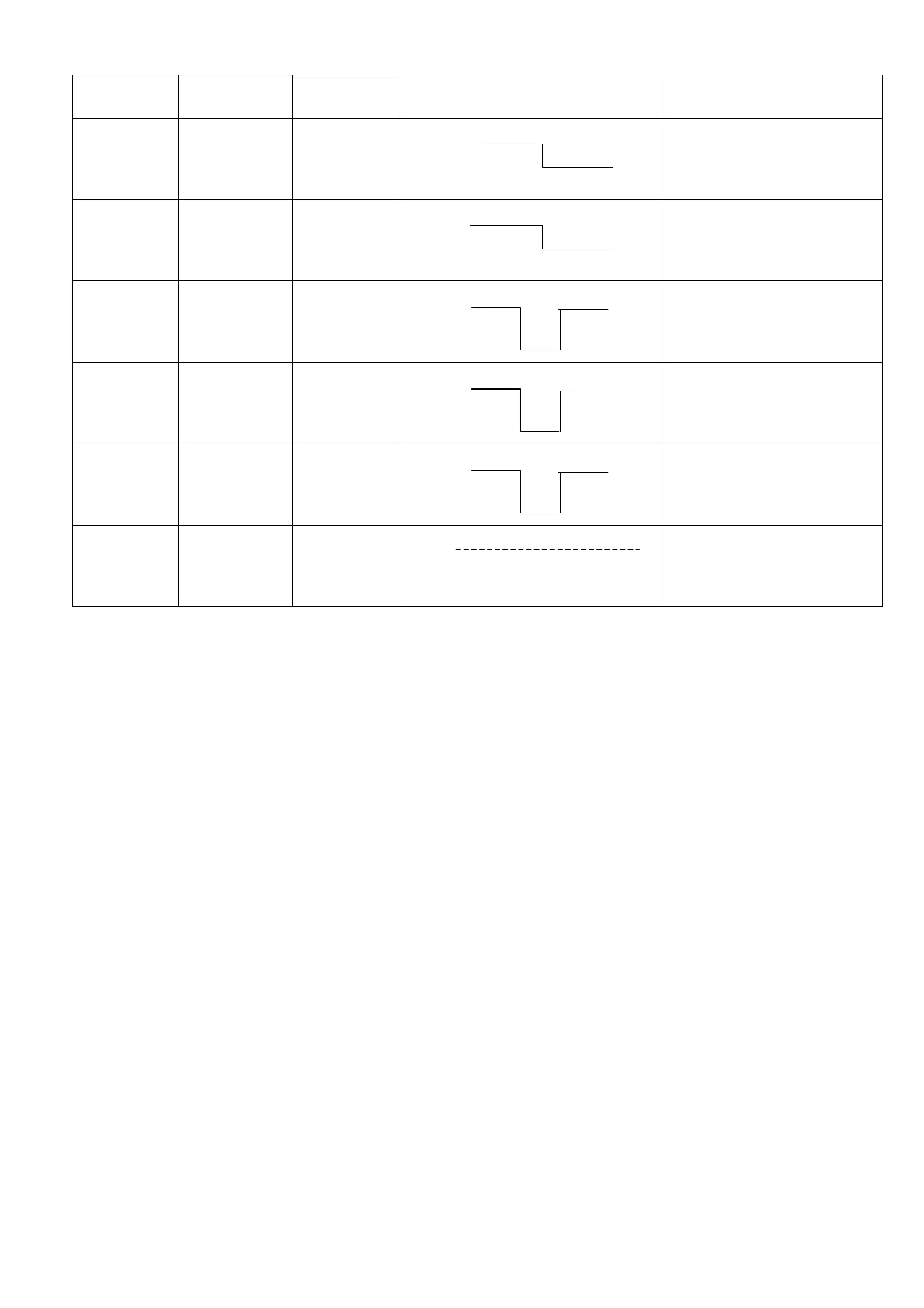

SC PCB
Pin No.
Signal Name Destination Signal Waveform Function
0V
5V
0V
5V
PULSE
5V
0V
PULSE
5V
0V
PULSE
5V
0V
0V
